Product Number: CTM1064216-2
Variations
The CTM1064216-2 is the 375 kg grade of the 106 x 42 mm captive transit mount on an M16 stud. It is a mid-weight solution for generating sets, industrial and marine engines, compressors and pump sets that need both isolation and transit restraint.
Its shear-compression rubber element achieves up to 95% vibration reduction in all axes; the metal top cap protects it from oil and fuel; the integral overload stop controls equipment movement during transport; and the captive arrangement fails safe under shock loads. Dimensions run 106 mm across the flange and 42 mm high, with 12.5 x 19 mm fixing slots at 138-146 mm centres, an 80 mm inner dimension, 171 mm free length and 4 mm base plate.
Alternative grades on this body: CTM1064216-1 (200 kg), CTM1064216-3 (500 kg), CTM1064216-4 (625 kg). The footprint and fixings are identical across the family, so grades interchange without rework.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

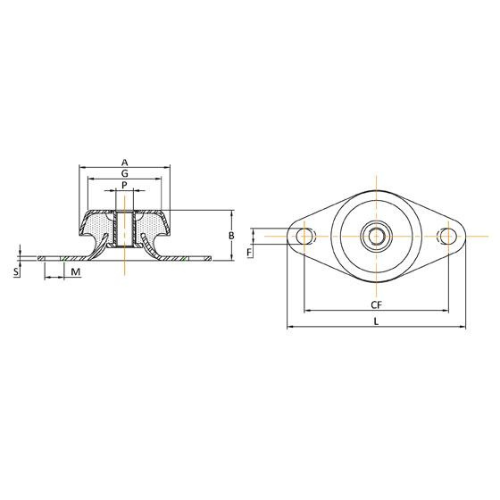

| Outer Dimensions (A) | 106mm |
|---|---|
| Flange Height (B) | 42mm |
| Thread size (P) | M16 |
| Mounting Hole Dimensions (F x M) | 12.5X19mm |
| Center Distance (CF) | 138-146mm |
| Inner Dimensions (G) | 80mm |
| Free Length (L) | 171mm |
|
, Max Load 375
|
|
| Deflection (mm) | 7mm |
| Mounting Base Thickness (S) | 3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | CTM1064212-2 | CTM1063812-60 | CTM1063816-60 | CTM1085016-45 | CTM1214216-45 |
| Type | Captive Mount | Captive Mount | Captive Mount | Captive Mount | Captive Mount |
| Deflection | 7mm | 3.5mm | 3.5mm | 3.5mm | 4.5mm |
| Thread | M12 | M12 | M16 | M16 | M16 |
A. Match the dimensions - 106 mm flange, 12.5 x 19 mm slots at 138-146 mm centres, M16 stud, 171 mm free length - to your equipment. Search PartsForMachines by the AV part number or WhatsApp our team to confirm before ordering.
A. 375 kg per mounting point for this grade.
A. The grades share the body and fixings and differ in rated load - the alternatives are CTM1064216-1 (200 kg), CTM1064216-3 (500 kg), CTM1064216-4 (625 kg). Work out the load per mounting point and pick the grade that covers it.
A. Total the equipment weight, divide by the number of mounts, and select the grade whose rating covers that per-point load: 200, 375, 500 or 625 kg. Body and fixings are identical throughout the series.
A. Yes - the metal top cap is designed to protect the rubber element from contamination such as oil and fuel.
