Product Number: CTM1085016-45

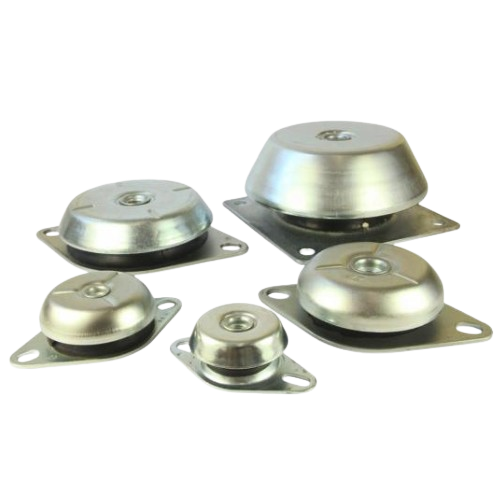

The CTM1085016-45 is the soft 45 Shore grade of the larger 108 x 50 mm captive transit mount, rated to 400 kg per point. On an M16 stud it brings transit restraint and high isolation to generating sets, diesel and marine engines, pumps and compressors in the mid-to-heavy range. It brings transit restraint and high isolation to generating sets, diesel and marine engines, pumps and compressors in the mid-to-heavy range.
Shear-compression loading of the rubber element yields up to 95% vibration reduction in all axes, and the metal top cap keeps oil and fuel off the rubber. The integral overload stop controls how far the equipment can move during transport, with the captive construction failing safe under shock loads. The mount measures 108 mm across the flange (A) and 50 mm high (B), fixes through 16.5 mm diameter holes at 160 mm centres, and has an 83 mm inner dimension (G), 190 mm free length (L) and 5 mm base (S).
Alternative grades on this body: CTM1085016-60 (600 kg), CTM1085016-70 (1500 kg). The footprint and fixings are identical across the family, so grades interchange without rework.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Outer Dimensions (A) | 108mm |
|---|---|
| Flange Height (B) | 50mm |
| Thread size (P) | M16 |
| Mounting Hole Dimensions (F x M) | 16.5mm |
| Center Distance (CF) | 160mm |
| Inner Dimensions (G) | 83mm |
| Free Length (L) | 190mm |
|
, Max Load 400
|
|
| Deflection (mm) | 3.5mm |
| Mounting Base Thickness (S) | 5mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | CTM1214216-45 | CTM1064212-2 | CTM1064216-2 | CTM1063812-60 | CTM924512-45 |
| Type | Captive Mount | Captive Mount | Captive Mount | Captive Mount | Captive Mount |
| Deflection | 4.5mm | 7mm | 7mm | 3.5mm | 4mm |
| Thread | M16 | M12 | M16 | M12 | M12 |
A. Fit is by footprint: 108 mm flange, 16.5 mm fixing holes at 160 mm centres, M16 stud, 190 mm free length. Compare against your machine base or existing mounts, search PartsForMachines by the AV part number, or WhatsApp our team.
A. 400 kg per mounting point.
A. The grades share the body and fixings and differ in rated load - the alternatives are CTM1085016-60 (600 kg), CTM1085016-70 (1500 kg). Work out the load per mounting point and pick the grade that covers it.
A. When per-point loads exceed 400 kg: the CTM1085016-60 is rated 600 kg and the CTM1085016-70 goes to 1500 kg, both on the identical 108 x 50 mm body and bolt pattern.
A. The metal top cap is designed to protect the rubber element from contamination such as oil and fuel - a practical necessity on engine and genset installations.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. WhatsApp us on 07754 288583 with photos of the item and packaging.
