Product Number: CTM1063816-60

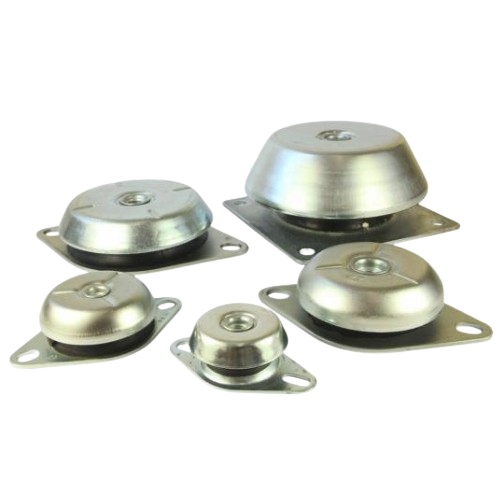

The CTM1063816-60 is the general-purpose grade of the M16-stud CTM10638 family, rated to 350 kg per mount. It combines the 106 x 38 mm captive body with 60 Shore rubber. Typical duties include generating sets, industrial and marine engines, pumps, motors, fans and compressors.
Loading the rubber in shear compression yields up to 95% vibration reduction in all axes. During transport the integral overload stop restrains equipment movement, the captive design provides a failsafe against shock loads, and the metal top cap protects the rubber from oil and fuel contamination. Dimensions: 106 mm flange, 38 mm flange height, 12.5 x 19 mm fixing slots at 138-146 mm centres, 80 mm inner dimension, 171 mm free length, 4 mm base.
Alternative grades on this body: CTM1063816-45 (250 kg), CTM1063816-70 (525 kg). The footprint and fixings are identical across the family, so grades interchange without rework.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Outer Dimensions (A) | 106mm |
|---|---|
| Flange Height (B) | 38mm |
| Thread size (P) | M16 |
| Mounting Hole Dimensions (F x M) | 12.5X19mm |
| Center Distance (CF) | 138-146mm |
| Inner Dimensions (G) | 80mm |
| Free Length (L) | 171mm |
|
, Max Load 350
|
|
| Deflection (mm) | 3.5mm |
| Mounting Base Thickness (S) | 3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | CTM1063812-60 | CTM924512-45 | CTM1064212-2 | CTM1064216-2 | CTM933510-60 |
| Type | Captive Mount | Captive Mount | Captive Mount | Captive Mount | Captive Mount |
| Deflection | 3.5mm | 4mm | 7mm | 7mm | 3mm |
| Thread | M12 | M12 | M12 | M16 | M10 |
A. Anything matching the footprint - 106 mm flange with 12.5 x 19 mm slots at 138-146 mm centres, M16 stud, 171 mm free length. Measure your base or existing mounts, search PartsForMachines by the AV part number, or WhatsApp our team with photos and dimensions.
A. 350 kg per mounting point. Check the static weight per point when planning the installation.
A. The grades share the body and fixings and differ in rated load - the alternatives are CTM1063816-45 (250 kg), CTM1063816-70 (525 kg). Work out the load per mounting point and pick the grade that covers it.
A. They share one body and differ in rated load: 250 kg (CTM1063816-45), 350 kg (this mount) and 525 kg (CTM1063816-70). Select the lowest grade whose rating comfortably covers your per-point load.
A. Yes - the range is used on industrial and marine engines, and the metal top cap protecting the rubber from oil and fuel suits engine-room conditions.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
