Product Number: CTM1063812-60
The CTM1063812-60 is the mid grade of the 106 x 38 mm captive transit family, rated to 350 kg per mount. Its 60 Shore rubber element on an M12 stud makes it the general-purpose choice for generating sets, industrial and marine engines, pumps, motors, fans and compressors.

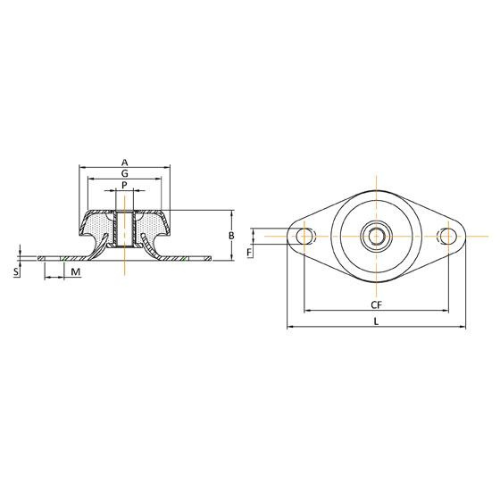

As across the range, the rubber works in shear compression to cut vibration by up to 95% in all axes; the metal top cap protects it from oil and fuel; and the integral overload stop plus captive, failsafe construction control equipment movement during transit and under shock loads. Dimensions: 106 mm flange (A), 38 mm flange height (B), 12.5 x 19 mm fixing slots at 138-146 mm centres, 80 mm inner dimension (G), 171 mm free length (L), 4 mm base thickness (S).
Alternative grades on this body: CTM1063812-45 (250 kg), CTM1063812-70 (525 kg). The footprint and fixings are identical across the family, so grades interchange without rework.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Outer Dimensions (A) | 106mm |
|---|---|
| Flange Height (B) | 38mm |
| Thread size (P) | M12 |
| Mounting Hole Dimensions (F x M) | 12.5X19mm |
| Center Distance (CF) | 138-146mm |
| Inner Dimensions (G) | 80mm |
| Free Length (L) | 171mm |
|
, Max Load 350
|
|
| Deflection (mm) | 3.5mm |
| Mounting Base Thickness (S) | 3mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | CTM1063816-60 | CTM924512-45 | CTM1064212-2 | CTM1064216-2 | CTM933510-60 |
| Type | Captive Mount | Captive Mount | Captive Mount | Captive Mount | Captive Mount |
| Deflection | 3.5mm | 4mm | 7mm | 7mm | 3mm |
| Thread | M16 | M12 | M12 | M16 | M10 |
A. Anything whose mounting footprint matches - 106 mm flange, 12.5 x 19 mm slots at 138-146 mm centres, M12 stud, 171 mm free length. Measure against your existing mounts, search PartsForMachines by the AV part number, or WhatsApp our team with your dimensions.
A. 350 kg per mount in this 60 Shore grade. Confirm the static weight carried by each mounting point sits within that limit.
A. The grades share the body and fixings and differ in rated load - the alternatives are CTM1063812-45 (250 kg), CTM1063812-70 (525 kg). Work out the load per mounting point and pick the grade that covers it.
A. The integral overload stop controls how far the equipment can move during transit, and the captive design provides a failsafe under shock loads - protection a plain rubber mount does not give.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. WhatsApp us on 07754 288583 with photos of the item and packaging.
