Product Number: IOS20406266
| IOS Bush (Click a part number to navigate to the product page) | ||||
| Part Number | Inner Diameter (A) | Outer Diameter (B) | Rubber Body Length (C) | Overall Length (D) |
|---|---|---|---|---|
| IOS17343934 | 17 | 34 | 39 | 34 |
| IOS15354550 | 15 | 35 | 45 | 50 |
| IOS15352530 | 15 | 35 | 25 | 30 |
| IOS20384046 | 20 | 38 | 40 | 46 |
| IOS1823 | 20.07 | 38.18 | 34.9 | 41.3 |
| IOS25404040 | 25 | 40 | 40 | 40 |
| IOS25403030 | 25 | 40 | 30 | 30 |
| IOS20456063 | 20 | 45 | 60 | 63 |
| IOS20454046 | 20 | 45 | 40 | 46 |
| IOS204559.562.5 | 20 | 45 | 59.5 | 62.5 |
Compact and precisely dimensioned at A:20mm, B:40mm, C:62mm and D:66mm, this inner-outer-sleeve bush (IOS20406266) is well suited to lighter, sensitive installations where controlled deflection and reliable vibration isolation matter as much as load capacity. Rubber is bonded between inner and outer metal sleeves to create a durable, maintenance-free assembly that requires no lubrication throughout its service life, making it a practical choice wherever access for routine servicing is limited or impractical. The rubber-to-metal bonded construction absorbs dynamic loads in shear, compression or a combination of both, protecting surrounding structures and improving operator comfort in service. The design is engineered for prolonged service life under cyclic loading conditions, and its compact dimensional envelope makes it appropriate for installations where space is at a premium. At this size band, the bush suits applications including pivot bearings, mechanical linkages, cab mounts and engine mounts across industries such as agriculture, power generation and marine, as well as automotive and construction environments. Its geometry also lends itself to use in railway and mass transit applications where consistent isolation performance across a fleet is required. Custom configurations, including stainless steel metalwork and oil-resistant or high-temperature rubbers. Are available on request for demanding or specialist duty cycles. This bush is part of a wider IOS inner-outer-sleeve, eccentric and spherical bush range. Related sizes include IOS08192830, IOS0877, IOS0989, IOS1004, IOS1005, IOS10222420, IOS10252025 and IOS10273840, allowing engineers to select the most appropriate dimensional specification for their application. IOS20406266 is supplied as a single bush unit.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Inner Diameter (ØA) | 20mm |
|---|---|
| Outer Diameter (ØB) | 40mm |
| Rubber Body Length (C) | 62mm |
| Overall Length (D) | 66mm |
| Warranty | 6 Months |
| Product Dimension (Right-click the image to expand in a new tab) |
|---|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|

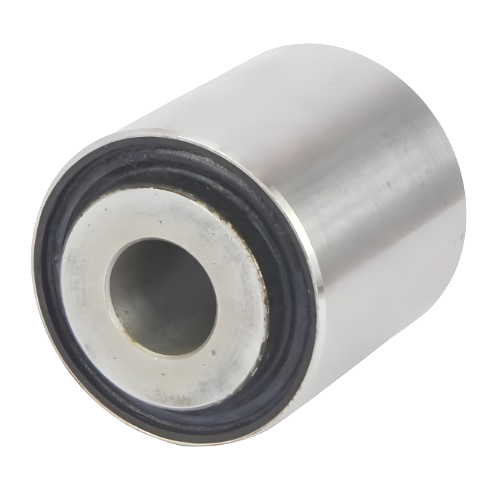

Suspension Bush - Inner Dia 20mm, Outer Dia 40mm, L 62mm - IOS20406266
|
Open Now |
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | TB25-60 | ECC1270-45 | ECC1270-45-45 | ECC1270-60 | ECC1270-60-60 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 17.5mm | 16mm | 16mm | 16mm | 16mm |
| Deflection | 0.7 | ||||
| Overall Height | 17.5mm | ||||
| Size Range | 11-25mm | 11-25mm | 11-25mm | 11-25mm | 11-25mm |
A. The IOS20406266 has four defining dimensions: A (inner diameter) 20mm, B (outer diameter) 40mm, C (length/height) 62mm and D 66mm. These figures are sourced directly from the product specification.
A. The rubber-to-metal bonded construction allows the bush to be loaded in shear, compression, or a combination of both, giving design engineers flexibility when integrating it into pivot, linkage or mount assemblies.
A. No. The IOS20406266 is maintenance-free and requires no lubrication throughout its service life, making it suitable for installations where access for routine servicing is difficult.
A. The bush is suited to pivot bearings, mechanical linkages, cab mounts and engine mounts across agriculture, power generation, marine, automotive, construction, railway and mass transit, and military and defence applications.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, as are additional and custom sizes, making it possible to specify the bush for more demanding duty cycles.
A. Yes. Related sizes include IOS08192830, IOS0877, IOS0989, IOS1004, IOS1005, IOS10222420, IOS10252025 and IOS10273840, enabling selection of the correct dimensional specification for your application.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product tech specs or datasheet where available.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
