Product Number: IOS15352530
| IOS Bush (Click a part number to navigate to the product page) | ||||
| Part Number | Inner Diameter (A) | Outer Diameter (B) | Rubber Body Length (C) | Overall Length (D) |
|---|---|---|---|---|
| IOS1460 | 12.7 | 28.6 | 25.4 | 28.6 |
| IOS12301718 | 12 | 30 | 17 | 18 |
| IOS12303640 | 12 | 30 | 36 | 40 |
| IOS17343934 | 17 | 34 | 39 | 34 |
| IOS15354550 | 15 | 35 | 45 | 50 |
| IOS20384046 | 20 | 38 | 40 | 46 |
| IOS1823 | 20.07 | 38.18 | 34.9 | 41.3 |
| IOS20406266 | 20 | 40 | 62 | 66 |
| IOS25404040 | 25 | 40 | 40 | 40 |
| IOS25403030 | 25 | 40 | 30 | 30 |
Compact rubber-to-metal bonded construction defines the IOS15352530, a 15 mm inner-bore inner-outer-sleeve bush sized for lighter, sensitive installations where controlled deflection and vibration isolation take priority over heavy load-bearing. With dimensions A: 15 mm, B: 35 mm, C: 25 mm and D: 30 mm, this bush sits in the lower end of the IOS range and is well suited to applications where a smaller envelope and gentler load profile are the governing design criteria. The rubber compound is bonded directly between precision metal inner and outer sleeves, delivering high durability under dynamic and cyclic loads without the need for lubrication or scheduled maintenance. The rubber-to-metal bond resists the stresses of combined shear and compression loading, helping to protect surrounding structures, extend machinery service life and improve operator comfort over prolonged service. At this size and band, the IOS15352530 lends itself to pivot bearings, mechanical linkages and cab mounts on compact or weight-sensitive equipment, as well as selected automotive and off-highway applications where installation space is limited. Industries served by the IOS family include agriculture, marine, power generation and railway and mass transit. Custom configurations, including stainless steel metalwork and oil-resistant or high-temperature rubber compounds. Are available on request. Additional sizes within the IOS inner-outer-sleeve range include IOS08192830, IOS0877, IOS0989, IOS1004, IOS1005, IOS10222420, IOS10252025 and IOS10273840, covering a broad spread of bore sizes, outer diameters and lengths. This bush is supplied as a single unit. No lubrication is required. Manufacturing country is shown in the product attributes.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Inner Diameter (ØA) | 15mm |
|---|---|
| Outer Diameter (ØB) | 35mm |
| Rubber Body Length (C) | 25mm |
| Overall Length (D) | 30mm |
| Warranty | 6 Months |

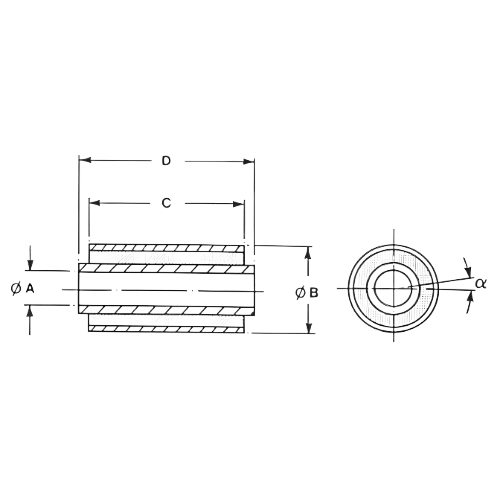

| Product Dimension (Right-click the image to expand in a new tab) |
|---|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Suspension Bush - Inner Dia 15mm, Outer Dia 35mm, L 25mm - IOS15352530
|
Open Now |
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | ECC1270-45 | ECC1270-45-45 | ECC1270-60 | ECC1270-60-60 | ECC1270-75 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 16mm | 16mm | 16mm | 16mm | 16mm |
| Size Range | 11-25mm | 11-25mm | 11-25mm | 11-25mm | 11-25mm |
A. The IOS15352530 has the following dimensions: A (inner bore): 15 mm, B (outer diameter): 35 mm, C (length): 25 mm, D: 30 mm.
A. No. The IOS15352530 is maintenance-free and requires no lubrication throughout its service life, owing to its rubber-to-metal bonded construction.
A. The bush may be loaded in shear, compression, or a combination of both, making it suitable for dynamic and cyclic load conditions in pivot bearings and mechanical linkages.
A. The IOS15352530 is suited to pivot bearings, mechanical linkages, cab mounts, and compact off-highway and automotive applications. The IOS family serves industries including agriculture, marine, power generation, automotive, and railway and mass transit.
A. Yes. Stainless steel metalwork, oil-resistant rubber, high-temperature rubber compounds, and additional or custom sizes are available on request.
A. Yes. Related sizes include IOS08192830, IOS0877, IOS0989, IOS1004, IOS1005, IOS10222420, IOS10252025 and IOS10273840, covering a range of bore sizes, outer diameters and lengths.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product tech specs or datasheet where available.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
