Product Number: IOS16454652
| IOS Bush (Click a part number to navigate to the product page) | ||||
| Part Number | Inner Diameter (A) | Outer Diameter (B) | Rubber Body Length (C) | Overall Length (D) |
|---|---|---|---|---|
| IOS25403030 | 25 | 40 | 30 | 30 |
| IOS20456063 | 20 | 45 | 60 | 63 |
| IOS20454046 | 20 | 45 | 40 | 46 |
| IOS204559.562.5 | 20 | 45 | 59.5 | 62.5 |
| IOS20456470 | 20 | 45 | 64 | 70 |
| IOS20463542 | 20 | 46 | 35 | 42 |
| IOS0877 | 25.4 | 46.7 | 25.4 | 34.9 |
| IOS15473137 | 15 | 47 | 31 | 37 |
| IOS2847110116 | 28 | 47 | 110 | 116 |
| IOS1004 | 15.9 | 47.6 | 44.5 | 50.8 |
Compact in form and suited to lighter, more sensitive installations, the IOS16454652 is a 16 mm inner-outer-sleeve bush with a rubber-to-metal bonded construction, dimensions A: 16 mm, B: 45 mm, C: 46 mm, D: 52 mm. Designed for dynamic load applications where controlled deflection and vibration isolation are the primary requirements at the lower end of the load range. The rubber-bonded construction bonds the rubber element between inner and outer metal sleeves, delivering high durability under dynamic loads and a prolonged service life. Because the rubber isolates and absorbs movement between the two metal sleeves, the bush performs effectively under shear, compression, or combined loading without any requirement for lubrication, making the assembly entirely maintenance free throughout its service life. At this compact size and lighter load band, the IOS16454652 is particularly well suited to pivot bearings, mechanical linkages, and cab mount applications where precise isolation of vibration and refinement of operator comfort are the governing concerns. The industries served by this bush family include construction and off-highway, agriculture, marine, railway and mass transit, automotive, and military and defence, all environments in which a maintenance-free, rubber-bonded bush at this scale earns its place in sensitive or lightly loaded joints. Custom options, including stainless steel metal components and oil-resistant or high-temperature rubbers. Are available on request for specialist applications. This SKU is one variant within a wider range of inner-outer-sleeve bushes.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Inner Diameter (ØA) | 16mm |
|---|---|
| Outer Diameter (ØB) | 45mm |
| Rubber Body Length (C) | 46mm |
| Overall Length (D) | 52mm |
| Warranty | 6 Months |

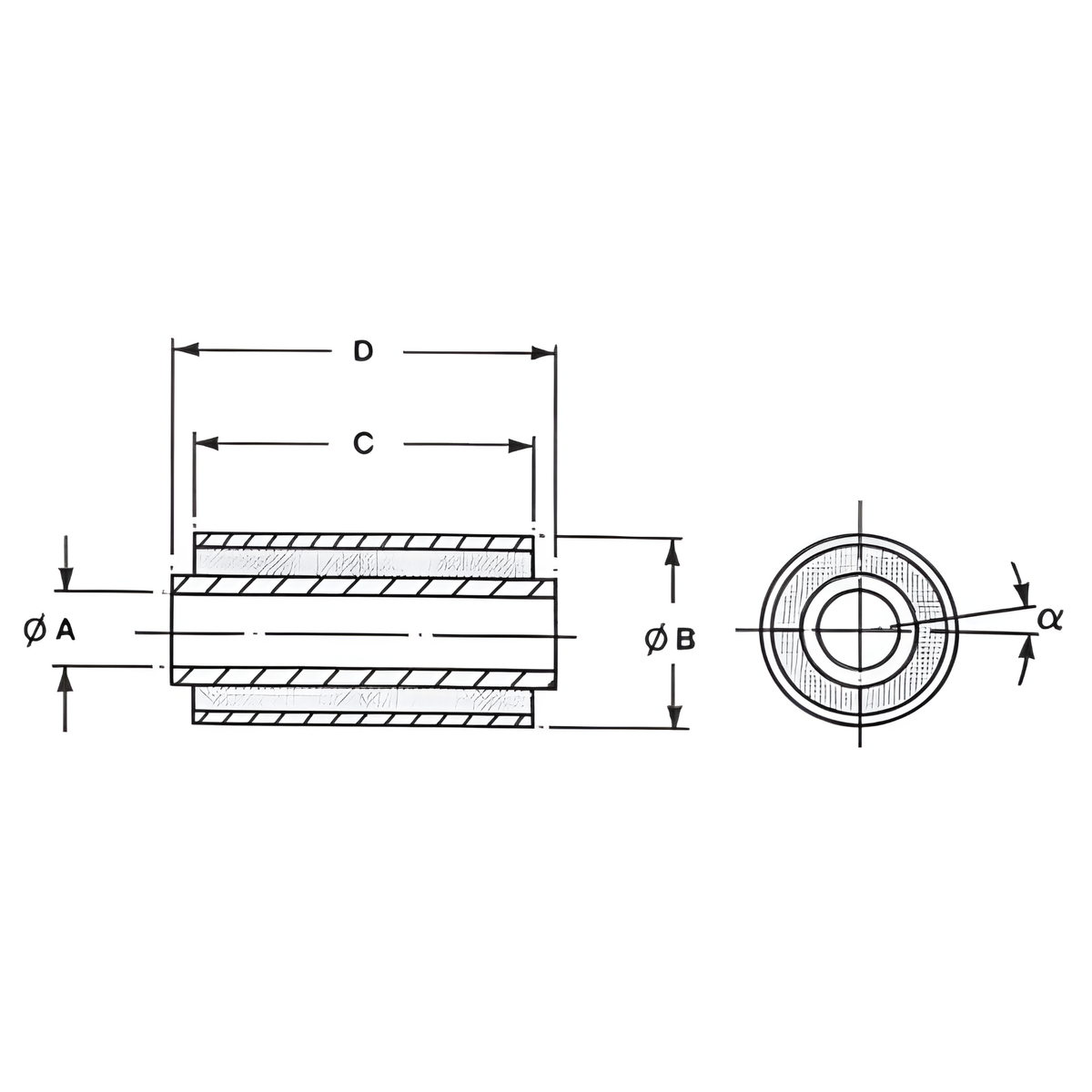

| Product Dimension (Right-click the image to expand in a new tab) |
|---|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Suspension Bush - Inner Dia 16mm, Outer Dia 45mm, L 46mm - IOS16454652
|
Open Now |
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | ECC1270-45 | ECC1270-45-45 | ECC1270-60 | ECC1270-60-60 | ECC1270-75 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 16mm | 16mm | 16mm | 16mm | 16mm |
| Size Range | 11-25mm | 11-25mm | 11-25mm | 11-25mm | 11-25mm |
A. The IOS16454652 has the following dimensions: A: 16 mm, B: 45 mm, C: 46 mm, D: 52 mm.
A. The IOS16454652 uses a rubber-to-metal bonded construction, with rubber bonded between inner and outer metal sleeves. It requires no lubrication and is entirely maintenance free.
A. The bush may be loaded in shear, compression, or a combination of both, making it adaptable to a range of dynamic load conditions.
A. This bush is suited to pivot bearings, mechanical linkages, and cab mount applications, particularly where vibration isolation and operator comfort are priorities at lighter load levels. It is used across construction and off-highway, agriculture, marine, railway and mass transit, automotive, and military and defence industries.
A. Yes — stainless steel metal components and oil-resistant or high-temperature rubbers are available on request, along with additional and custom sizes.
A. Yes — related variants include IOS08192830, IOS0877, IOS0989, IOS1004, IOS1005, IOS10222420, IOS10252025, and IOS10273840, each with different dimensional specifications to suit varied installation and load requirements.
