Product Number: IOS1823
| IOS Bush (Click a part number to navigate to the product page) | ||||
| Part Number | Inner Diameter (A) | Outer Diameter (B) | Rubber Body Length (C) | Overall Length (D) |
|---|---|---|---|---|
| IOS12303640 | 12 | 30 | 36 | 40 |
| IOS17343934 | 17 | 34 | 39 | 34 |
| IOS15354550 | 15 | 35 | 45 | 50 |
| IOS15352530 | 15 | 35 | 25 | 30 |
| IOS20384046 | 20 | 38 | 40 | 46 |
| IOS20406266 | 20 | 40 | 62 | 66 |
| IOS25404040 | 25 | 40 | 40 | 40 |
| IOS25403030 | 25 | 40 | 30 | 30 |
| IOS20456063 | 20 | 45 | 60 | 63 |
| IOS20454046 | 20 | 45 | 40 | 46 |
Compact proportions and a 20.07 mm inner bore (dimension A) place the IOS1823 inner-outer-sleeve bush squarely in the lighter-load band of the range, making it well suited to applications where deflection compliance and vibration isolation take priority over high-load capacity. The rubber element is bonded between precision-formed inner and outer metal sleeves, delivering the high durability under dynamic conditions and prolonged service life that characterise the full IOS eccentric and spherical bush family. The rubber-to-metal bonded construction is maintenance free and requires no lubrication throughout its service life. This design resists the fatigue that can develop under continuous dynamic loading, protecting both the mount itself and the surrounding structures to which it is fitted. At this lighter load and compact size, the bush offers good deflection response and effective isolation characteristics suited to sensitive installations and low-amplitude vibration environments. The IOS1823 carries the following confirmed dimensions: A (inner bore) 20.07 mm, B 38.18 mm, C 34.9 mm, D 41.3 mm. Typical application areas include pivot bearings, mechanical linkages and cab mounts in agricultural, construction and off-highway equipment, as well as marine, railway and mass transit, automotive and military and defence platforms. Mounts in this family may be loaded in shear, compression or a combination of both. Custom options, including stainless steel metalwork and oil-resistant or high-temperature rubber compounds, plus additional sizes. Are available on request. Other sizes in the IOS range include IOS08192830, IOS0877, IOS0989, IOS1004, IOS1005, IOS10222420, IOS10252025 and IOS10273840.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Inner Diameter (ØA) | 20.07mm |
|---|---|
| Outer Diameter (ØB) | 38.18mm |
| Rubber Body Length (C) | 34.9mm |
| Overall Length (D) | 41.3mm |
| Warranty | 6 Months |
| Product Dimension (Right-click the image to expand in a new tab) |
|---|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|

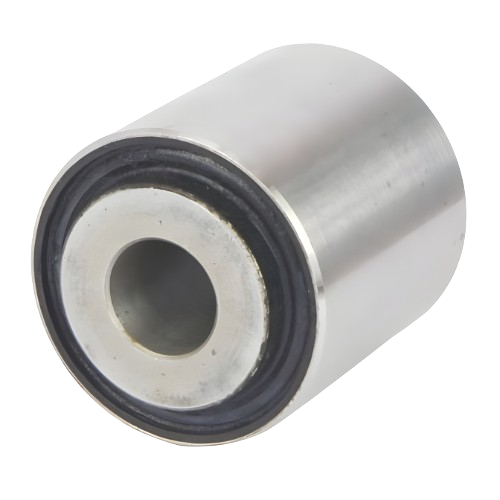

Suspension Bush - Inner Dia 20.07mm, Outer Dia 38.18mm, L 34.9mm - IOS1823
|
Open Now |
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | TB25-60 | ECC2174-45 | ECC2174-45-45 | ECC2174-60 | ECC2174-60-60 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 17.5mm | 24mm | 24mm | 24mm | 24mm |
| Deflection | 0.7 | ||||
| Overall Height | 17.5mm | ||||
| Size Range | 11-25mm | 11-25mm | 11-25mm | 11-25mm | 11-25mm |
A. The confirmed dimensions are: A (inner bore) 20.07 mm, B 38.18 mm, C 34.9 mm, D 41.3 mm.
A. The IOS1823 is suited to pivot bearings, mechanical linkages and cab mounts, and serves industries including agriculture, construction and off-highway, marine, railway and mass transit, automotive, and military and defence. Its compact, lighter-load proportions make it particularly appropriate for sensitive installations and lower-load dynamic environments.
A. No. The rubber-to-metal bonded construction is maintenance free and requires no lubrication throughout its service life.
A. Mounts in the IOS family may be loaded in shear, compression, or a combination of both, depending on the installation requirements.
A. Yes. Stainless steel metalwork, oil-resistant rubber compounds, high-temperature rubber compounds, and additional or fully custom sizes are all available on request.
A. The IOS range includes multiple bore and outer-diameter configurations. Related variants include IOS08192830, IOS0877, IOS0989, IOS1004, IOS1005, IOS10222420, IOS10252025 and IOS10273840. Contact the team to confirm the most suitable size for your load and deflection needs.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
