Product Number: IOS20456063
| IOS Bush (Click a part number to navigate to the product page) | ||||
| Part Number | Inner Diameter (A) | Outer Diameter (B) | Rubber Body Length (C) | Overall Length (D) |
|---|---|---|---|---|
| IOS20384046 | 20 | 38 | 40 | 46 |
| IOS1823 | 20.07 | 38.18 | 34.9 | 41.3 |
| IOS20406266 | 20 | 40 | 62 | 66 |
| IOS25404040 | 25 | 40 | 40 | 40 |
| IOS25403030 | 25 | 40 | 30 | 30 |
| IOS20454046 | 20 | 45 | 40 | 46 |
| IOS204559.562.5 | 20 | 45 | 59.5 | 62.5 |
| IOS20456470 | 20 | 45 | 64 | 70 |
| IOS16454652 | 16 | 45 | 46 | 52 |
| IOS20463542 | 20 | 46 | 35 | 42 |
Compact at 20mm bore (dim A), this rubber-bonded inner-outer-sleeve bush is engineered for lighter installations and lower-load applications where controlled deflection and vibration isolation are priorities. The IOS20456063 carries dimensions A: 20mm, B: 45mm, C: 60mm and D: 63mm, placing it in the lighter, more compact band of the IOS range and making it well suited to applications where space is limited and sensitivity to transmitted vibration is high. The bush uses rubber-to-metal bonded construction, with the elastomer vulcanised between inner and outer metal sleeves to deliver high durability under dynamic and repetitive loading. The assembly requires no lubrication and is entirely maintenance-free, contributing directly to reduced downtime and prolonged service life across demanding operating environments. Typical application areas include pivot bearings and mechanical linkages, cab mounts in off-road and agricultural machinery, and vibration-isolation duties in power generation and marine equipment. The bonded rubber element accommodates loading in shear, compression or a combination of both, protecting surrounding structures and improving operator comfort. Custom configurations, including stainless steel metalwork and oil-resistant or high-temperature rubbers. Are available on request, alongside additional non-standard sizes. This bush is part of the broader IOS inner-outer-sleeve and eccentric and spherical bush range. Related sizes include IOS08192830, IOS0877, IOS0989, IOS1004, IOS1005, IOS10222420, IOS10252025 and IOS10273840, covering a variety of bore dimensions and load capacities to suit many industrial and mobile applications. The IOS20456063 is supplied as a single bush unit.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Inner Diameter (ØA) | 20mm |
|---|---|
| Outer Diameter (ØB) | 45mm |
| Rubber Body Length (C) | 60mm |
| Overall Length (D) | 63mm |
| Warranty | 6 Months |
| Product Dimension (Right-click the image to expand in a new tab) |
|---|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|

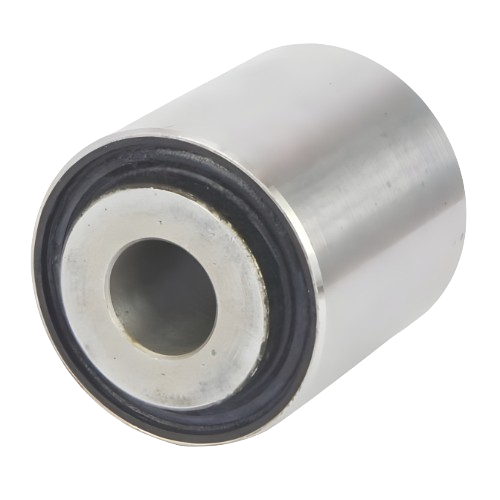

Suspension Bush - Inner Dia 20mm, Outer Dia 45mm, L 60mm - IOS20456063
|
Open Now |
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | TB25-60 | ECC1270-45 | ECC1270-45-45 | ECC1270-60 | ECC1270-60-60 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 17.5mm | 16mm | 16mm | 16mm | 16mm |
| Deflection | 0.7 | ||||
| Overall Height | 17.5mm | ||||
| Size Range | 11-25mm | 11-25mm | 11-25mm | 11-25mm | 11-25mm |
A. The IOS20456063 has four key dimensions: A (bore) 20mm, B 45mm, C 60mm and D 63mm. These place it in the lighter, compact band of the IOS inner-outer-sleeve range.
A. The IOS20456063 uses rubber-to-metal bonded construction, with the elastomer vulcanised between an inner and outer metal sleeve. This provides high durability under dynamic loads and a prolonged service life.
A. No. The rubber-bonded construction is entirely maintenance-free and requires no lubrication throughout its service life.
A. The bush can be loaded in shear, compression or a combination of both, making it adaptable across a range of mounting and linkage configurations.
A. Typical applications include pivot bearings, mechanical linkages, cab mounts on off-road and agricultural vehicles, and vibration-isolation duties in power generation and marine equipment. The 20mm bore and compact dimensions make it particularly appropriate for lighter-load and space-constrained installations.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes outside the standard range.
A. Yes. Related sizes include IOS08192830, IOS0877, IOS0989, IOS1004, IOS1005, IOS10222420, IOS10252025 and IOS10273840, covering a range of bore dimensions and load capacities for varied industrial and mobile applications.
