Product Number: 05753
Variations

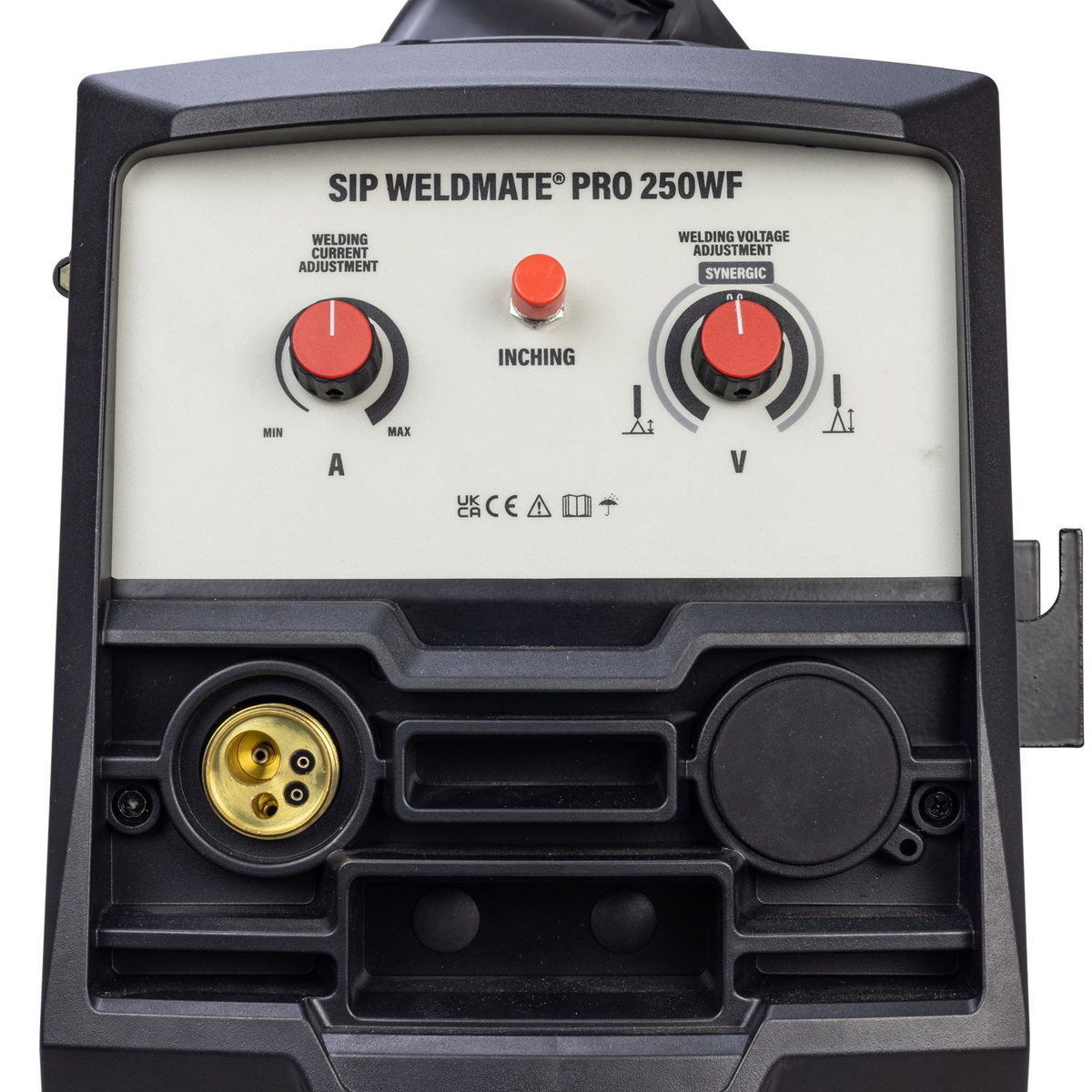

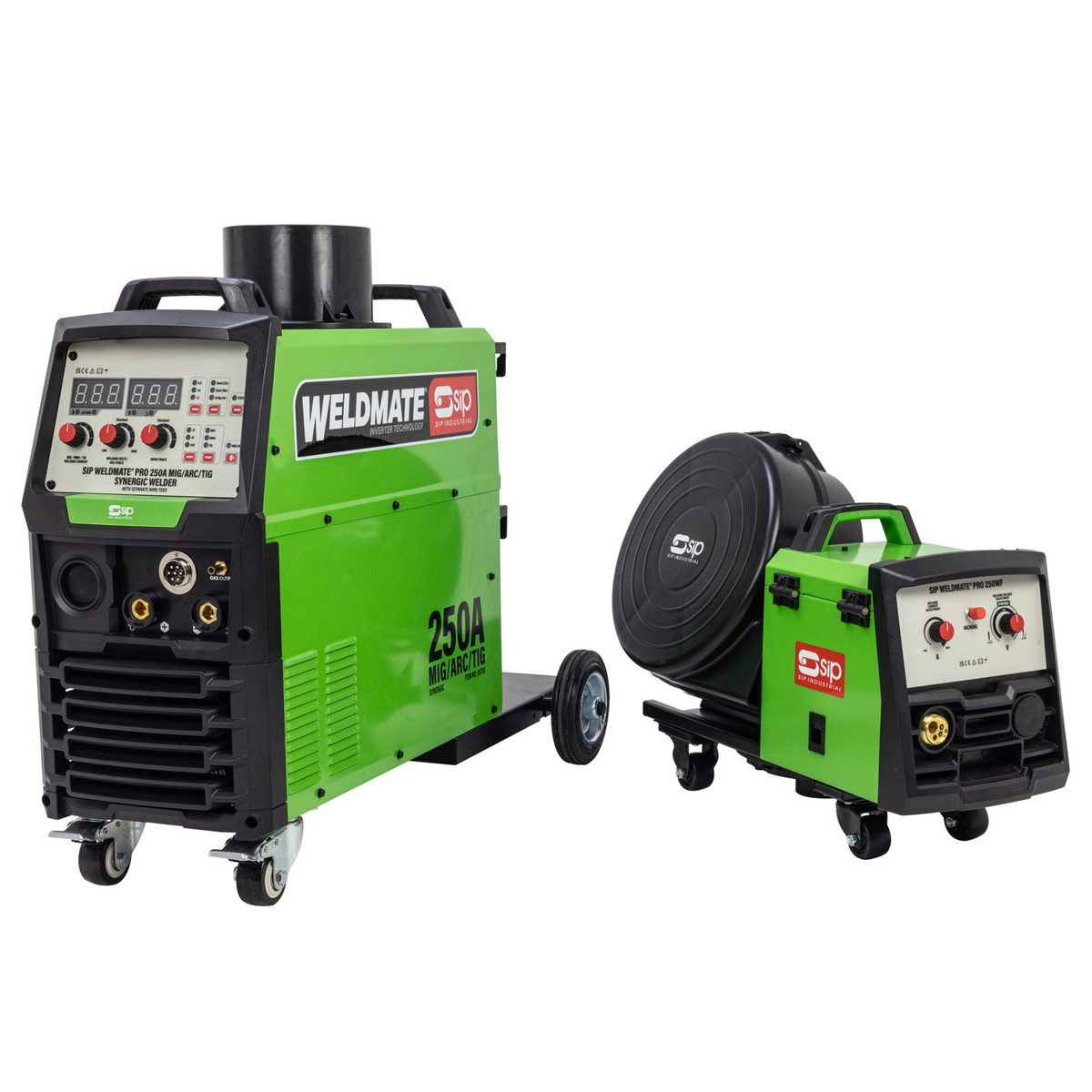

Separate wire feeder extends reach into confined and overhead positions. Synergic operation links wire speed to voltage automatically, so dialling in the right weld parameters takes seconds rather than minutes of experimentation. Output spans 30A - 250A 30A - 250A 10A - 250A with a duty cycle of @ 20°C: 250A @ 80% 250A @ 80% 250A @ 80%.

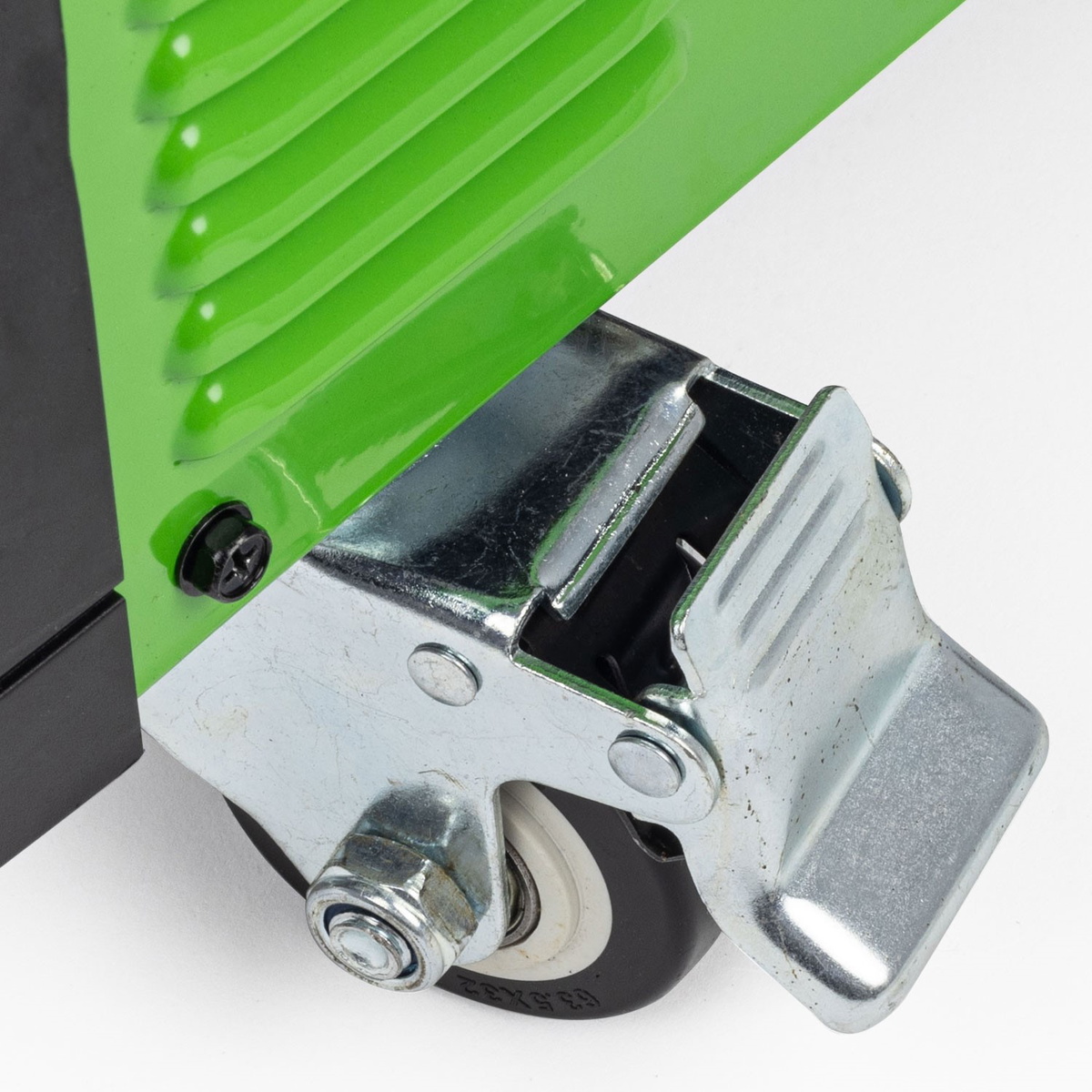

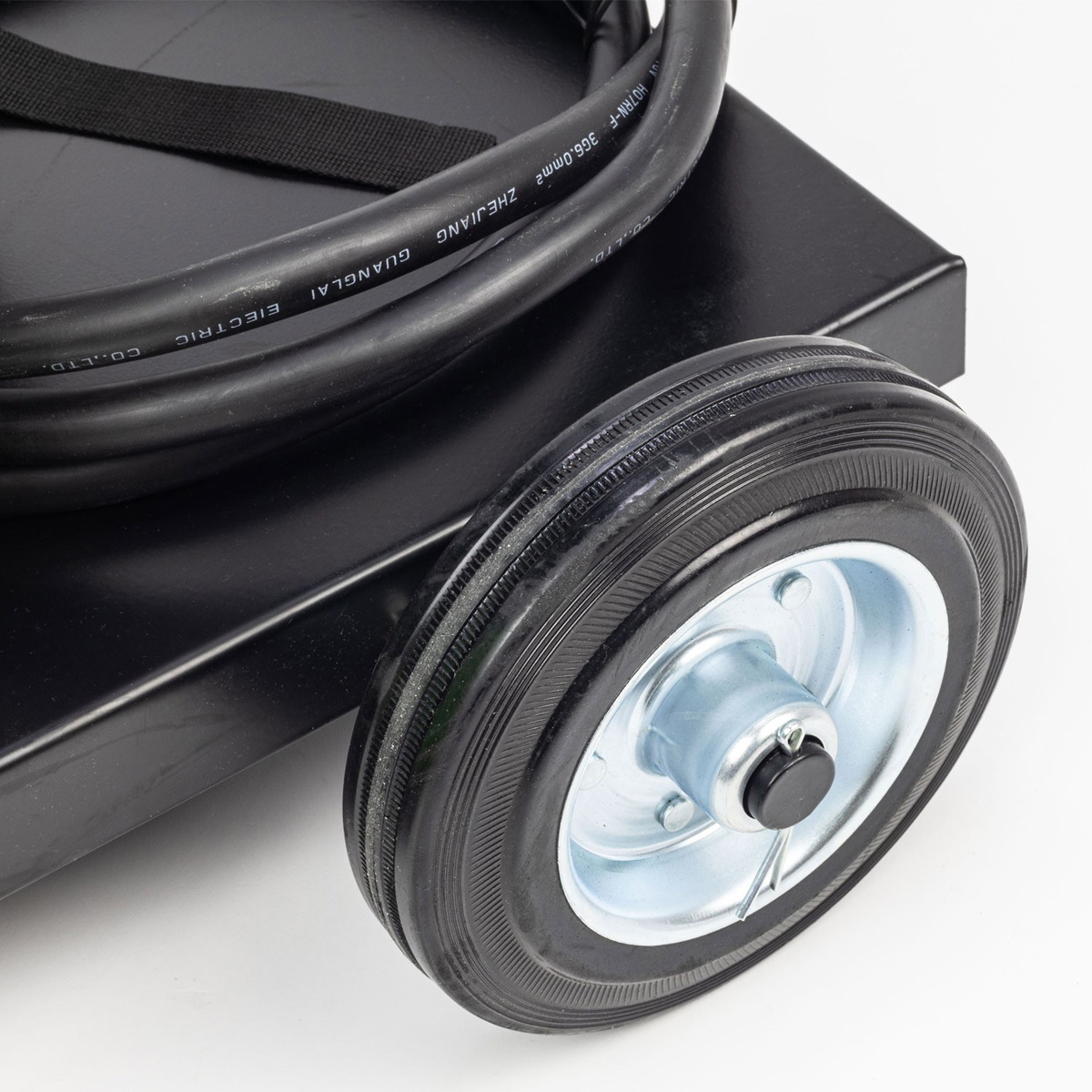

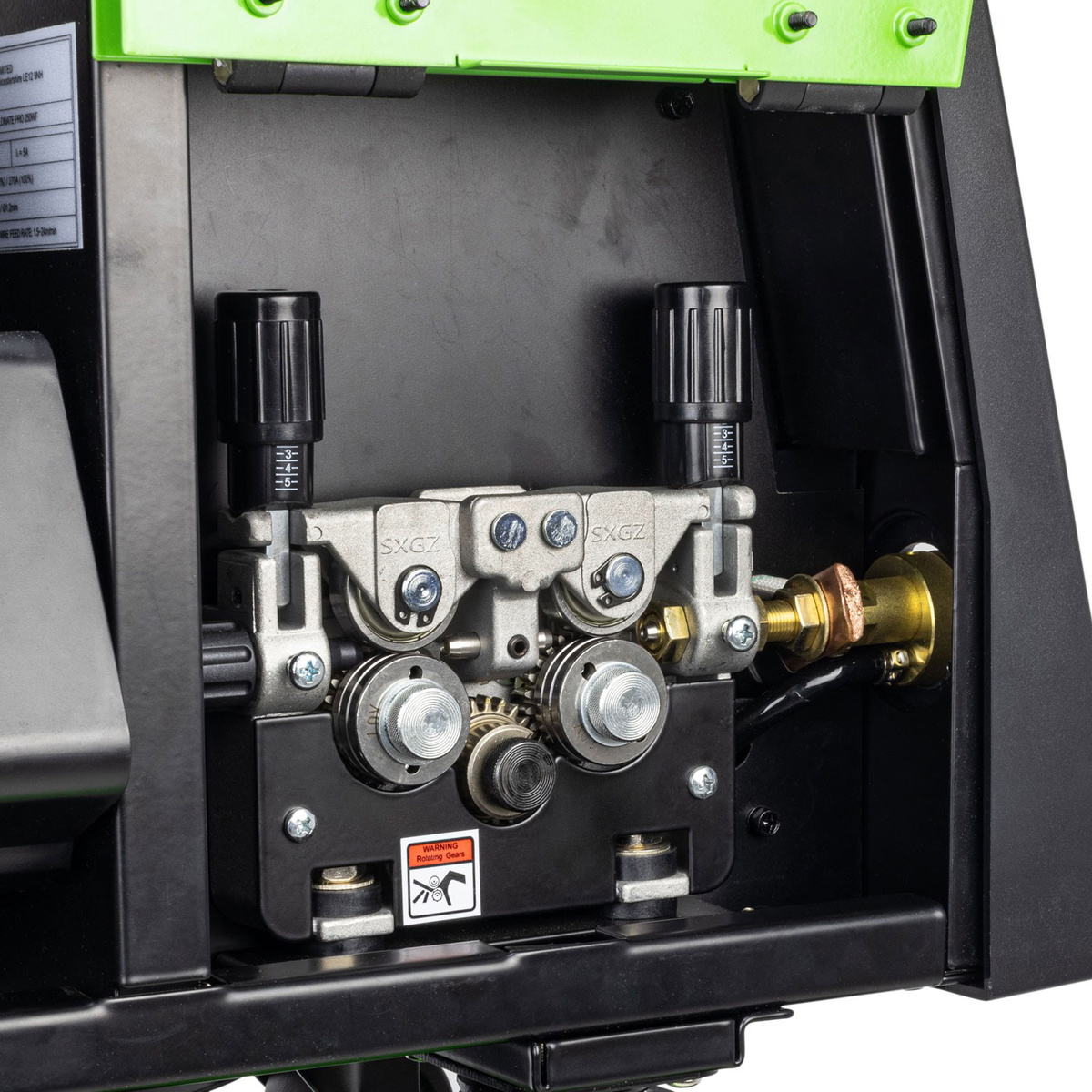

Features Pure Synergic Control for more consistent and higher quality welds mild steel. Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment). Additional features include separate wire feeder allows for greater work area coverage and versatility, heavy-duty 4-roll cast aluminium wire feed drive handles higher feed speeds, wheel-mounted design with lockable front castors for mobility around the work area,.

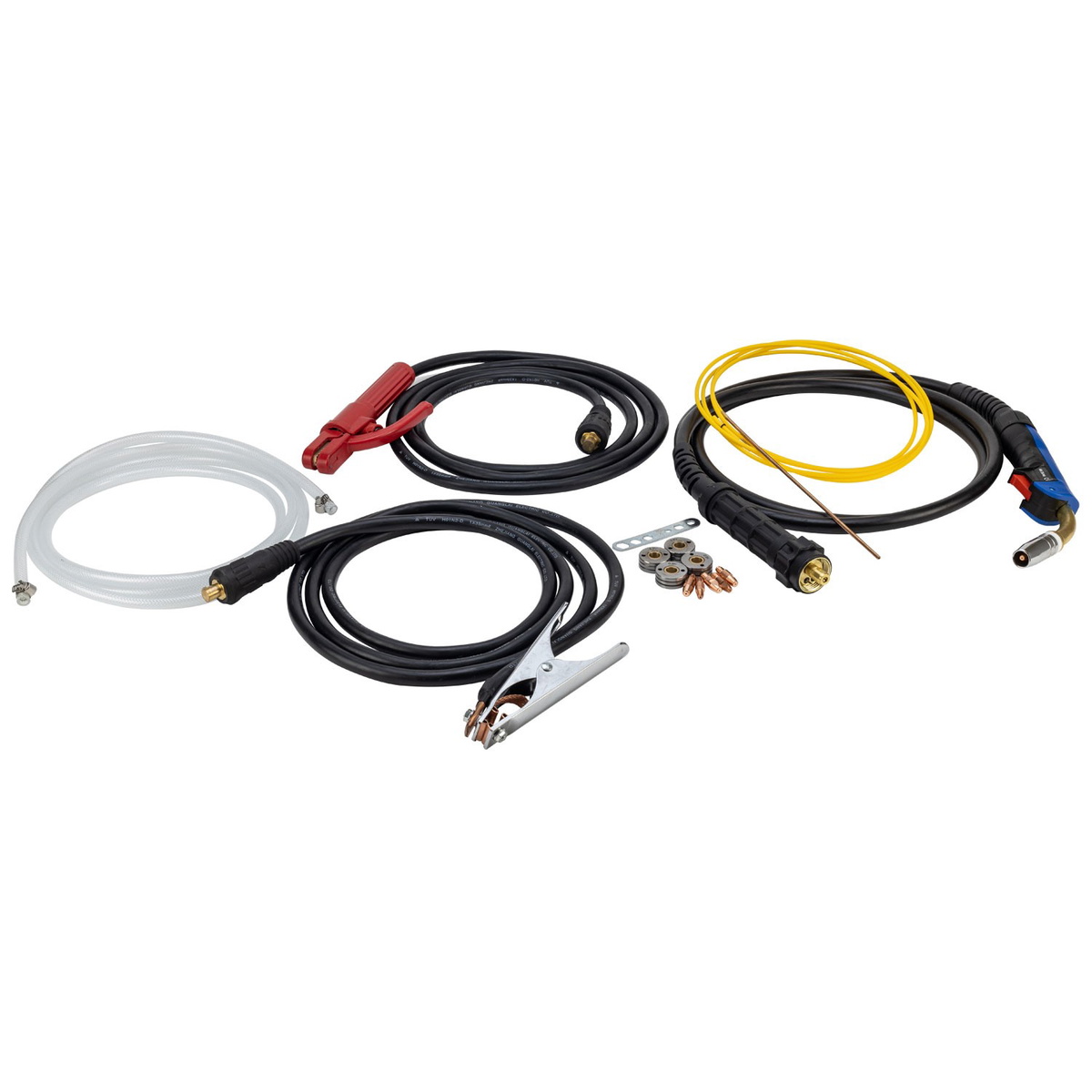

Supplied with:
Suitable for welding mild steel, stainless steel and aluminium. suited to workshop, fabrication environments.
The 05753 is a gas-shielded MIG welder. It uses CO₂, Argon, or CO₂/Argon mix shielding gas for clean welds on mild steel and stainless steel. A gas cylinder, regulator, and hose are required separately. Operators comparing synergic MIG welders benefit from the 05753's automatic wire-speed-to-voltage linking, which simplifies setup across different materials and wire diameters — particularly valuable in bodyshops where settings change frequently between jobs.
Additional Information:

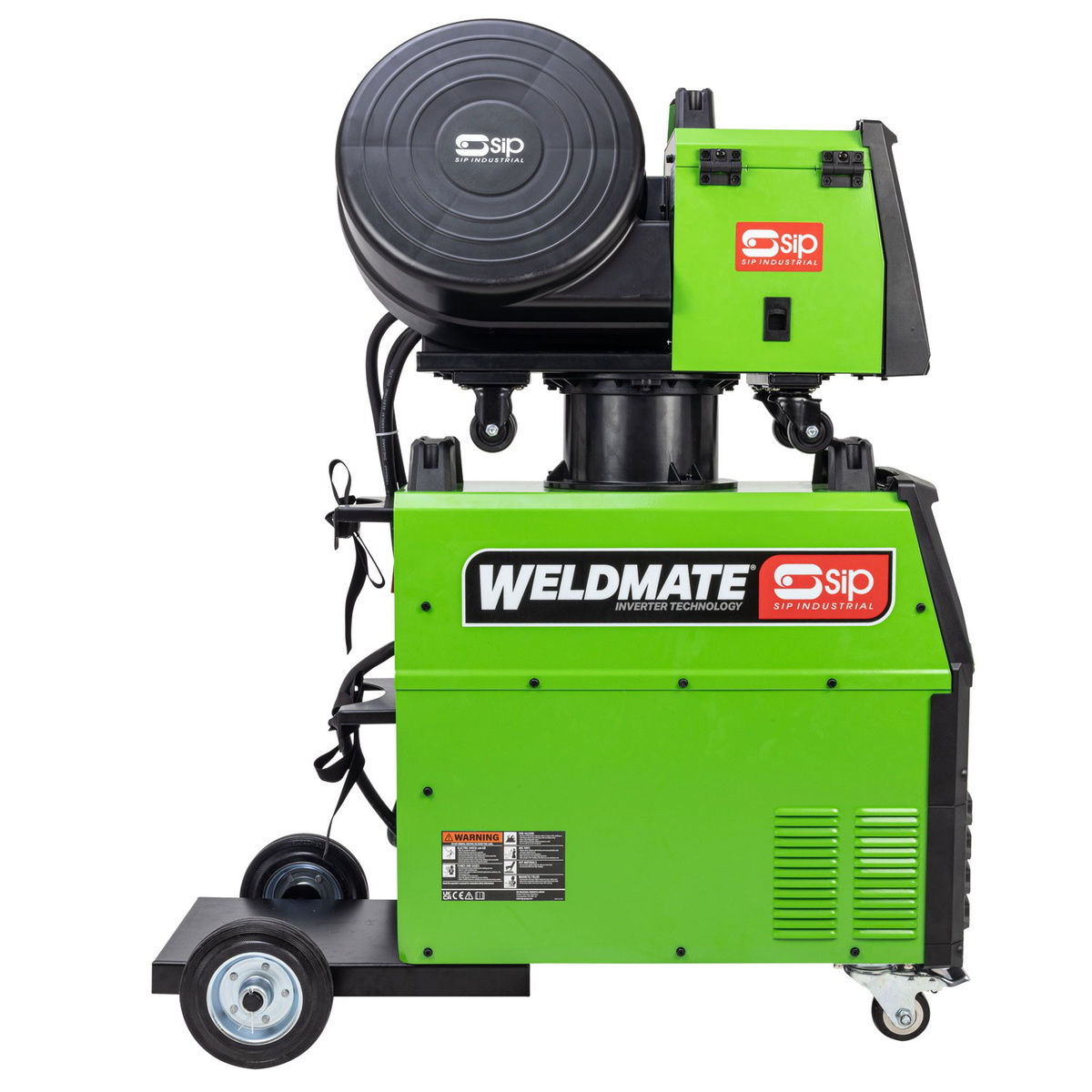

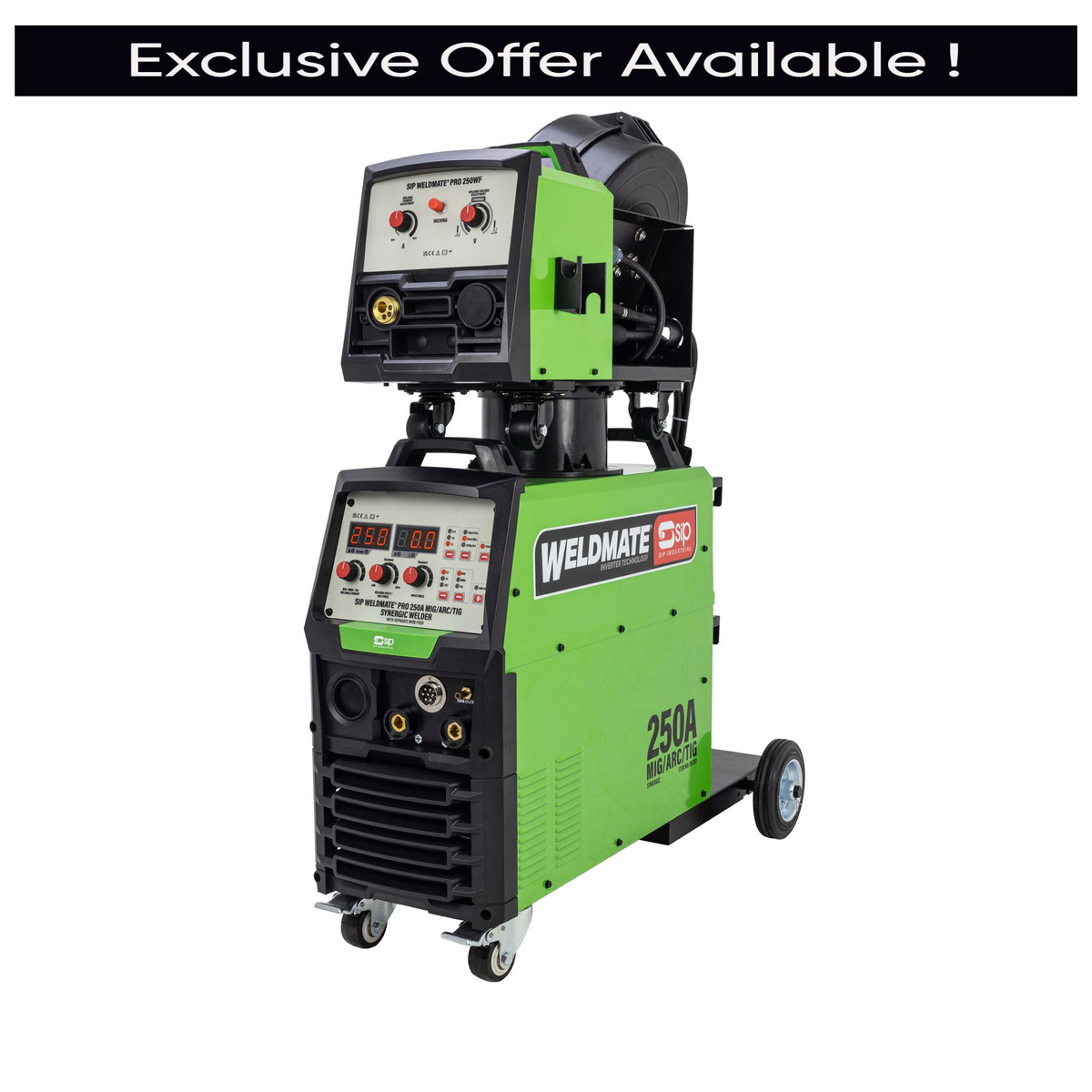

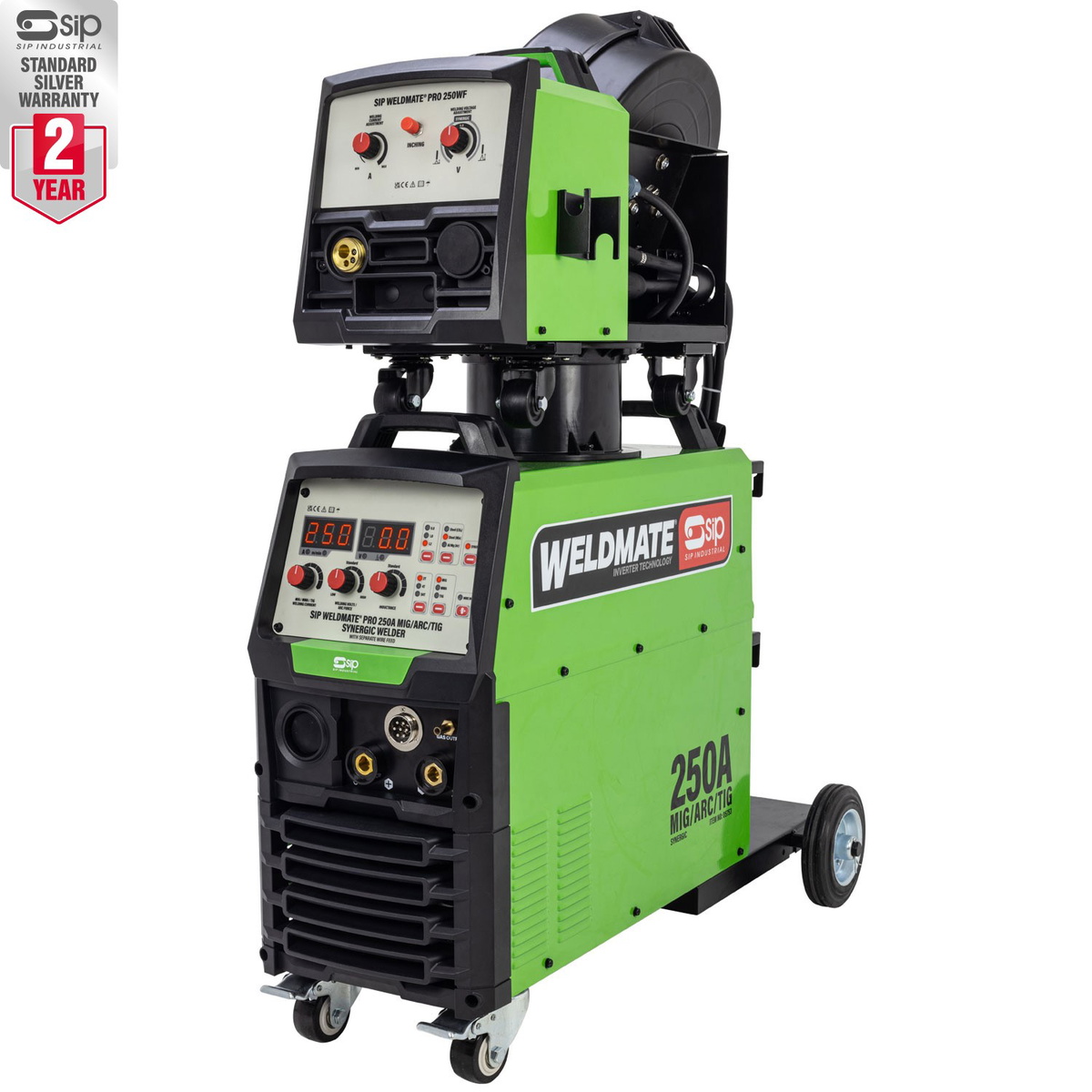

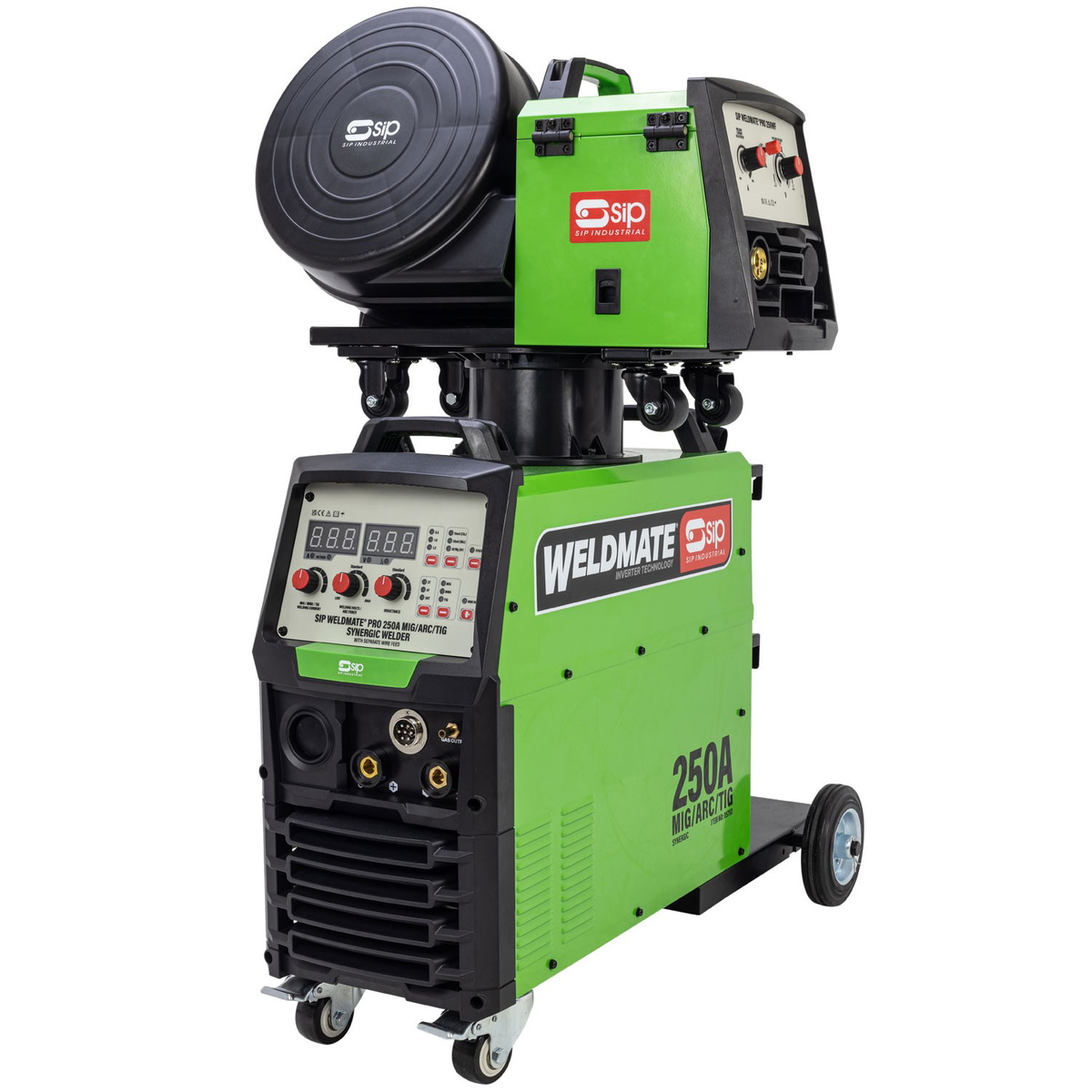

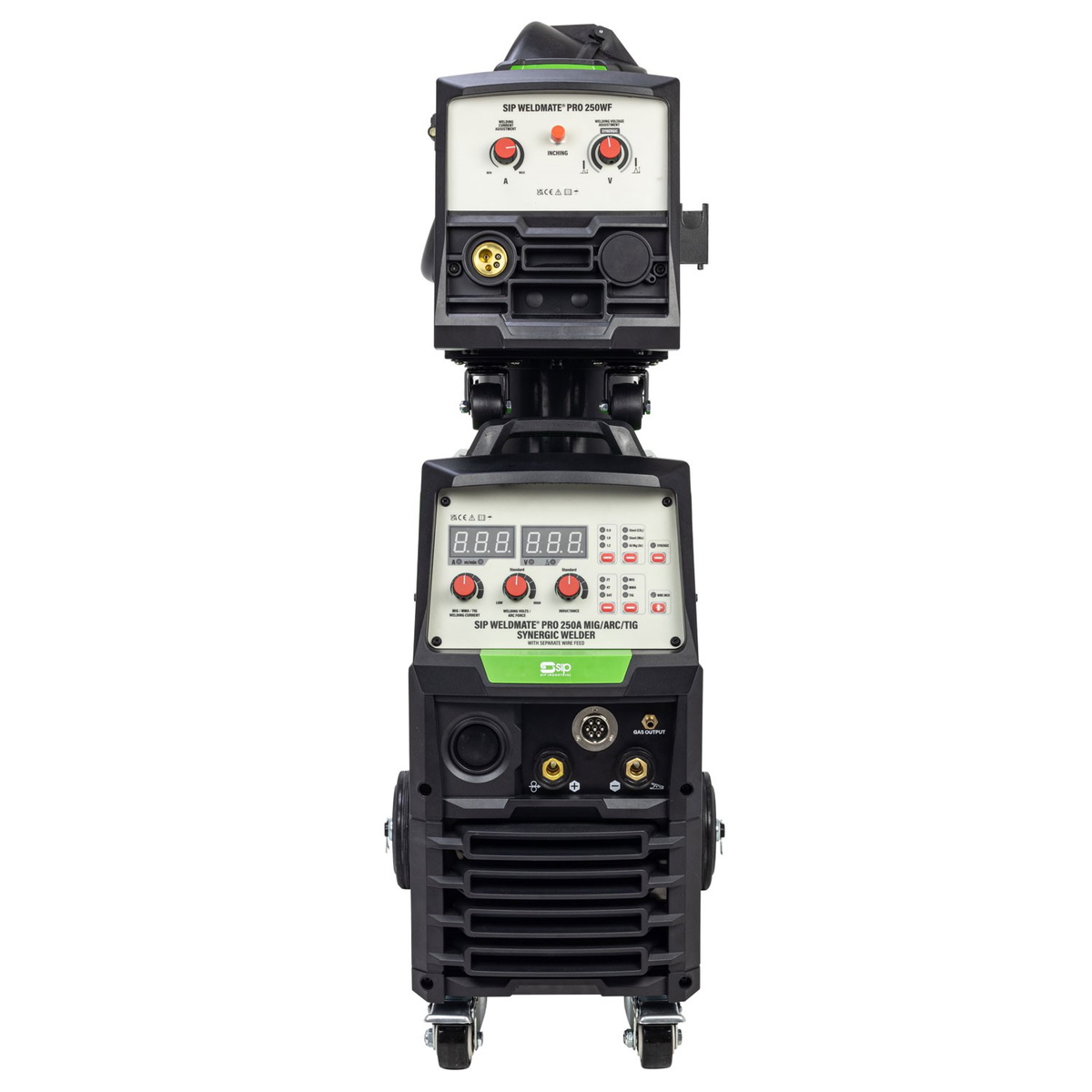

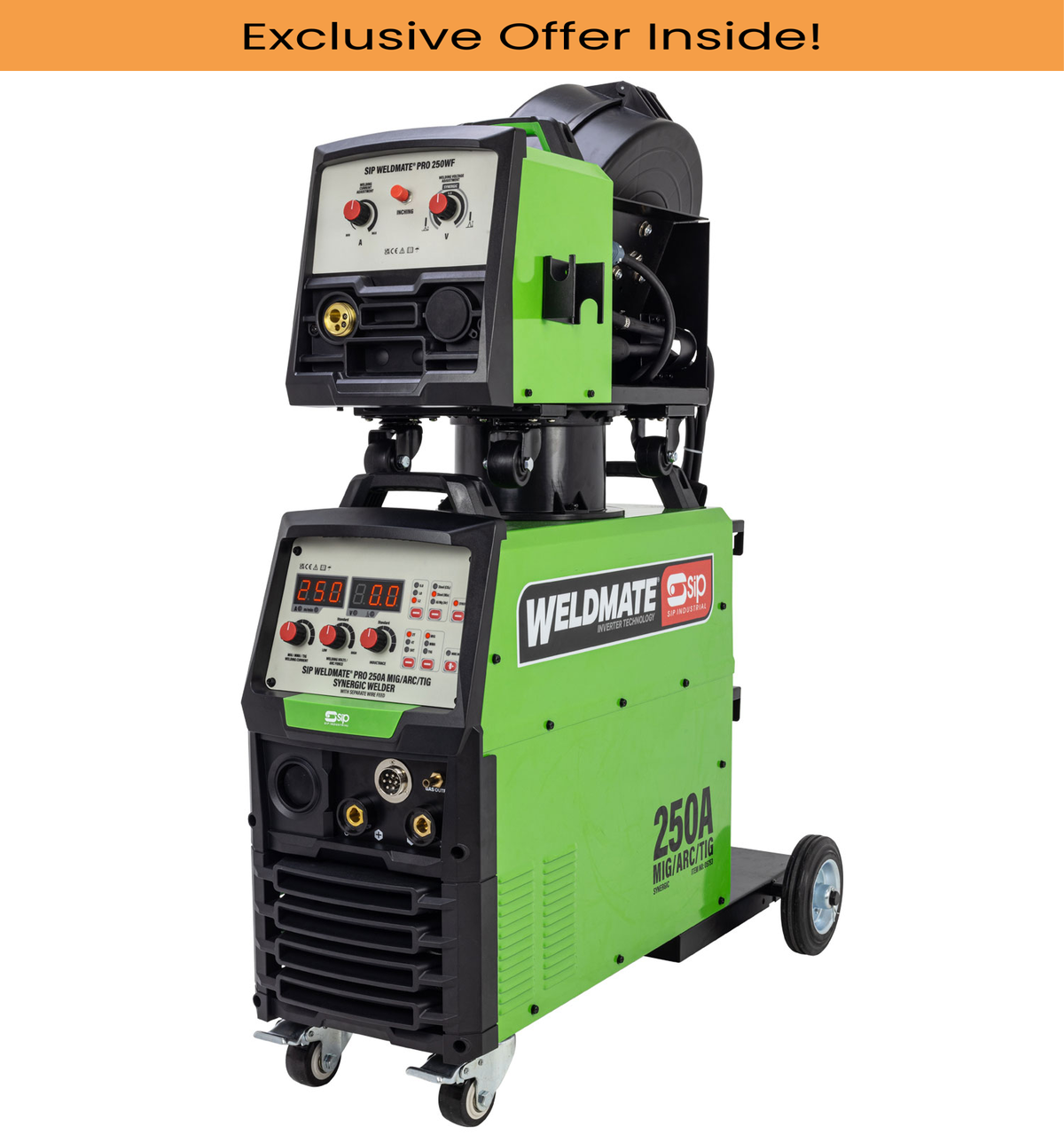

The SIP WELDMATE® PRO 250A MIG/ARC/TIG Synergic Welder with Separate Wire Feed is a multi-process inverter welder specifically designed for use in professional fabrication workshops. Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs. It also includes Pure Synergic Control, which allows users to adjust welding voltage and wire feed speed autonomously. This simplifies the welding process at all skill levels and helps to achieve more consistent and higher quality welds. Applications & uses: Ideal for use in professional fabrication workshops. Perfect for sheet metal applications. Suitable for MIG/ARC/TIG welding and performs flux-cored welding. Ideal for mild steels and welds *stainless steel and **aluminium. *Using stainless steel welding wire. **Using aluminium welding wire and pure Argon gas.
Product Key Features :About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO. | 05753 |
|---|---|
| Input Supply | 230v (32A) |
| Welding Process | MIG ARC TIG |
| Output Voltage | 15.5v - 26.5v 21.2v - 30v 10.4v - 20v |
| Output Current | 30A - 250A 30A - 250A 10A - 250A |
| Duty Cycle @ 20°C | 250A @ 80% 250A @ 80% 250A @ 80% |
| Wire Diameter | ⌀ 0.8mm - 1.2mm |
| Wire Spool Size | 5kg, 15kg |
| Welding Material Thickness | 0.8mm - 6.4mm (mild steel) / 3.2mm - 7.9mm (aluminium) |
| Protection / Insulation | 21S / H |
| Net Weight | 32kg (P1) / 15kg (P2) |
| Gross Weight | 35kg (P1) / 26.5kg (P2) |
| Product Dimensions | 650(H) x 450(W) x 880mm(D) (P1) |
|
445(H) x 310(W) x 640mm(D) (P2)
|
|
| Packaged Dimensions | 620(H) x 400(W) x 670mm(D) (P1) |
|
565(H) x 470(W) x 745mm(D) (P2)
|
|
Pro Tips for Buying Welding Machines: Types, Uses, and Choosing the Perfect Fit Introduction:Welding, the art of joining metals through heat and precision, has evolved significantly with the advent of adv...
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 05751 WELDMATE® AUTOPLUS 250A MIG/ARC/TIG Synergic Welder
£770.05
£754.95
2% OFF
Free delivery in Channel Island
|
SIP 05740TROLLEY WELDMATE® AUTOPLUS 200A MIG/ARC/TIG Synergic Inverter Welder with Trolley Package
£467.07
£457.91
2% OFF
Free delivery in UK Mainland
|
SIP 05740CART WELDMATE® AUTOPLUS 200A MIG/ARC/TIG Synergic Inverter Welder with Cart Package
£446.31
£437.56
2% OFF
Free delivery in UK Mainland
|
Sealey POWERMIG300i 300A Professional Gas/Gasless MIG/TIG/MMA Inverter Welder 400V 3ph
£1,466.85
£1,438.09
2% OFF
Free delivery in UK Mainland
|
Clarke 220A MIG/MMA/TIG Inverter Welder - MIG250MULTI
£673.15
£659.95
2% OFF
Free delivery in UK Mainland
|
SIP 05754 WELDMATE® PRO 350A MIG/ARC Synergic Welder with Separate Wire Feed
£1,764.51
£1,729.91
2% OFF
Free delivery in Channel Island
|
SIP 05752 WELDMATE® PRO 250A MIG/ARC/TIG Synergic Compact Welder
£888.24
£870.82
2% OFF
Free delivery in Channel Island
|
Sealey MINIMIG160i MIG/TIG & MMA (ARC/STICK) Inverter Welder 160A 230V
£185.86
£182.22
2% OFF
Free delivery in UK Mainland
|
Sealey MIG200i MIG/TIG & MMA (ARC/STICK) Inverter Welder 200A
£367.93
£360.72
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 05751 | 05740TROLLEY | 05740CART | POWERMIG300i | 6015607 | 05754 | 05752 | CAP0936 | MINIMIG160i | 08202 | MIG200i |
| Input Supply | 230 | 400 | 230 | 230 | 230 | ||||||
| Input current | 32 | 32 | 32 | 16 | 13 | ||||||
| Output Current (max) | 0 | 0 | 0 | 0 | 0 | 120 | |||||
| Output Current (min) | 0 | 0 | 0 | 0 | 0 | 15 | |||||
A. Yes. The 05753 supports both gas MIG (CO₂, Argon, or Argon/CO₂ mix) and gasless flux-cored wire welding. Switch between modes by reversing the torch polarity — no other changes needed.
A. The 05753 requires a 230V / 32A supply to achieve its full rated output. A 32A circuit is recommended — consult a qualified electrician if you are unsure of your supply capacity.
A. The 05753 has a duty cycle of 20°C: 250A @ 80%. Duty cycle is measured over a 10-minute period — a 60% duty cycle means 6 minutes of continuous welding followed by a 4-minute cool-down. Operating at lower amperages increases available run time.
A. The 05753 is supplied with Pure Synergic Control. Additional consumables such as contact tips, nozzles, and electrodes are available separately.
A. The 05753 weighs 32kg. It is intended as a fixed workshop machine. Adequate assistance should be available for initial positioning.
A. The 05753 welds mild steel, stainless steel and aluminium. Different shielding gas types are recommended for different materials — refer to the product specification.
A. Synergic control automatically links wire feed speed to output voltage — adjusting one parameter causes the other to compensate, maintaining correct arc characteristics without manual balancing. This simplifies setup when changing between materials, thicknesses, or wire types, and is particularly useful in bodyshop environments where settings change frequently between jobs.
A. The 05753 does not include a foot pedal as standard. A compatible foot pedal may be available as an optional accessory — check the product listing for compatible accessories.
A. Synergic control links wire feed speed to output voltage automatically — change one parameter and the other adjusts to maintain correct arc characteristics. This means faster setup when switching between materials, thicknesses, or wire types, and more consistent weld quality. On the 05753, select the wire type, diameter, and gas, and the machine calculates the rest.
