Product Number: 04045
Variations

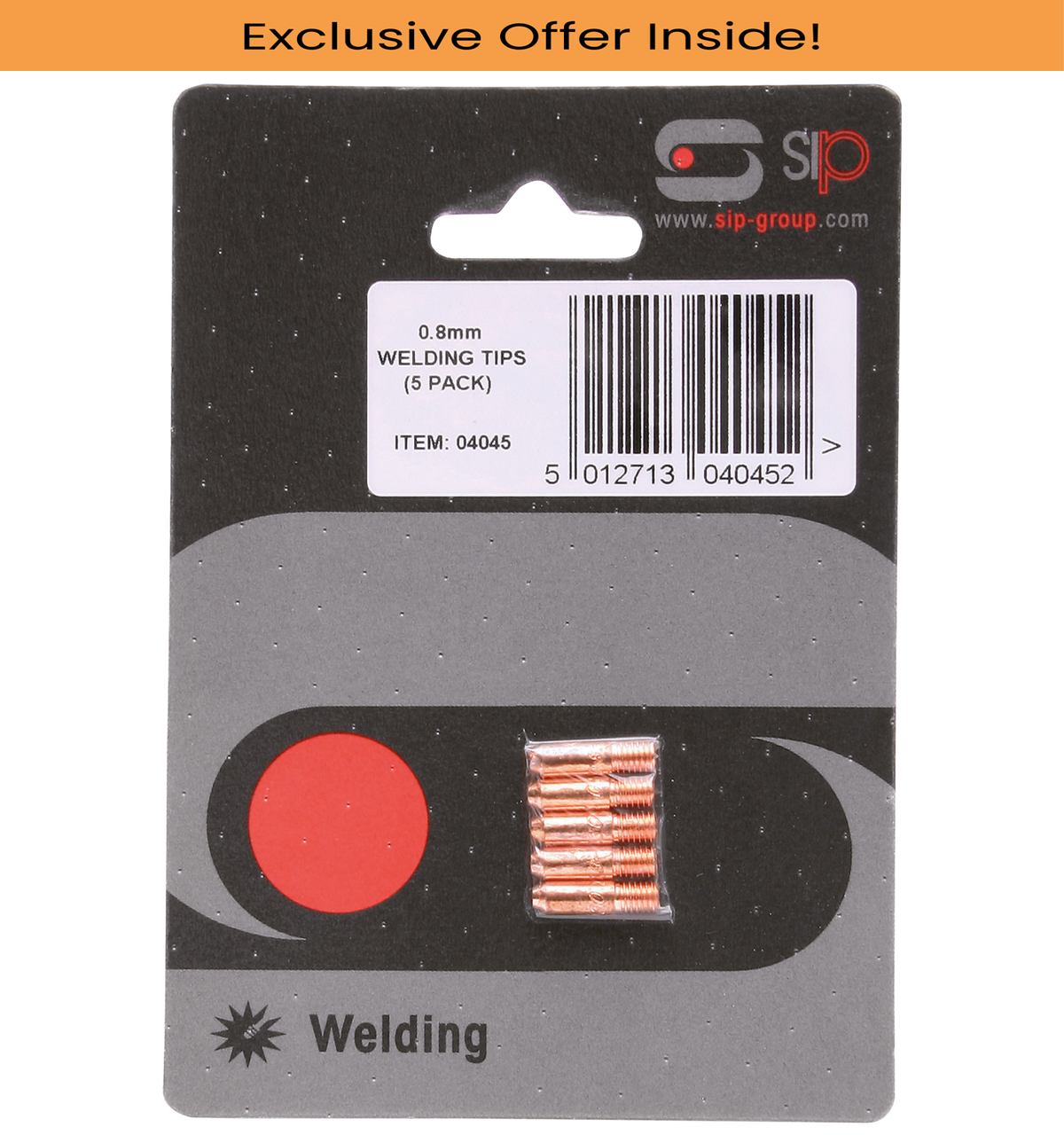

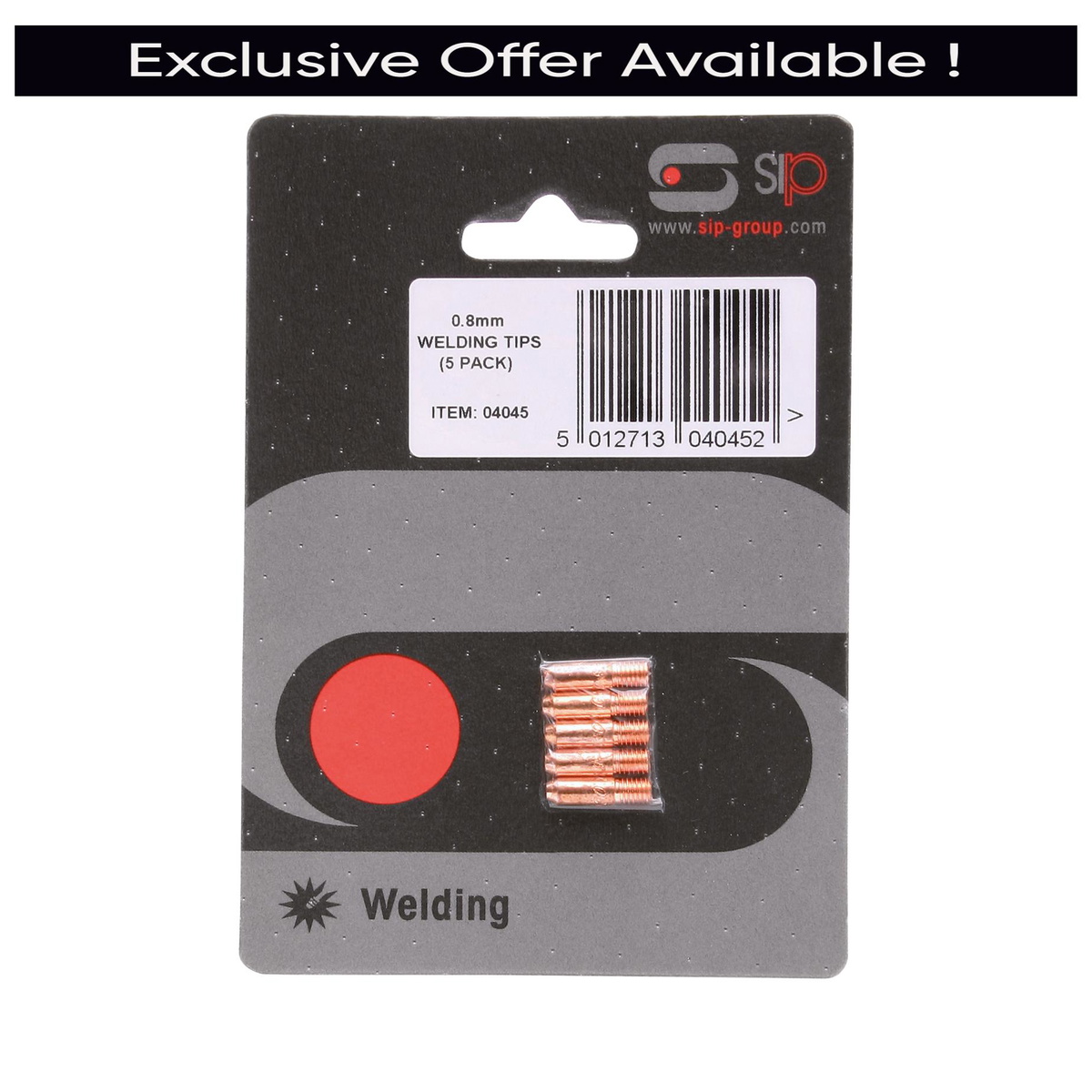

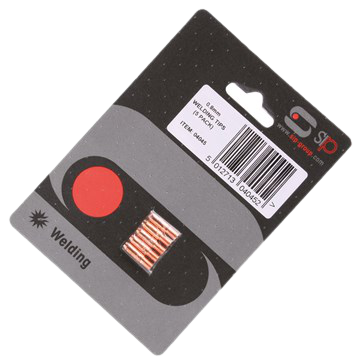

The SIP 04045 contact tip — Welding Tip M5 MIG. 8mm M5 MIG Welding Tip (mig contact tip) are manufactured from high-quality copper for reliable contact with welding wire, providing a consistent welding arc in demanding applications thanks to high conductivity and high heat resistance. High-quality copper-made 0. 8mm M5 welding tips. Compatible across the sip welding range — check product specifications for exact model fit. When ordering, search under m5 contact tip for this and compatible alternatives.
Additional Information:
The SIP 5x 0.8mm M5 MIG Welding Tips are manufactured from high-quality copper for reliable contact with welding wire, providing a consistent welding arc in demanding applications thanks to high conductivity and high heat resistance.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 04045 |
|---|---|
| Welding Tip Type | M5 MIG |
| Welding Tip Size | 5x Ø 0.80mm |
| Suitable For | N/A |
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Welding No.2 Swaged Heavy Duty Nozzle for Oxy-Acetylene Welding, 35035, Draper
£13.54
£13.27
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 09070 | 09080 | 35105 | 35035 | 35036 |
A. The SIP 04045 is bored for 0.8mm welding wire. Always match contact tip bore to wire diameter — a worn or mismatched bore causes arc instability, burn-back, and inconsistent wire feed.
A. Check the product specification for compatible torch models and thread sizes. Contact tips use either M6 or M8 thread depending on torch type (MB14/15 or MB25/36). Confirm the thread pitch before ordering.
A. Replace when: the bore shows visible wear or elongation, arc instability increases, spatter frequency rises, or burn-back to the tip becomes frequent. Worn tips are a common cause of poor MIG performance — regular replacement is more cost-effective than troubleshooting machine settings.
A. Good practice is to replace the tip, nozzle, and diffuser whenever you replace the liner — they wear together and mismatched wear states reduce performance. A new liner with a worn tip will still produce poor results.
A. Contact tips should be tightened firmly with a contact tip spanner or hex key — typically hand-tight plus a small snug. Over-tightening can crack the tip or distort the torch body thread. Under-tightening causes arcing at the tip thread, overheating, and poor electrical contact.
A. Not significantly — anti-spatter protects the nozzle but has minimal effect on the contact tip bore. Tip wear is mainly caused by the wire abrading the bore during feeding, not spatter. The main factors affecting tip life are wire quality, liner condition, and correct wire diameter matching.
A. Standard tips (usually copper) are cost-effective and widely available. Long-life tips (chrome zirconia copper or other alloys) have better wear resistance and conductivity at elevated temperatures — suitable for high-duty cycle production welding. For DIY and light fabrication use, standard tips are appropriate.
A. Check the product listing for pack quantity. Contact tip packs typically contain 5 or 10 tips. For production welding, buy in larger packs — tips are consumable items that should be replaced regularly.
A. MIG tips and nozzles are torch-specific. Check your machine's torch type — common types include MB14, MB15, MB25, and MB36. The contact tip thread size must match your torch body. The tip bore size must match your wire diameter. Using the wrong tip or nozzle will cause poor wire feed and inconsistent welds.
A. Yes — UK stocked for fast despatch. Check availability at PartsForMachines.com. Orders placed before the daily cut-off are dispatched same or next working day. Check the product page for current delivery estimates.
