Product Number: 02735

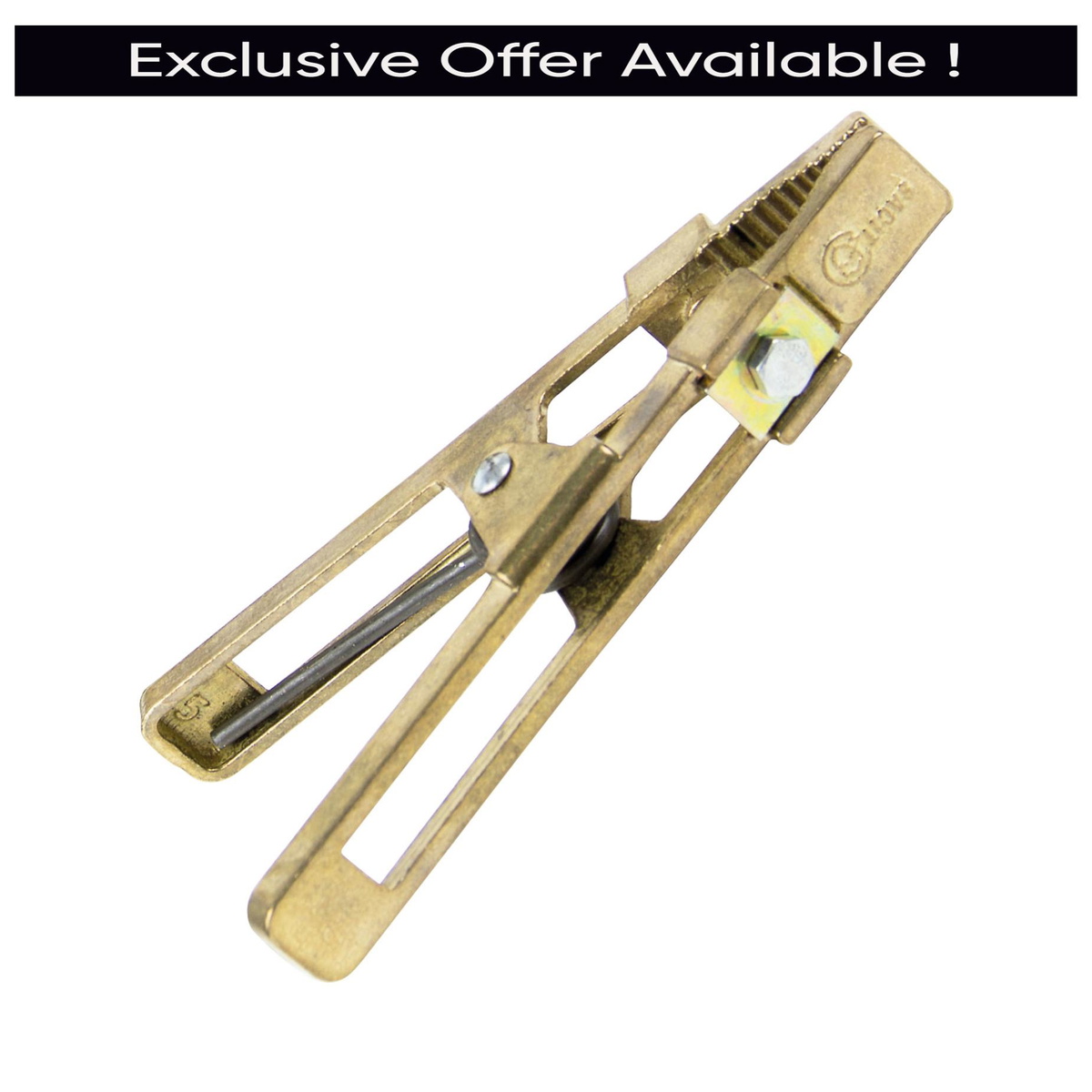

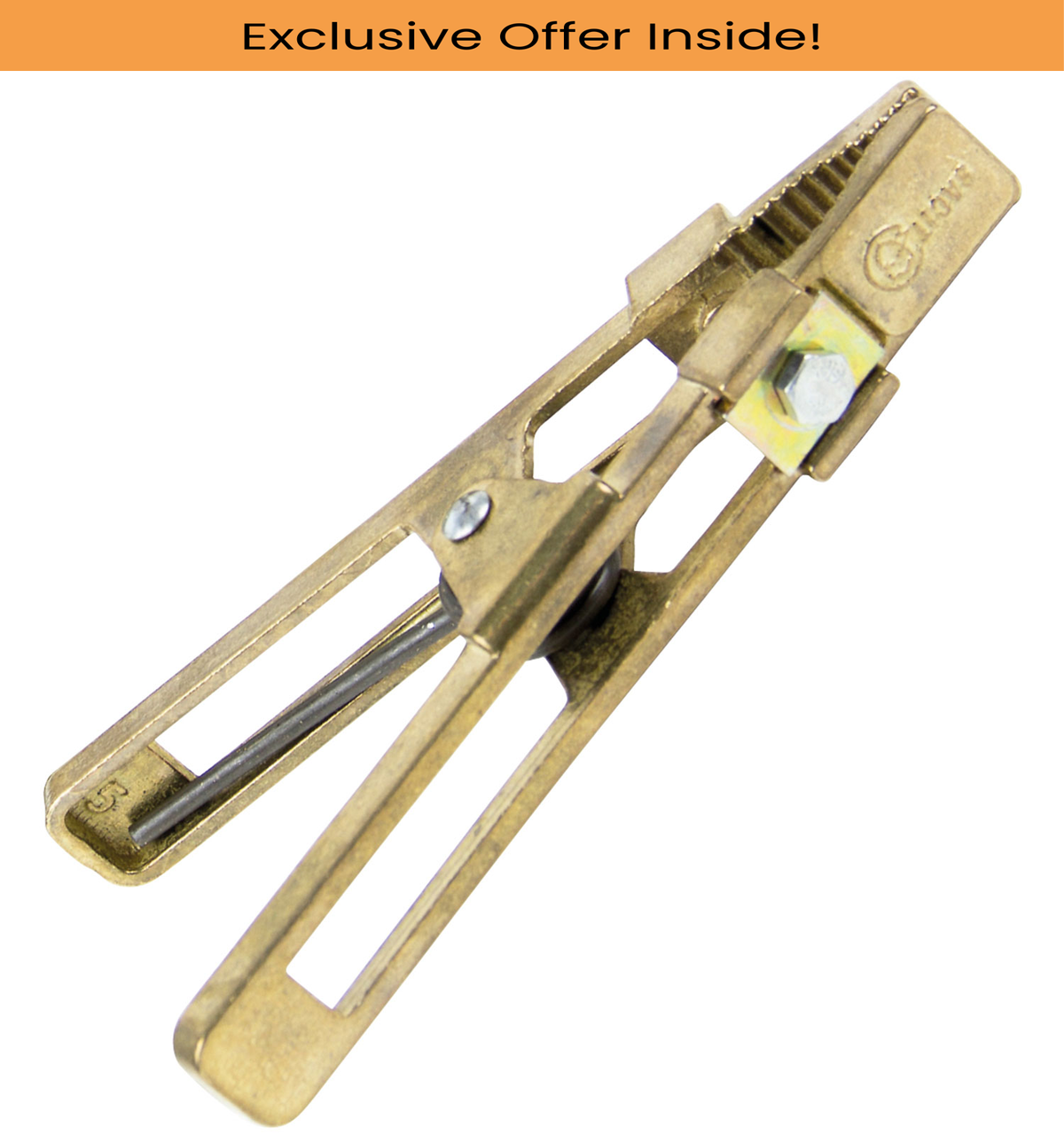

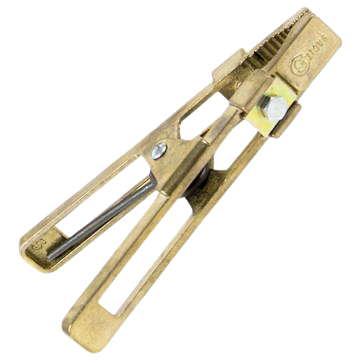

The SIP 02735 earth clamp. The SIP 25mm² Steel Earth Clamp is manufactured from high-quality and heavy-duty steel which helps to provide increased durability and hard-wearing performance in a range of demanding welding applications and environments. 25mm² Earth clamp manufactured from heavy-duty steel. Robust design provides increased durability and hard-wearing use. Compatible across the sip welding, sip earth clamps welding range — check product specifications for exact model fit. Also known as welding earth clamp or ground clamp in welding supplies catalogues.
Additional Information:
The SIP 25mm² Steel Earth Clamp is manufactured from high-quality and heavy-duty steel which helps to provide increased durability and hard-wearing performance in a range of demanding welding applications and environments.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 02735 |
|---|---|
| Clamp Type | Earth |
| Construction | Steel |
| Pack Height (mm) | 280 |
| Pack Width (mm) | 120 |
| Pack Depth (mm) | 30 |
| Pack Gross (g) | 1000 |
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | 07648 | 07649 | 11951 | 14027 |
A. The SIP 02735 is rated at 300A, which is sufficient for most MIG, TIG, and ARC welding applications at that output level. Always ensure your earth clamp rating meets or exceeds your machine's maximum output current.
A. Compatible with: CROSARC CAP0253 and CAP0254 (and 7 more); Clarke MIG200 and 220A (and 5 more); Draper 70052 and 70057 (and 22 more); SIP 05705 and 05732 (and 56 more)
A. Attach as close to the weld as possible on clean, bare metal. Remove paint, rust, or mill scale at the contact point — even a thin film of oxide increases resistance. Avoid clamping to welding tables or fixtures that are not electrically connected to the workpiece — current will find an alternative path, which can damage bearings or electronic components nearby.
A. The earth clamp completes the welding circuit. A poor connection creates resistance which manifests as arc instability, excessive spatter, and inconsistent penetration — all often mistaken for a machine fault or incorrect settings. Before adjusting machine settings, always check the earth clamp connection first. A 300A rated SIP clamp like the 02735 provides a low-resistance path for the full welding current.
A. Overheating means either the clamp is undersized for your current draw, the contact point has poor connection (paint, rust, or weak spring pressure), or the cable is damaged or undersized. The SIP 02735 is rated at 300A — if you're regularly welding at or above this level, upgrade to a higher-rated clamp.
A. Check the product specification for cable length and conductor size. Earth cable cross-section should match or exceed the welding current — undersized cable creates resistance and overheats. If your machine came with a cable and you're replacing the clamp only, ensure the new clamp's connector matches your existing cable termination.
A. Yes — the SIP 02735 earth clamp can be used on aluminium workpieces. Aluminium's oxide layer creates contact resistance, so scratch through the oxide at the clamping point before attaching. A larger jaw capacity improves contact on aluminium extrusions and plate.
A. The SIP 02735 connects to your welder's earth (negative) socket via the cable connector. Most modern inverter welders use a Dinse or twist-lock connector. Check your machine's earth socket type before ordering — the connector type is listed in the product specification.
A. Pre-weld cleaning removes rust, paint, oil, and mill scale that cause porosity, weak fusion, and spatter. Post-weld cleaning removes slag and discolouration for inspection and appearance. A wire brush is the most common tool — use stainless steel brushes on stainless steel to avoid contamination, and carbon steel brushes on mild steel.
A. Compatible with: CROSARC CAP0253 and CAP0254 (and 7 more); Clarke MIG200 and 220A (and 5 more); Draper 70052 and 70057 (and 22 more); SIP 05705 and 05732 (and 56 more) Confirm the connector type at the cable end matches your machine's earth socket — Dinse 35/50 or twist-lock are the most common types on SIP machines.
