Product Number: LVLP01

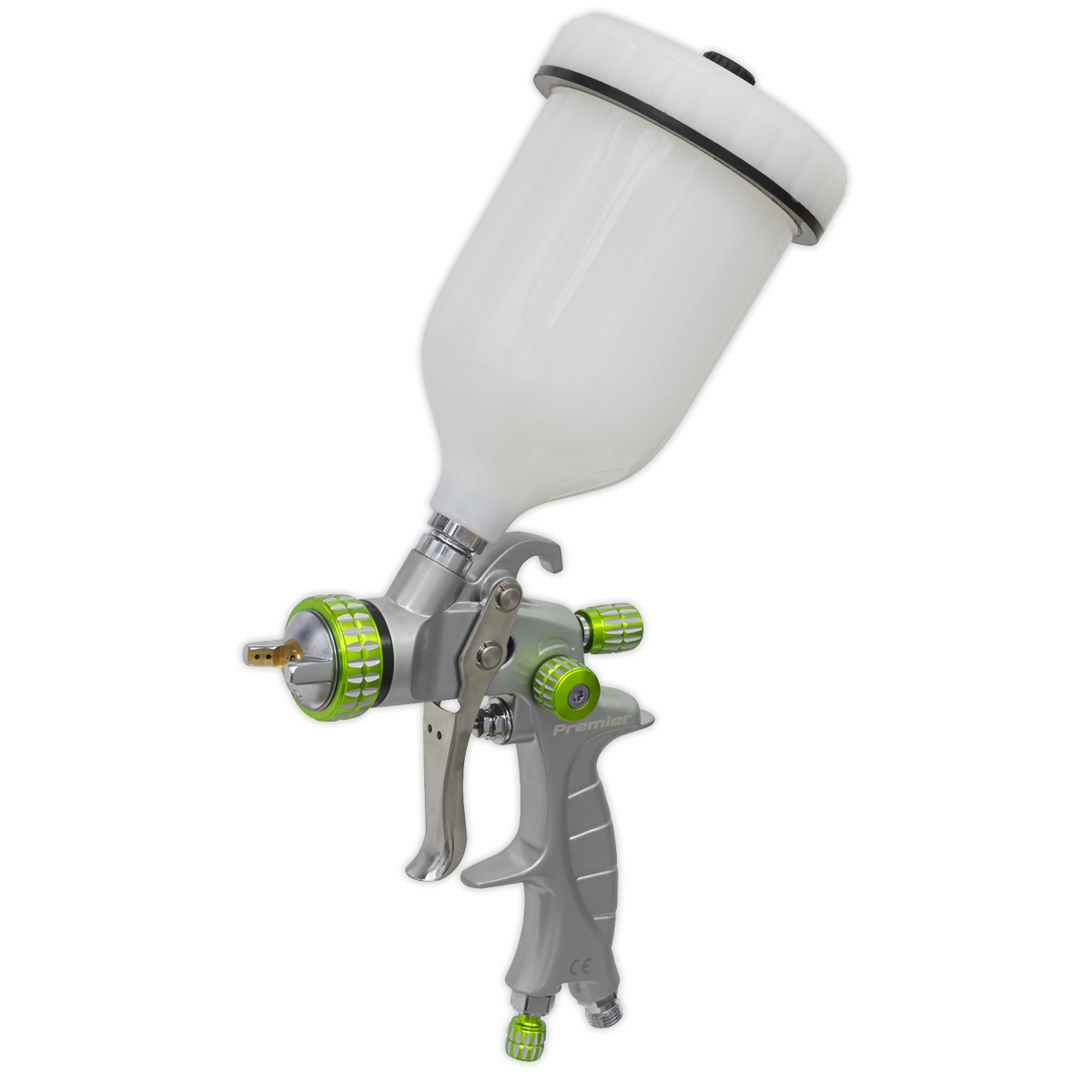

Achieving a smooth, even finish when spraying base coats or clear coats demands consistent atomisation and precise control inconsistent pressure or poor needle adjustment leads to orange peel, runs, and wasted material. The Sealey LVLP01 addresses this with LVLP (Low Volume Low Pressure) technology and precision engineering that delivers consistent results across both solvent and water-based paints. The gravity feed design with a 600ml pot capacity keeps material flowing smoothly without the need for high inlet pressures, operating at just 17-22psi with an air consumption of 8.2cfm. Independent air and paint flow controls allow fine adjustment of the spray pattern to suit the job. Fluid passages, needle, nozzle, air cap, and air valve are all stainless steel, making the gun compatible with the full range of paint types without corrosion risk. The standard set-up is 1.4mm, with 1.2mm, 1.3mm, 1.7mm, and 1.8mm set-ups also available to suit different coating viscosities. The LVLP01 holds ATEX approval, confirming it is safe for use in explosive atmospheres as it produces no source of ignition during use. Backed by a 3-year guarantee.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | LVLP01 |
|---|---|
| Air Consumption | 8.2cfm |
| Available Set-Up(s) | 1.2, 1.3, 1.7, 1.8mm |
| Brand | Premier |
| Nett Weight | 0.7kg |
| Pot Capacity | 600ml |
| Recommended Air Pressure | 17-22psi |
| Standard Set-Up | 1.4mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey HVLP05 HVLP Gravity Feed Spray Gun 1.3mm Set-Up
£146.90
£144.02
2% OFF
Free delivery in UK Mainland
|
Sealey HVLP04 HVLP Gravity Feed Touch-Up Spray Gun 1mm Set-Up
£87.52
£85.80
2% OFF
Free delivery in UK Mainland
|
||||||||
| Technical Specification | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | HVLP01 | HVLP05 | HVLP741 | HVLP742 | SSG503 | HVLP04 | SG02P | SG01P | 02136 | 09709 |
| Application Type | Spray Gun | Spray Gun | Spray Gun | Spray Gun | ||||||
| Tank Capacity(ml) | 600 | 100 | 100 | |||||||
| Nozzle Size(mm) | 1.4, 1.7 | 1 | ||||||||
A. LVLP (Low Volume Low Pressure) uses lower air volume than HVLP (High Volume Low Pressure), which can make it suitable for use with smaller compressors while still delivering fine atomisation. The LVLP01 operates at 17-22psi with an air consumption of 8.2cfm. For HVLP alternatives, see HVLP01, HVLP05, HVLP741, and HVLP742 listed as alternatives to this product.
A. The LVLP01 comes as standard with a 1.4mm set-up. Other available set-ups in the range are 1.2mm, 1.3mm, 1.7mm, and 1.8mm, allowing you to select the configuration best suited to the paint viscosity and finish required.
A. Yes. The stainless steel fluid passages, needle, nozzle, air cap, and air valve make the LVLP01 compatible with both solvent and water-based paints.
A. Yes. The LVLP01 carries ATEX approval, confirming it is safe for use in explosive atmospheres as it does not produce any source of ignition when used.
A. The gravity feed pot has a capacity of 600ml. The gun features independent air flow and paint flow controls for fine adjustment of the spray pattern.
A. The LVLP01 is backed by a 3-year guarantee.
A. Yes. HVLP01, HVLP05, HVLP741, and HVLP742 are listed as alternative spray guns that perform a similar function using HVLP technology. Please refer to those product listings or contact Parts for Machines for further specification details.
