Product Number: HVLP04

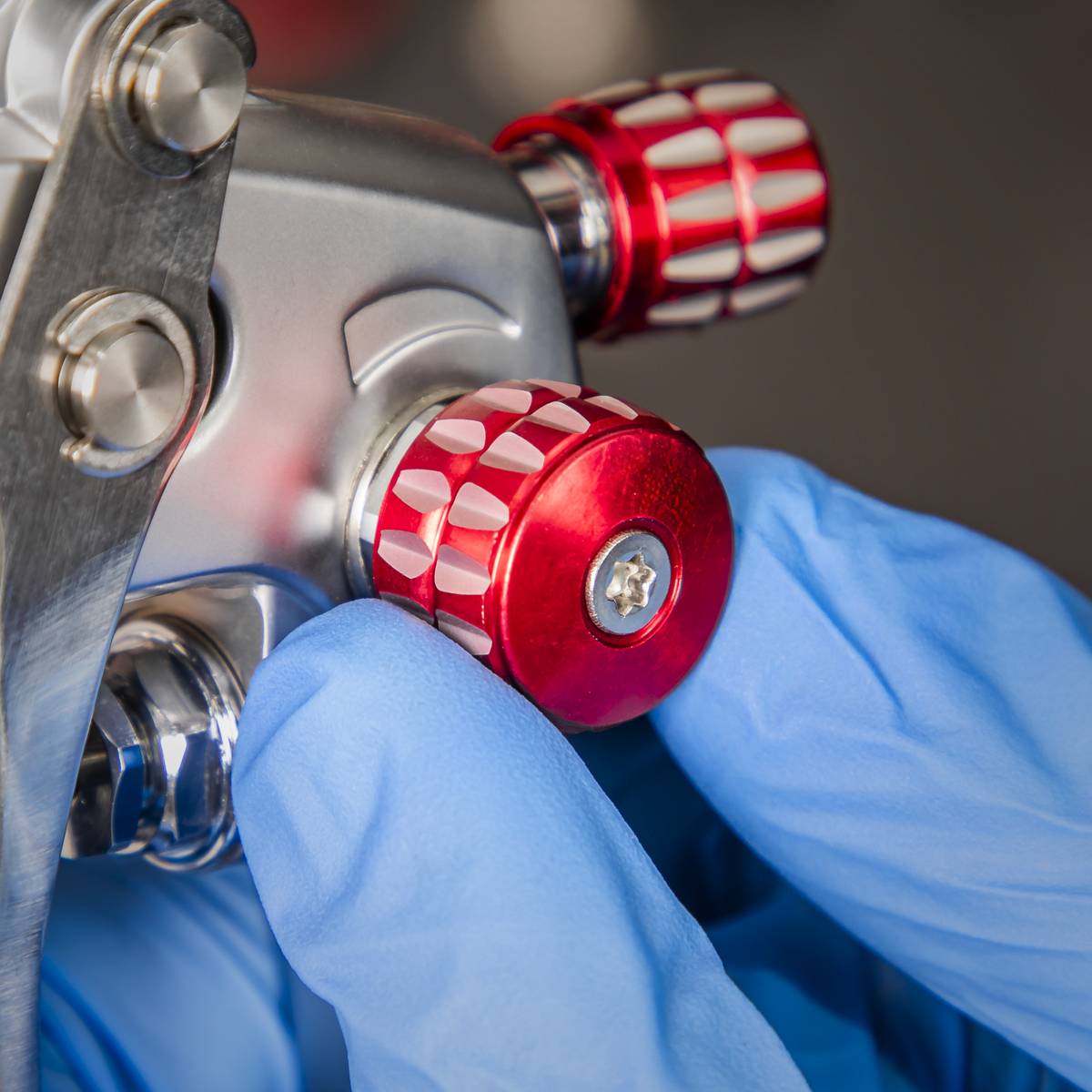

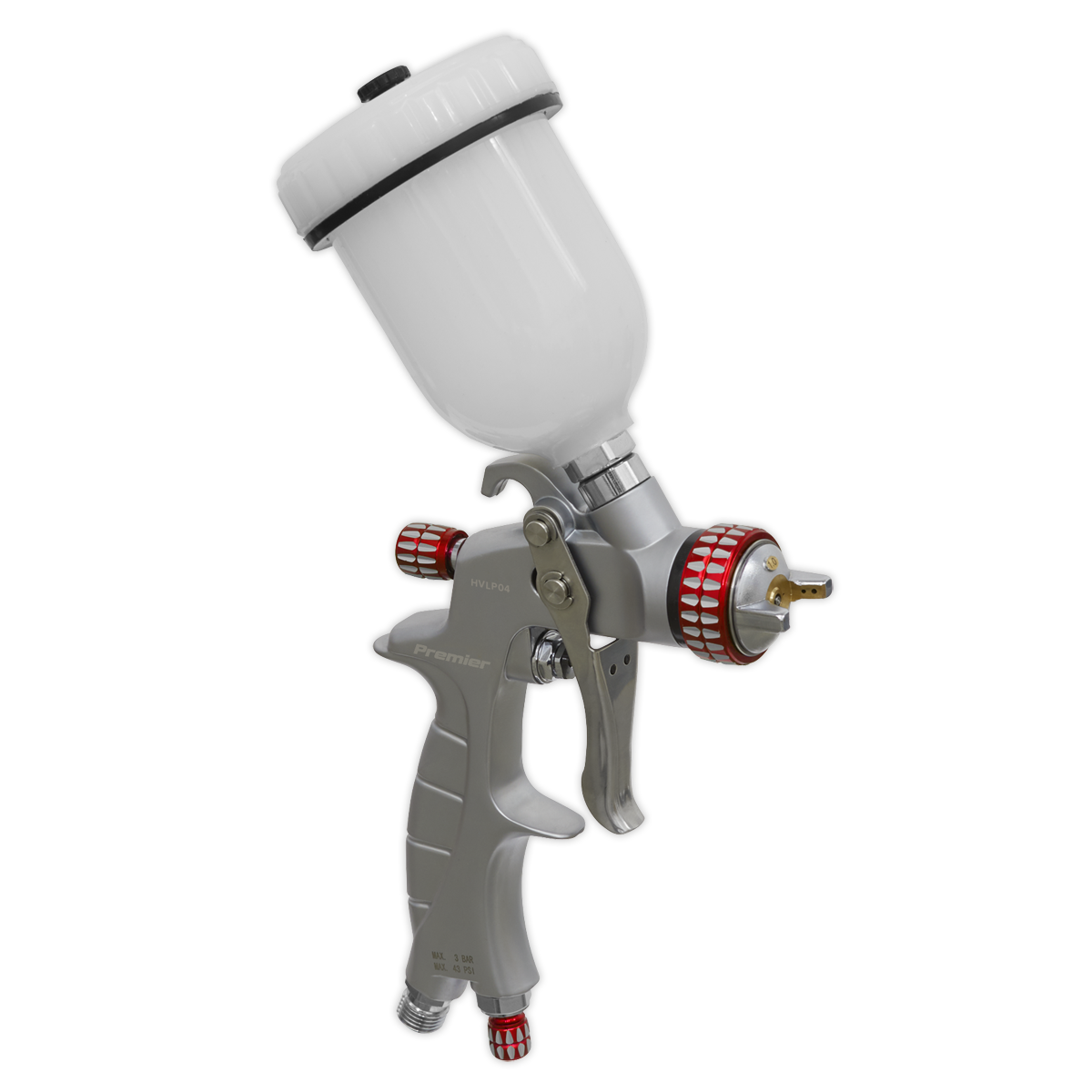

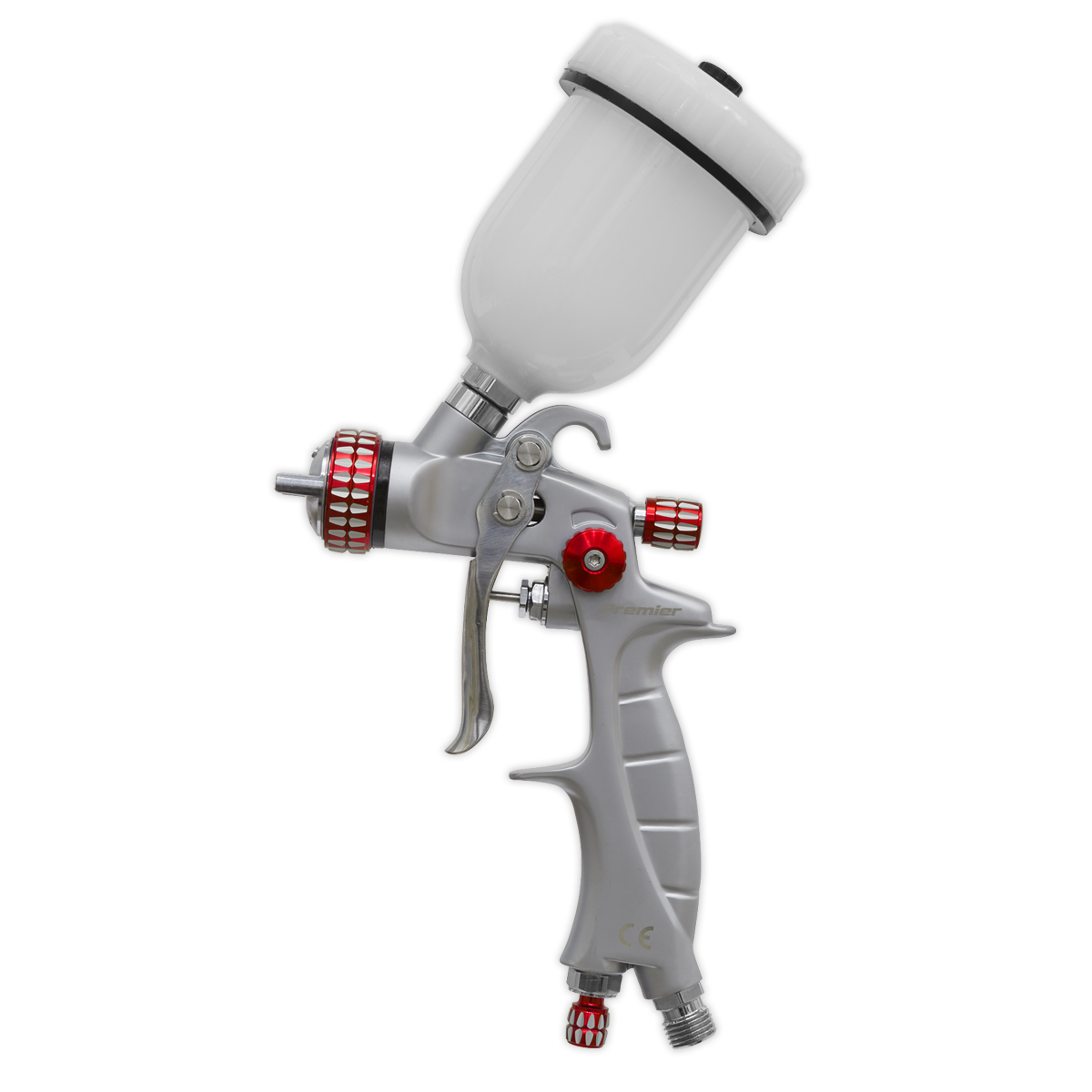

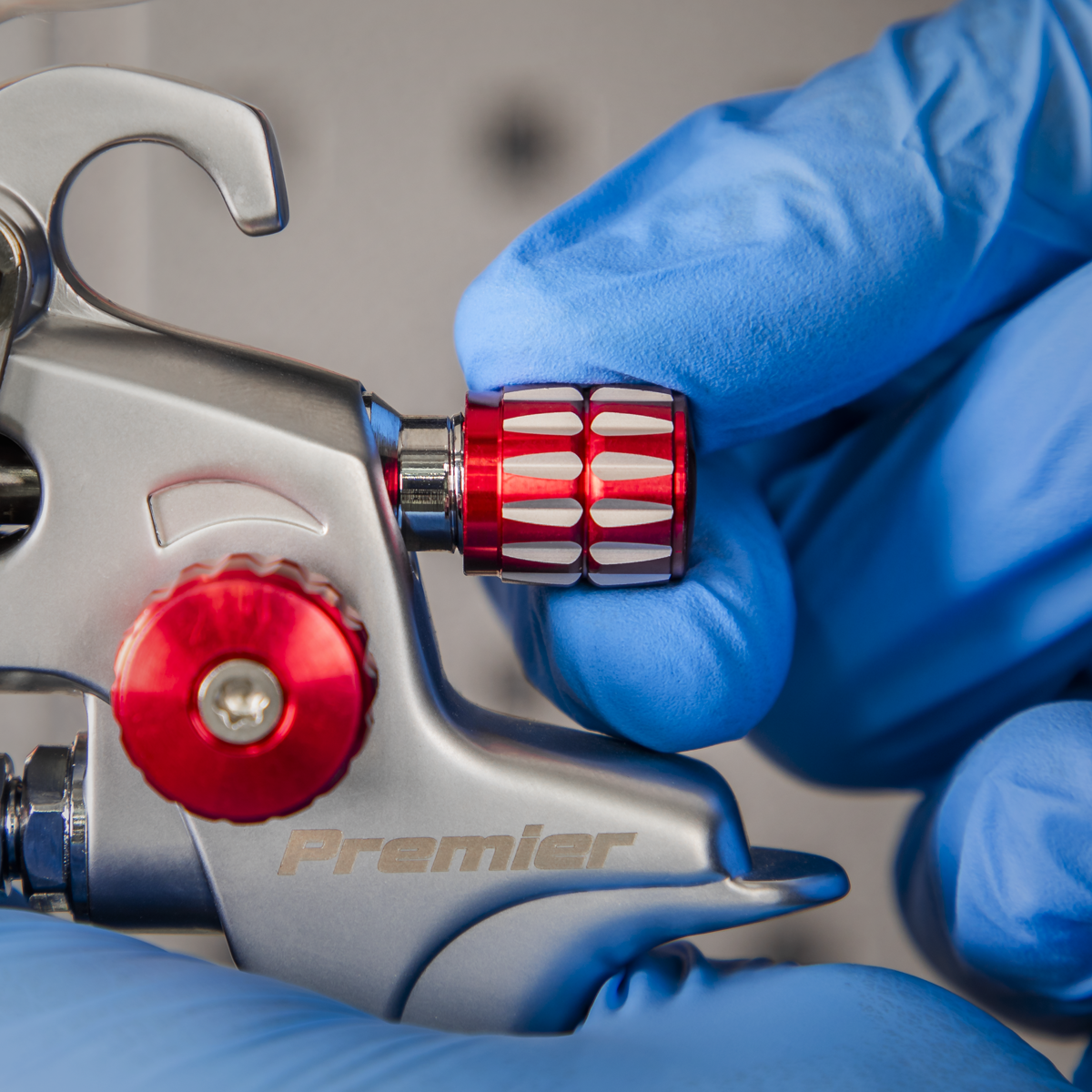

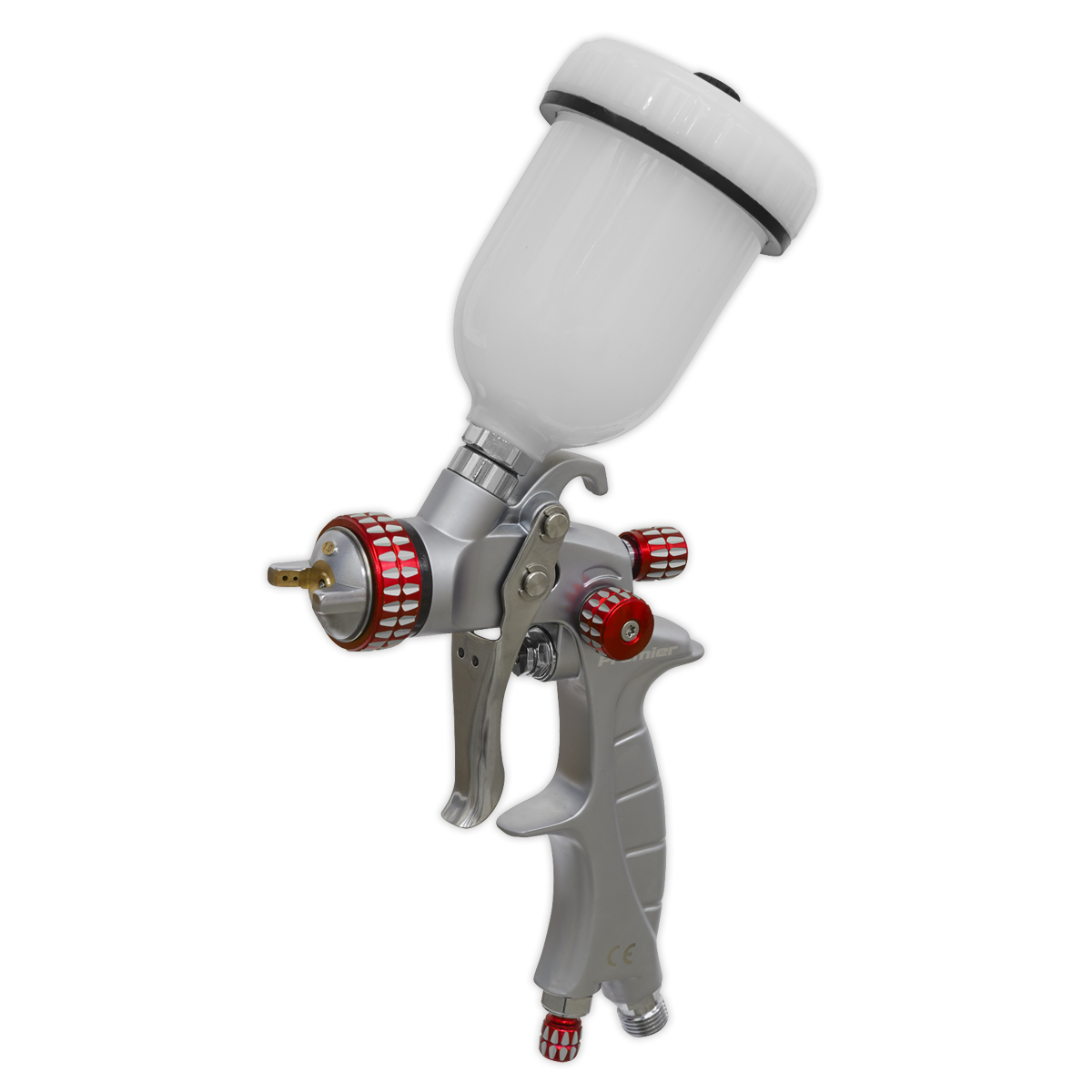

Achieving a smooth, even finish when blending or touching in small panel areas demands precise control over both paint and air flow something that general-purpose spray guns struggle to provide. The Sealey HVLP04 is a professional gravity feed touch-up spray gun with a 1mm standard set-up, designed specifically for blowing-in small areas of panel where fine control is essential. HVLP technology and precision engineering combine to deliver consistent results. The gun features independent air and paint flow controls for fine adjustment of the spray pattern, and a 100ml pot capacity suits small-volume touch-up work. The brass air cap, stainless steel needle, and stainless steel nozzle make it compatible with both solvent and water-based paints. ATEX approved this product is safe to use in explosive atmospheres as it does not produce any source of ignition when used correctly. An available 0.8mm set-up is also supported: for the 0.8mm Fluid Nozzle order HVLP04.10A, for the 0.8mm Air Cap order HVLP04.11A, and for the 0.8mm Fluid Needle order HVLP04.39A. Backed by a 3-year guarantee.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | HVLP04 |
|---|---|
| Air Consumption | 7cfm |
| Available Set-Up(s) | 0.8mm |
| Brand | Premier |
| Nett Weight | 0.52kg |

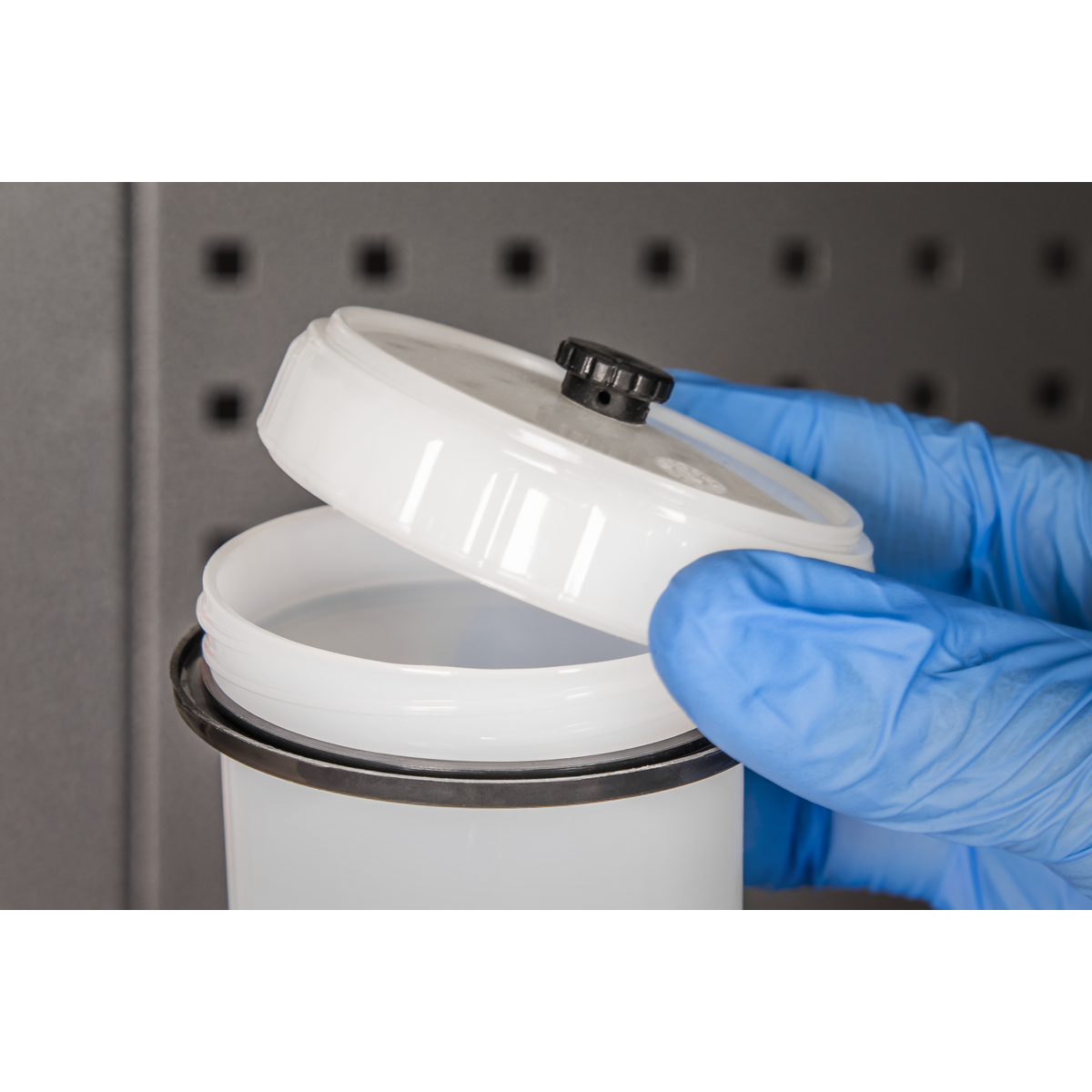

| Pot Capacity | 100ml |
| Recommended Air Pressure | 22psi |
| Standard Set-Up | 1mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | SSG503 | LVLP01 | SG02P | SG01P | 02136 | 09709 |
| Type | Air Blow, Spray & Grease Gun | Air Blow, Spray & Grease Gun | Air Blow, Spray & Grease Gun | Air Blow, Spray & Grease Gun | ||
| Brand | Premier | PCL | PCL | |||
| Air Consumption | 4.5 | |||||
| Available Set-Up(s) | 1.8 | |||||
| Capacity (L) | 24 | 226 | ||||
| EAN | 5014875180205 | 5014875180199 | ||||
| Max Pressure (psi) | 22 | 36 | 43 | |||
| Model No | 503 | |||||
| Nett Weight | 0.44 | |||||
| Weight (kg) | 0.44 | 0.7 | 1.8 | |||
| Show More | ||||||
A. The HVLP04 comes with a standard 1mm set-up as standard. A 0.8mm set-up is also available via separately ordered parts.
A. The recommended air pressure is 22psi and air consumption is 7cfm.
A. Yes. The brass air cap with stainless steel needle and nozzle makes the gun suitable for both solvent and water-based paints.
A. Yes. Additional set-up components are available separately - order HVLP04.10A for the 0.8mm Fluid Nozzle, HVLP04.11A for the 0.8mm Air Cap, and HVLP04.39A for the 0.8mm Fluid Needle.
A. The pot capacity is 100ml, making it well suited to touch-up and small panel repair work.
A. Yes. The HVLP04 carries ATEX approval and is safe to use in explosive atmospheres as it does not produce any source of ignition when used as intended.
A. The HVLP04 is backed by a 3-year guarantee.
A. The HVLP04 sits within a range of HVLP gravity feed spray gun variants. Related variants include HVLP-79/P, HVLP-79/P1, HVLP01, and HVLP05. Please refer to individual product listings or contact Parts for Machines for details of the specific differences between versions.
A. Yes. The S631 is listed as an alternative product that performs a similar function. Please refer to that product listing for full details.
A. Standard UK mainland delivery is 3-5 working days.
