Product Number: HVLP742

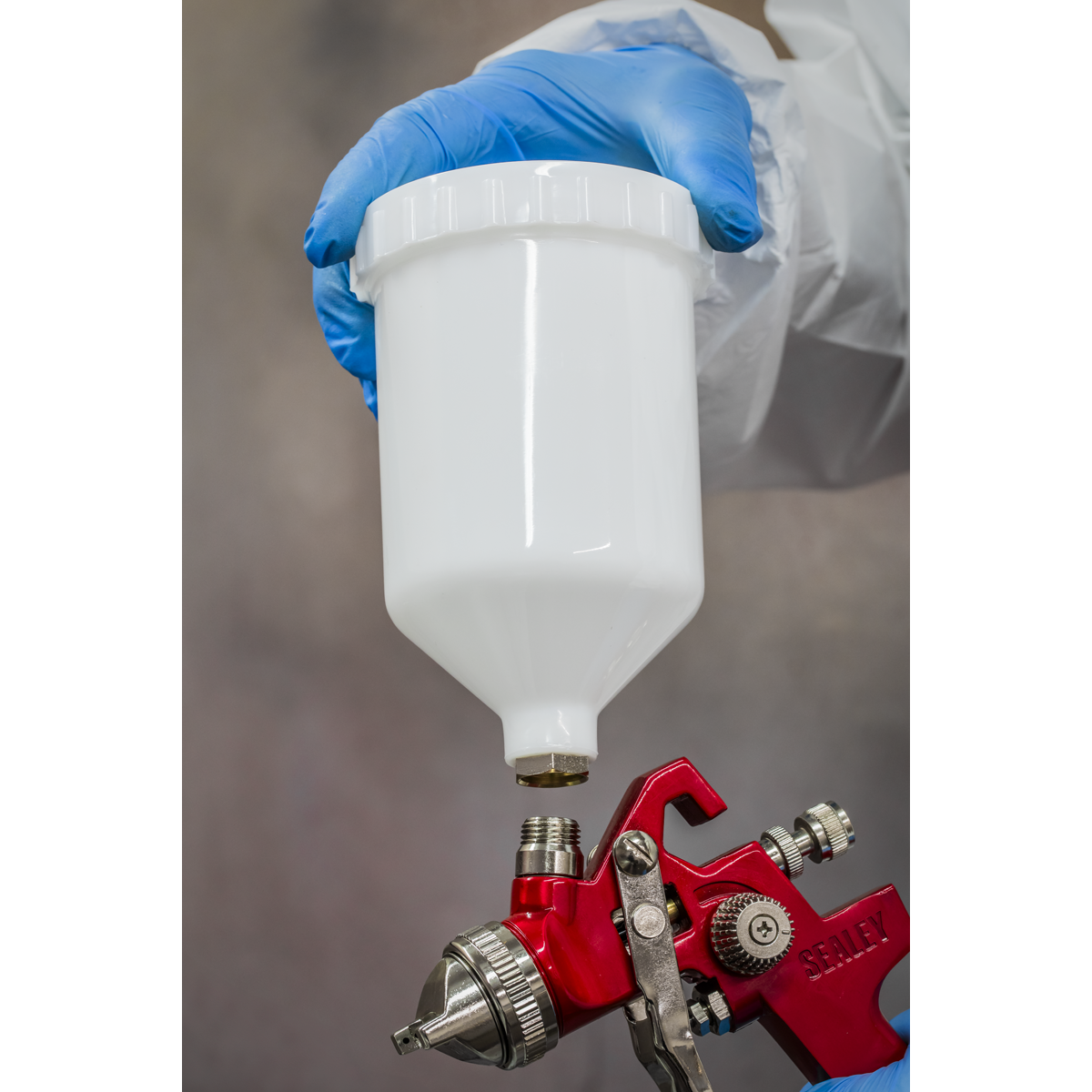

Applying high viscosity paints such as primer or undercoat demands a spray gun that can handle the material without clogging or uneven coverage. The Sealey HVLP742 is a gravity feed HVLP spray gun supplied in a 2mm standard set-up, making it well suited to priming and undercoating work. The aluminium air cap combined with a stainless steel needle and nozzle means the gun is compatible with water based paints as well as conventional coatings. A round/flat fan control lets you adjust the spray pattern to suit the job in hand, whether you need a wide fan for broad panels or a tighter round pattern for detail work. The 600ml pot offers a useful working capacity, and the gun operates at a recommended air pressure of 43psi with an air consumption of 15cfm. For finer finishing work, additional set-ups are available: order HVLP742.33 for a 1.4mm nozzle or HVLP742.34 for a 1.7mm nozzle.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | HVLP742 |
|---|---|
| Air Consumption | 15cfm |
| Available Set-Up(s) | 1.4, 1.7mm |
| Brand | Sealey |
| Nett Weight | 0.07kg |
| Pot Capacity | 600ml |
| Recommended Air Pressure | 43psi |
| Standard Set-Up | 2mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 9706 Gravity Feed HVLP Air Spray Gun, 600ml
£78.12
£76.59
2% OFF
Free delivery in UK Mainland
|
|||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | HVLP741 | HVLP01 | 09709 | 09706 | SG02P | 02131 |
| Type | Air Blow, Spray & Grease Gun | Air Blow, Spray & Grease Gun | Air Blow, Spray & Grease Gun | Air Blow, Spray & Grease Gun | Air Blow, Spray & Grease Gun | |
| Brand | Sealey | Premier | PCL | |||
| Capacity (L) | 226 | 400 | ||||
| EAN | 5014875180205 | |||||
| Max Pressure (psi) | 43 | 43 | 43 | 43 | 43 | |
| Weight (kg) | 82 | 94 | 1.8 | 55 | ||
A. The HVLP742 comes supplied as a 2mm set-up as standard, which makes it ideal for applying high viscosity paints such as primer or undercoat.
A. Yes. The aluminium air cap with stainless steel needle and nozzle makes this gun suitable for use with water based paints.
A. The gravity feed pot has a capacity of 600ml.
A. The recommended air pressure is 43psi and air consumption is 15cfm.
A. Yes. The round/flat fan control allows the spray pattern to be adjusted to suit any job.
A. Yes, additional set-up variants are available. For a 1.4mm nozzle order model HVLP742.33, and for a 1.7mm nozzle order model HVLP742.34.
A. The HVLP742 range includes the HVLP742.33 (1.4mm set-up) and HVLP742.34 (1.7mm set-up) in addition to this 2mm standard version. Other variants in the wider Sealey HVLP gravity feed range include HVLP-79/P, HVLP-79/P1, HVLP01, and HVLP04.
A. Yes. Alternative products that perform a similar function include the HVLP741, LVLP01, S641G, and S642G - these are different guns that may suit different applications or working pressures.
A. The model code is HVLP742. For compatibility with your specific compressor setup, please refer to the product label for guidance, or contact Parts for Machines for confirmation.
