Product Number: 09708
Variations

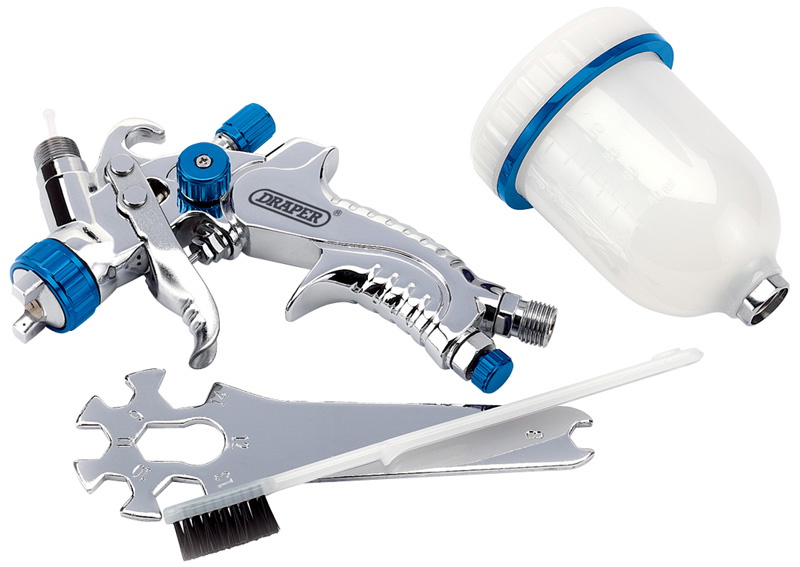

Achieving a consistent, high-quality finish with conventional spray equipment often means excessive overspray and wasted material. The Draper 9708 Gravity Feed HVLP Air Spray Gun addresses this with a full metal aluminium body construction and an HVLP (High Volume Low Pressure) delivery system designed to maximise paint transfer efficiency and minimise bounce-back during application. The gun accepts all paint types including water-based formulations, making it suitable for a broad range of workshop and Bodyshop finishing tasks. A variable fan pattern and fully adjustable flow control allow the operator to dial in the precise coverage and material feed required for the job at hand. The 1.0mm fluid nozzle delivers a fluid delivery rate of 70–110ml/min from the 100ml gravity-feed cup. Operating air pressure is 43psi (3 Bar) with an average air consumption of 8cfm (226 l/min). The air inlet is 1/4" BSP and the gun weighs 0.276kg. Spare nozzle, needle and cap sets are available separately. Supplied in a display carton complete with a cleaning brush and service spanner. Operators requiring alternative nozzle configurations should refer to the spare parts table for compatible sets.
General purpose HVLP spray gun with aluminium body. Suitable for use with all paint types including water-based. Variable fan and fully adjustable flow. Spare nozzle, needle and cap sets are available - see table. Display carton.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Air Inlet | 1/4" BSP |
|---|---|
| Average Air Consumption | 8cfm (226 l/min) |
| Fluid Delivery Rate | 70-110ml/min |
| Fluid Nozzle Size | 1.0mm |
| Operating Air Pressure | 43psi (3 Bar) |
| Weight | 0.276kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|

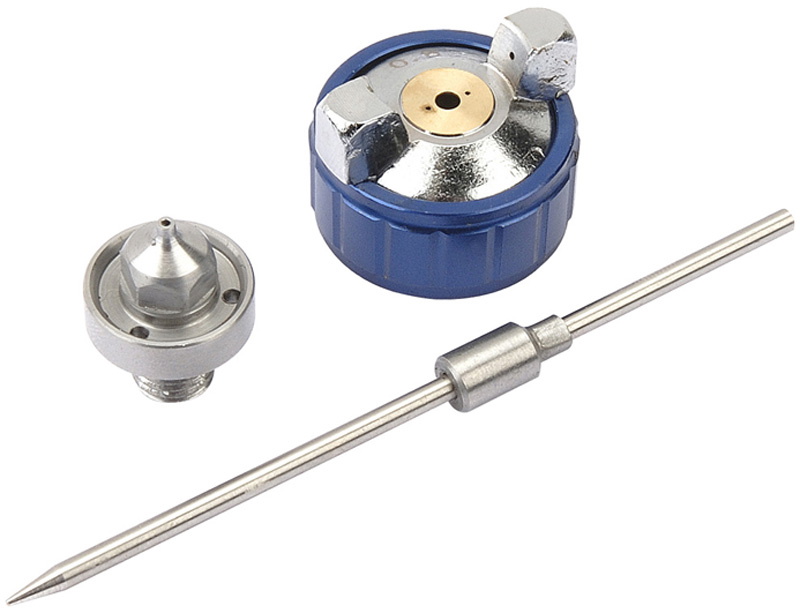

13836 | Draper Spare 0.8mm Nozzle, Needle and Cap Set for Spray Guns 09708 and 09709 | 1 Unit |
£22.83
£22.38
|
Add |
|
13837 | Draper Spare 1.0mm Nozzle, Needle and Cap Set for Spray Guns 09708 and 09709 | 1 Unit |
£22.87
£22.42
|
Add |
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 9706 Gravity Feed HVLP Air Spray Gun, 600ml
£78.12
£76.59
2% OFF
Free delivery in UK Mainland
|
Draper 9707 HVLP Air Spray Gun with Composite Body and Gravity Fed Hopper, 600ml
£59.84
£58.67
2% OFF
Free delivery in UK Mainland
|
|||||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02131 | 02132 | 02136 | 02137 | 02138 | 13198 | 09706 | 09707 | 09709 | 15875 | 30911 | 70830 | 82131 | 92971 | 21526 |
| Type | Air Blow, Spray & Grease Gun | Air Blow, Spray & Grease Gun | Air Blow, Spray & Grease Gun | Air Blow, Spray & Grease Gun | Air Blow, Spray & Grease Gun | Air Blow, Spray & Grease Gun | Air Blow, Spray & Grease Gun | Air Blow, Spray & Grease Gun | |||||||
| Air Consumption | 170 | ||||||||||||||
| Capacity (L) | 400 | 400 | 226 | 1 | |||||||||||
| Max Pressure (psi) | 43 | 65 | 36 | 65 | 43 | 43 | 43 | 43 | 60 | 60 | |||||
| Weight (kg) | 55 | 375 | 1.8 | 0.92 | 33 | 1.0 | |||||||||
A. The Draper 9708 is suitable for use with all paint types, including water-based paints.
A. The fluid nozzle size is 1.0mm.
A. The operating air pressure is 43psi (3 Bar) and average air consumption is 8cfm (226 l/min).
A. The air inlet is 1/4" BSP.
A. The fluid delivery rate is 70–110ml/min.
A. Yes. Spare nozzle, needle and cap sets are available separately — please refer to the spare parts table for compatible options.
A. The gun is supplied with one spray gun, one cleaning brush and one service spanner.
