Product Number: 92971

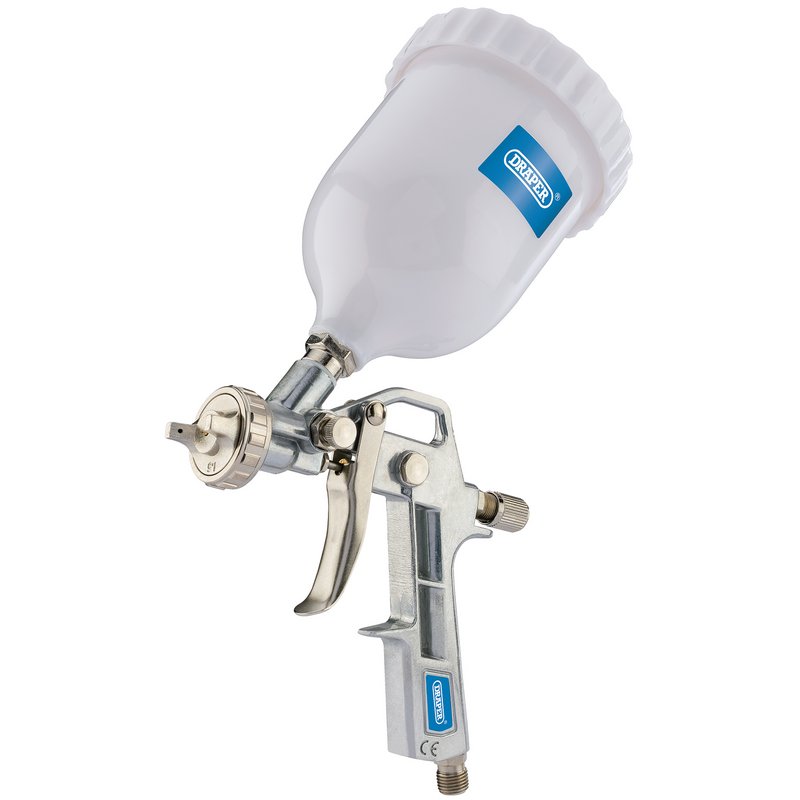

Achieving a consistent, professional finish when spraying paint demands precise control over both fluid delivery and fan pattern. The Draper 92971 is an HVLP (high volume low pressure) gravity feed air spray gun designed to address this directly, combining maximum paint transfer efficiency with minimal bounce back to reduce waste and improve surface coverage. The gun's variable fan position and fully adjustable airflow allow the operator to adapt spray characteristics to the task at hand, whether laying down a broad coat or targeting a tighter area. The gravity-fed 500ml cup positions paint directly above the fluid nozzle, promoting consistent feed without the need for high inlet pressures. Compatibility extends to all paint types including water-based formulations, making the gun suitable for a wide range of workshop and bodywork applications. The lightweight aluminium body keeps fatigue to a minimum during extended use, with the gun weighing just 0.33kg. The 1.5mm nozzle is paired with an operating pressure range of 45–50psi, a maximum operating pressure of 60psi (4.1 bar), and an air consumption of 175 litres per minute (6 CFM). Fluid delivery is rated at 160–270ml per minute. The air inlet is a standard 1/4" BSP fitting, and the gun is supplied complete with a 1/4" BSP airline connector ready for immediate connection to a workshop compressor.Supplied as: 1 x Gravity Feed Air Spray Gun, 500ml.
This gravity feed air spray gun has a lightweight aluminium body. It is suitable for use with all paint types including water based. Its variable fan position and fully adjustable flow helps ensure maximum paint transfer efficiency with minimal bounce back. Supplied with 1/4" BSP airline connector.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Air consumption | 14 cfm |
|---|---|
| Nozzle size | 1.5mm |
| Air inlet | 1/4" |
| Maximum operating pressure | 60psi (4.1 bar) |
| Weight | 0.33kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
92971ins.pdf
|
Open Now |
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | SSG503 | 21526 | SG02P | SG01P | S725 | S720 |
A. The Draper 92971 uses HVLP (high volume low pressure) technology, which is designed to maximise paint transfer efficiency and minimise bounce back during spraying.
A. Yes. The Draper 92971 is suitable for use with all paint types, including water-based formulations.
A. The gravity feed cup has a capacity of 500ml.
A. The gun is fitted with a 1.5mm nozzle.
A. The operating pressure range is 45–50psi, with a maximum operating pressure of 60psi (4.1 bar). Air consumption is rated at 175 litres per minute (6 CFM).
A. The gun has a 1/4" BSP air inlet and is supplied with a 1/4" BSP airline connector.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we'll resolve the issue in line with our returns policy.
A. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
