Product Number: 09706
Variations

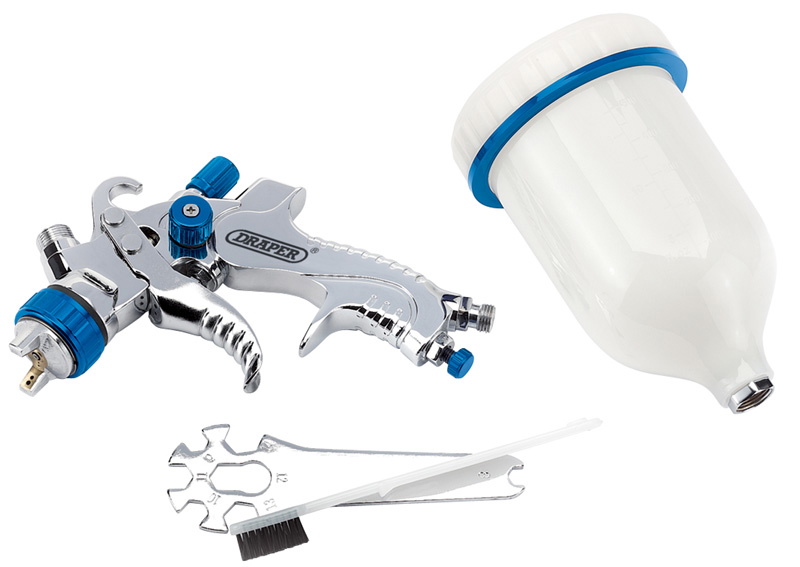

Achieving a consistent, high-quality finish when spraying paint, lacquer or primer demands precise control over flow and fan pattern — and the Draper 9706 Gravity Feed HVLP Air Spray Gun is built to deliver exactly that. The 600ml gravity-feed cup positions paint above the gun body, reducing the air pressure required to draw fluid and ensuring a steady, even supply throughout the spray cycle. The aluminium body construction keeps the gun lightweight at 0.55kg while providing the rigidity needed for sustained workshop use. HVLP (High Volume Low Pressure) technology maximises paint transfer efficiency and minimises bounce-back, keeping overspray to a minimum and making the gun suitable for use with all paint types including water-based formulations. Variable fan control and fully adjustable flow allow the operator to dial in coverage and output to suit the task at hand. The gun operates at 43psi (3 Bar) with an average air consumption of 14.5cfm (400 l/min), supplied via a 1/4" BSP air inlet. The fluid nozzle measures 1.4mm in diameter, with a fluid delivery rate of 190–250ml/min. Spare nozzle, needle and cap sets are available separately to extend the working life of the gun. Supplied in a display carton with a cleaning brush and service spanner. For workshops requiring different atomisation characteristics, compatible spare nozzle, needle and cap sets are listed in the product table.
General purpose HVLP spray gun with aluminium body. Suitable for use with all paint types including water-based. Variable fan and fully adjustable flow. Spare nozzle, needle and cap sets are available - see table. Display carton.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Air Inlet | 1/4" BSP |
|---|---|
| Average Air Consumption | 14.5cfm (400 l/min) |
| Fluid Delivery Rate | 190-250ml/min |
| Fluid Nozzle Size | 1.4mm |
| Operating Air Pressure | 43psi (3 Bar) |
| Weight | 0.55kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
11052 | Draper 11052 GUN BODY | 1 Unit |
£20.30
£19.90
|
Add |
|
|
11069 | Draper 11069 CIRCLIP (SPLIT RING) | 1 Unit |
£8.39
£8.23
|
Add |
|
|
11130 | Draper 11130 TRIGGER GASKET (WAVE WASHER) | 1 Unit |
£10.13
£9.93
|
Add |
|
|
11144 | Draper 11144 OPENING STOPPER 4 (E CLIP) | 1 Unit |
£8.70
£8.53
|
Add |
|
|
11172 | Draper 11172 FILTER | 1 Unit |
£11.42
£11.20
|
Add |
|
|
11173 | Draper 11173 GASKET | 1 Unit |
£8.39
£8.23
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 09709 | HVLP741 | HVLP01 | HVLP742 | HVLP731 | SG02P |
| Brand | Sealey | Premier | Sealey | Sealey | PCL | |
| Capacity (L) | 226 | |||||
| EAN | 5014875180205 | |||||
| Max Pressure (psi) | 43 | 43 | 43 | 43 | 43 | |
| Weight (kg) | 1.8 | 82 | 94 | 07 | 43 | |
A. The Draper 9706 is suitable for use with all paint types, including water-based formulations.
A. The fluid nozzle measures 1.4mm in diameter.
A. The gun operates at 43psi (3 Bar) with an average air consumption of 14.5cfm (400 l/min), connected via a 1/4" BSP air inlet.
A. The fluid delivery rate is 190–250ml/min.
A. The gun is supplied with one cleaning brush and one service spanner, packaged in a display carton.
A. Yes — spare nozzle, needle and cap sets are available separately. Please refer to the product table for compatible options.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility, and we'll help you choose the right product.
