Product Number: 09707

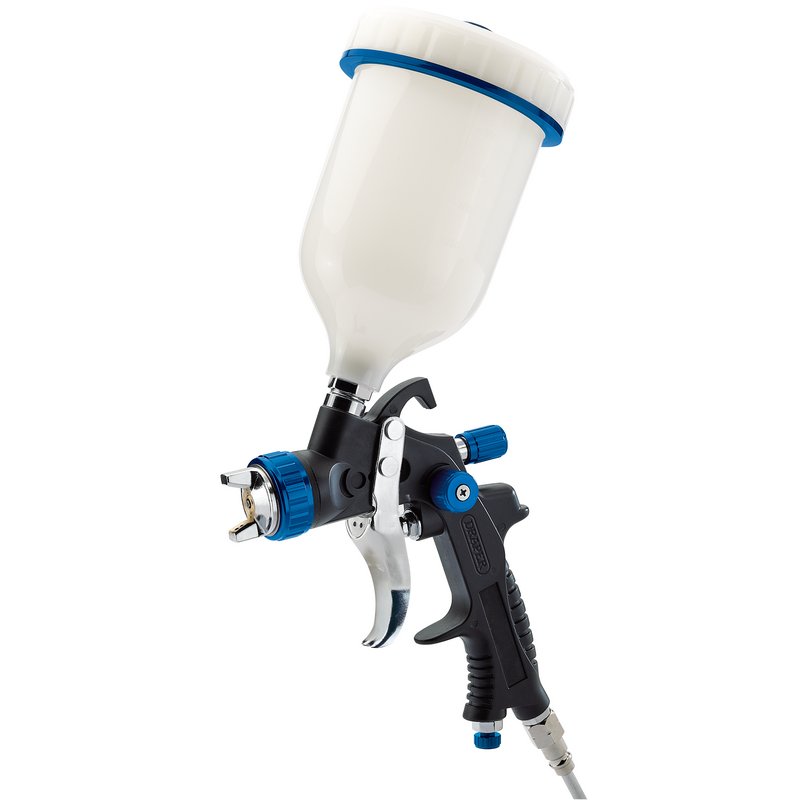

Achieving a consistent, high-quality finish with conventional spray equipment can prove frustrating, particularly when working with modern water-based paints that demand precise atomisation and minimal overspray. The Draper 9707 HVLP Air Spray Gun addresses this with a gravity-fed design and a lightweight composite body, making it a practical general-purpose solution for a broad range of painting tasks. The gun operates at 43 psi (3 Bar) with an average air consumption of 14.5 cfm (400 l/min), delivered through a 1/4" BSP air inlet. The 1.4 mm fluid nozzle delivers paint at a rate of 190–250 ml/min, while the variable fan control and fully adjustable flow allow the user to tailor the spray pattern and output to suit the application. The stainless steel needle and nose contribute to maximum paint transfer efficiency and minimal bounce-back. The gun is suitable for use with all paint types, including water-based formulations. Weighing just 0.375 kg, the composite body keeps operator fatigue to a minimum during extended use. The 600 ml gravity-fed hopper sits directly above the gun body. Spare nozzle, needle, and cap sets are available separately for ongoing maintenance. Supplied in a display carton, the set includes one spray gun, one cleaning brush, and one service spanner.
General purpose HVLP spray gun with lightweight composite body. Suitable for use with all paint types including water-based. Variable fan and fully adjustable flow. Spare nozzle, needle and cap sets are available - see table. Display carton.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Air Inlet | 1/4" BSP |
|---|---|
| Average Air Consumption | 14.5cfm (400 l/min) |
| Fluid Delivery Rate | 190-250ml/min |
| Fluid Nozzle Size | 1.4mm |
| Operating Air Pressure | 43psi (3 Bar) |
| Weight | 0.375kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|

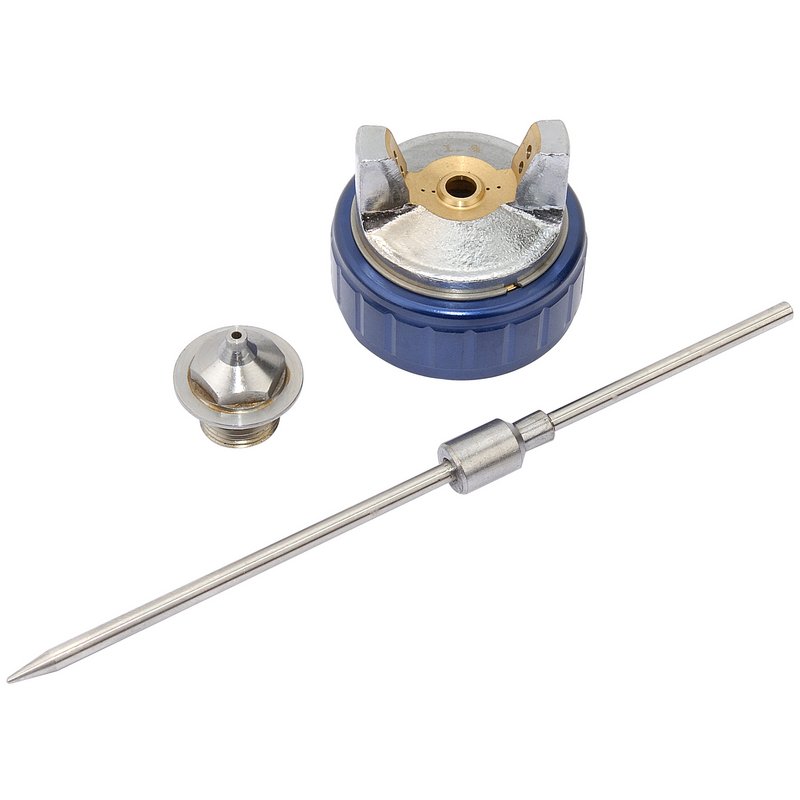

13843 | Draper Spare Nozzle, Needle & Cap Set for Spray Guns 09706 & 09707, 1.4mm | 1 Unit |
£23.66
£23.20
|
Add |
|

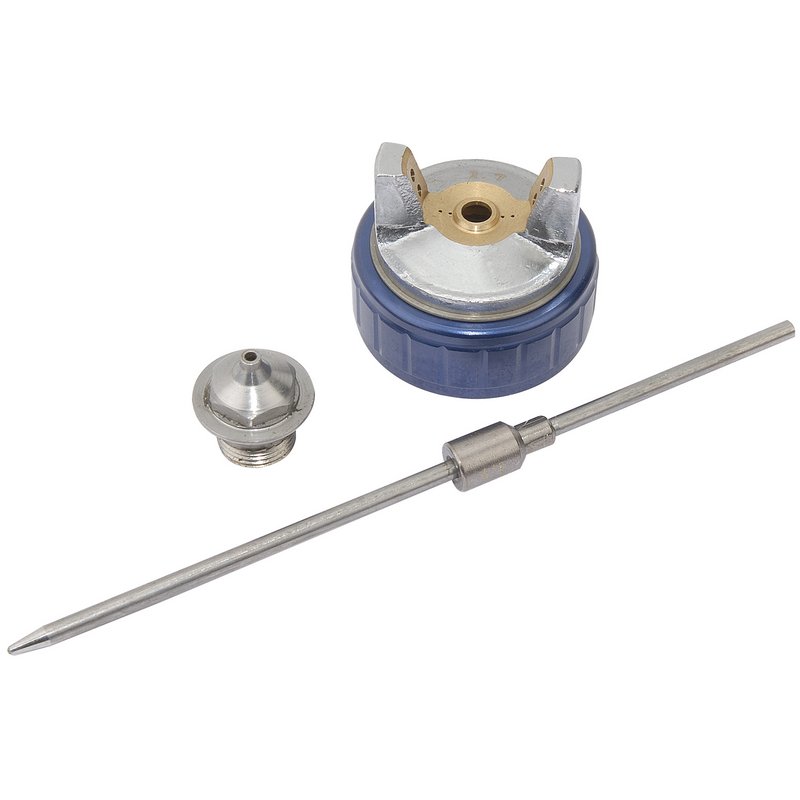

13844 | Draper Spare Nozzle, Needle & Cap Set for Spray Guns 09706 & 09707, 1.7mm | 1 Unit |
£23.66
£23.20
|
Add |
|

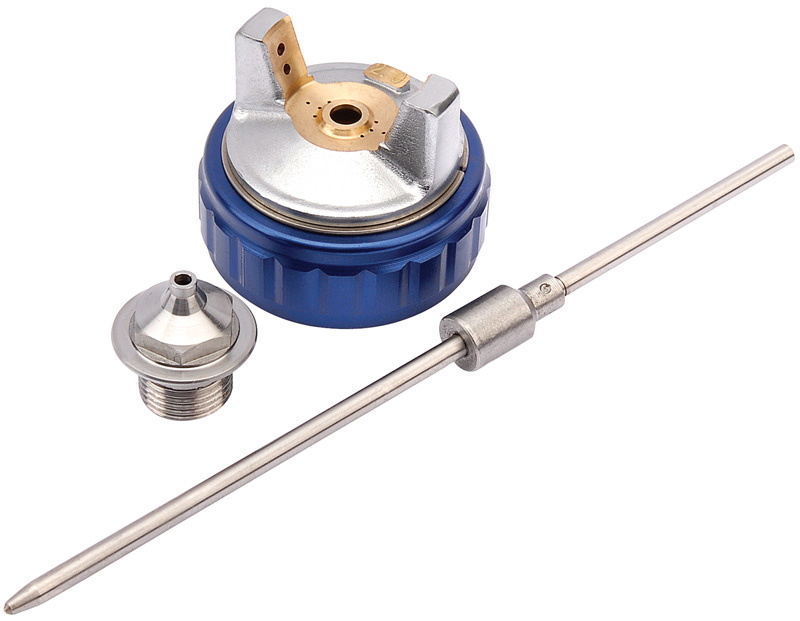

13845 | Draper Spare Nozzle, Needle & Cap Set for Spray Guns 09706 & 09707, 2.0mm | 1 Unit |
£23.66
£23.20
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 9706 Gravity Feed HVLP Air Spray Gun, 600ml
£78.12
£76.59
2% OFF
Free delivery in UK Mainland
|
|||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 09709 | 09706 | SG02P | HVLP741 | HVLP01 | HVLP742 |
| Type | Air Blow, Spray & Grease Gun | Air Blow, Spray & Grease Gun | Air Blow, Spray & Grease Gun | Air Blow, Spray & Grease Gun | Air Blow, Spray & Grease Gun | Air Blow, Spray & Grease Gun |
| Brand | PCL | Sealey | Premier | Sealey | ||
| Capacity (L) | 226 | 400 | ||||
| EAN | 5014875180205 | |||||
| Max Pressure (psi) | 43 | 43 | 43 | 43 | 43 | |
| Weight (kg) | 1.8 | 55 | 82 | 94 | 07 | |
A. The Draper 9707 is suitable for use with all paint types, including water-based formulations.
A. The fluid nozzle size is 1.4 mm.
A. The gun operates at 43 psi (3 Bar). The air inlet connection is 1/4" BSP.
A. The fluid delivery rate is 190–250 ml/min, with an average air consumption of 14.5 cfm (400 l/min).
A. The kit includes one spray gun, one cleaning brush, and one service spanner. Spare nozzle, needle, and cap sets are available separately.
A. Yes — spare nozzle, needle, and cap sets are available separately. Please refer to the compatibility table on the product listing for applicable part numbers.
