Product Number: RE15316
Variations

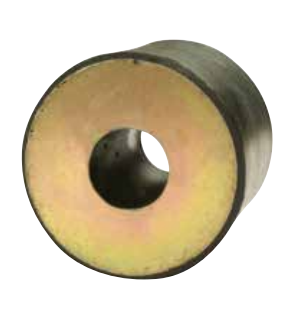

Compact and suited to lighter installations, the RE15316 is a 153 mm ring element anti-vibration mount built on rubber-to-metal bonded construction for reliable vibration isolation in sensitive and light-duty applications. With an outer ring diameter (A) of 153 mm, inner ring diameter (B) of 145 mm, core diameter (C) of 102 mm, overall height (H) of 16 mm, and a 60° angular geometry (a°), this mount is dimensioned for equipment where precise spatial packaging and low-load performance are the priority. Designed for use with instruments, electronics, and light equipment, the ring element form allows loading in shear, compression, or a combination of both. The rubber-to-metal bond delivers consistent isolation performance across the operating life of the mount, protecting sensitive items from vibration-induced damage while also improving operator comfort and extending the working life of nearby structures. The mount is well suited to precision-sensitive installations found across agriculture, marine, railway and mass transit, power generation, and automotive applications. Where standard configurations do not meet a specific requirement, stainless steel metal options and oil-resistant or high-temperature rubber compounds are available on request, as are additional custom sizes. The RE15316 is part of a broader ring element range. Alternative dimensions are available in the following variants: 10254TRB32, 12246TRB38, 4223TRB18, 6233TRB21, 7233TRB21, 8240TRB25, RE10027, and RE11015. Selecting the correct size and geometry for the specific load and installation envelope ensures optimum isolation performance. This product is supplied as a single ring element mount. Custom material options are available on request.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Diameter / thread d1 (mm) | 55 |
|---|---|
| Diameter / thread d2 (mm) | 60 |
| Overall height H (mm) | 16 |
| Overall length / diameter A (mm) | 153 |
| Width / dimension B (mm) | 145 |
| Height / dimension C (mm) | 102 |
| Rubber / material thickness t (mm) | 2 |
| Dimension I (mm) | 5 |
| Cone angle a (degrees) | 60 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | JC220.101 | RSM30242-70 | RSM242-45 | RSM242-60 | RSM242-70 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 143mm | 166mm | 168mm | 168mm | 168mm |
| Deflection | 2.1 | 3 | 2.8 | 2.2 | |
| Size Range | 101-200mm | 101-200mm | 101-200mm | 101-200mm | 101-200mm |
A. The RE15316 has an outer ring diameter (A) of 153 mm, an inner ring diameter (B) of 145 mm, a core diameter (C) of 102 mm, an overall height (H) of 16 mm, a wall thickness (t) of 2 mm, an inclination (i) of 5, and an angular geometry (a°) of 60°.
A. This ring element is designed for instruments, electronics, and light equipment where vibration isolation of sensitive items is the primary requirement. It is suited to lighter and compact installations across agriculture, marine, railway and mass transit, power generation, and automotive applications.
A. The ring element design allows loading in shear, compression, or a combination of both, providing flexibility in how the mount is integrated into an installation.
A. The mount uses rubber-to-metal bonded construction, which provides a secure, consistent connection between the rubber isolation element and the metal components across the service life of the mount.
A. Anti-vibration ring elements of this type improve machinery lifespan, protect surrounding structures from vibration-induced damage, and improve operator comfort.
A. Yes. Stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes beyond the standard range.
A. Yes. The ring element range includes variants 10254TRB32, 12246TRB38, 4223TRB18, 6233TRB21, 7233TRB21, 8240TRB25, RE10027, and RE11015, each with different dimensional envelopes to suit varying installation requirements.
