Product Number: ESS20/70
Compact and capable of handling loads up to 70 kg with up to 20 mm deflection, the ESS20/70 enclosed spring mounting is sized at 76 mm diameter with an M8 thread fixing, a well-proportioned solution for lighter-duty installations where controlled low-frequency isolation is the priority. Its enclosed spring design delivers the high deflection and low natural frequency characteristics required when machinery vibration must be attenuated without transmitting force to surrounding structures or foundations. Construction combines rubber-to-metal bonded elements with an enclosed spring assembly, allowing the mount to be loaded in compression, shear, or a combination of both. The rubber component contributes additional damping and resilience alongside the spring, making the ESS20/70 well suited to situations where a degree of axial and lateral compliance is needed simultaneously. Custom variants with stainless steel metalwork or oil-resistant and high-temperature rubbers are available on request for more demanding service environments. The ESS20/70 addresses the isolation requirements of sensitive or lighter equipment across many industries. Power generation sets, smaller agricultural machinery, marine auxiliary units, and automotive or off-highway equipment are all cited application areas, as are railway and mass transit installations and military and defence platforms, anywhere that protecting surrounding structures and improving operator comfort is as important as safeguarding machinery lifespan. The enclosed spring mounting range spans a broad load and size spectrum. Lighter and compact variants include ESL, ESM, and ESS series, and extended-deflection and heavy-duty options include ESL-HD (bracketed: ESL, ESL-HD, ESM, ESS, ESL25/100, ESL25/1000, ESL25/1200, ESL25/1400).
Enclosed Spring Mountings are a high-performance product, capable of achieving up to 99% vibration reduction. Enclosed Spring Mounts consist of steel coil springs mounted within a steel cup. The steel cup controls the lateral movement of the mounted equipment and also contains snubbing rubber to control start-up and shut-down movements. Ideal for industrial machinery. The mountings are supplied with a top fixing bolt to allow for leveling after installation and can be supplied with an oil-resistant anti-slip pad under the base.
Applications Include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

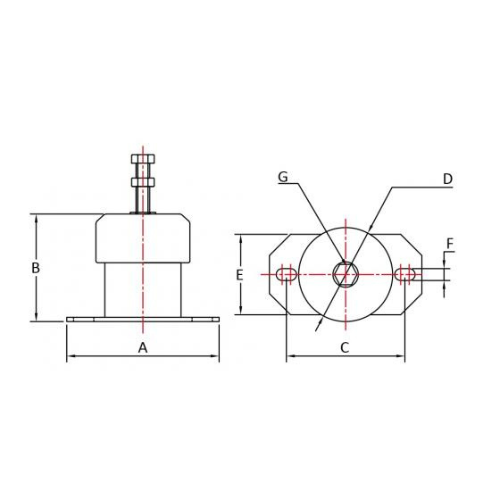

| Base Width (A) | 76mm |
|---|---|
| Overall Height (B) | 63mm |
| Rubber Body Dimension (C) | 54-60mm |
| Center Hole Dimension (D) | 48mm |
| Hole Center Distance (E) | 38mm |
| Mounting Plate Thickness (F) | 6.5mm |
| Thread Size (G) | M8 |
|
Maximum Load(kg): 70mmDeflection(mm): 20
|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | ESL | ESL-HD | ESL25/100 | ESL25/1000 | ESL25/1200 |
| Type | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount |
| Size | 230mm | 230mm | 180mm | 180mm | 180mm |
| Deflection | 25 | 25 | 25 | ||
| Size Range | Over 200mm | Over 200mm | 101-200mm | 101-200mm | 101-200mm |
| Thread | M12 | M12 | M16 | M16 | M16 |
A. The ESS20/70 has an outer diameter (A) of 76 mm, dimension B of 63 mm, height C of 54–60 mm, dimension D of 48 mm, dimension E of 38 mm, and bore F of 6.5 mm. The thread size (G) is M8. Maximum load is 70 kg and maximum deflection is 20 mm.
A. The ESS20/70 uses an enclosed spring combined with a rubber-to-metal bonded element. This construction achieves high deflection and a low natural frequency, which are the conditions needed to attenuate low-frequency vibration effectively. It can be loaded in compression, shear, or a combination of both.
A. The mount is designed for normal working conditions across construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications — wherever low-frequency isolation is required and surrounding structures or operator comfort must be protected.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes. Contact us to discuss your specific service requirements.
A. The ESS20/70 is positioned in the lower-load, compact part of the range at 70 kg maximum load and 76 mm diameter, making it suited to lighter and more sensitive installations. Heavier-duty and larger options include the ESL, ESL-HD, ESM, and ESS series (ESL, ESL-HD, ESM, ESS, ESL25/100, ESL25/1000, ESL25/1200, ESL25/1400). Where deflection beyond 20 mm — up to 40 mm — is needed, the ESL-HD series is the appropriate choice.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
