Product Number: ESS20/20
Compact and precisely specified, the ESS20/20 is the smallest enclosed spring mounting in the range, carrying a maximum load of 20 kg with up to 20 mm of deflection, characteristics that make it the natural choice for lighter, vibration-sensitive installations where high deflection and a low natural frequency are required without the bulk of larger formats. The rubber-to-metal bonded construction provides a reliable, unitised assembly suited to low-frequency isolation under normal working conditions. The enclosed spring format supports loading in compression, shear, or a combination of both, giving installation engineers flexibility to match mounting orientation to the application at hand. The rubber element is integral to the metal housing, maintaining alignment and resisting displacement under dynamic conditions. Custom variants in stainless steel metals and oil-resistant or high-temperature rubbers are available on request, along with additional sizes. With a 76 mm body diameter (dimension A), a 48 mm base footprint (D), and an M8 thread (G), the ESS20/20 is dimensioned for equipment where space is at a premium and load demands are moderate. Typical industry sectors include agriculture, power generation, marine, construction and off-highway, railway and mass transit, automotive, and military and defence applications. By absorbing and decoupling vibration at source, the mount helps extend machinery service life, protects adjacent structures, and improves operator comfort in installations where machinery sits on or near sensitive surfaces. This SKU belongs to a wider family of spring mountings.
Enclosed Spring Mountings are a high-performance product, capable of achieving up to 99% vibration reduction. Enclosed Spring Mounts consist of steel coil springs mounted within a steel cup. The steel cup controls the lateral movement of the mounted equipment and also contains snubbing rubber to control start-up and shut-down movements. Ideal for industrial machinery. The mountings are supplied with a top fixing bolt to allow for leveling after installation and can be supplied with an oil-resistant anti-slip pad under the base.
Applications Include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

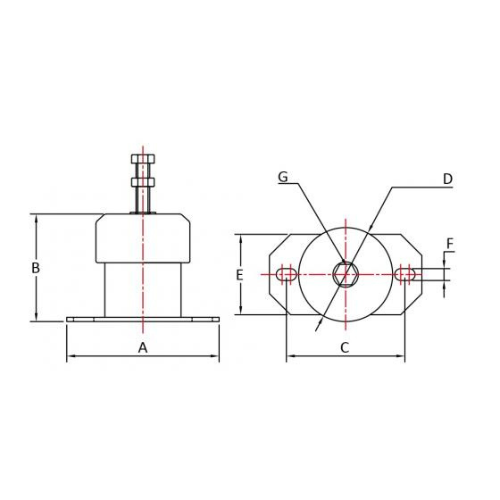

| Base Width (A) | 76mm |
|---|---|
| Overall Height (B) | 63mm |
| Rubber Body Dimension (C) | 54-60mm |
| Center Hole Dimension (D) | 48mm |
| Hole Center Distance (E) | 38mm |
| Mounting Plate Thickness (F) | 6.5mm |
| Thread Size (G) | M8 |
|
Maximum Load(kg): 20mmDeflection(mm): 20
|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | ESL | ESL-HD | ESL25/100 | ESL25/1000 | ESL25/1200 |
| Type | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount |
| Size | 230mm | 230mm | 180mm | 180mm | 180mm |
| Deflection | 25 | 25 | 25 | ||
| Size Range | Over 200mm | Over 200mm | 101-200mm | 101-200mm | 101-200mm |
| Thread | M12 | M12 | M16 | M16 | M16 |
A. The ESS20/20 has a maximum load rating of 20 kg and a maximum deflection of 20 mm, making it suited to lighter machinery and vibration-sensitive installations.
A. Dimension A (overall diameter) is 76 mm, B is 63 mm, C is 54–60 mm, D is 48 mm, E is 38 mm, F is 6.5 mm, and the thread (G) is M8.
A. The mount may be loaded in shear, compression, or a combination of both, giving flexibility in mounting orientation to suit the installation.
A. It uses rubber-to-metal bonded construction, producing a unitised assembly that maintains alignment and resists displacement under dynamic and vibratory loads.
A. The ESS20/20 is suited to low-frequency isolation in agriculture, power generation, marine, construction and off-highway, railway and mass transit, automotive, and military and defence sectors.
A. Yes — stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. Related variants include the ESL, ESL-HD, ESM, and ESS series, as well as specific sizes ESL25/100, ESL25/1000, ESL25/1200, and ESL25/1400.
