Product Number: ESS20/40
Compact and light-duty by design, the ESS20/40 enclosed spring mounting is built for low-frequency vibration isolation where space is limited and loads are modest. With a maximum load rating of 40 kg and up to 20 mm of deflection, this mount sits at the lighter end of the enclosed spring range, well suited to sensitive installations, lower-load machinery, and applications where a low natural frequency is essential without the bulk of heavier-duty variants. Constructed with rubber-to-metal bonding throughout, the ESS20/40 delivers reliable, repeatable isolation performance. The enclosed design protects the spring element from contamination and mechanical damage, making it appropriate for demanding environments in industries such as marine, power generation, agriculture, and construction and off-highway equipment. The mount may be loaded in shear, compression, or a combination of both, giving engineers flexibility in installation orientation. Key dimensions are: A 76 mm, B 63 mm, C 54–60 mm, D 48 mm, E 38 mm, F 6.5 mm, with an M8 fixing thread. By reducing transmitted vibration, the mount helps extend machinery lifespan, protects surrounding structures, and contributes to improved operator comfort. Custom options including stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request. This mount is one model within a broad enclosed and open spring mounting range. Related variants include the ESL, ESL-HD, ESM, ESS, ESL25/100, ESL25/1000, ESL25/1200, and ESL25/1400, covering a wide spread of load capacities and deflection characteristics to suit different installation requirements. The ESS20/40 is supplied as a single enclosed spring mount.
Enclosed Spring Mountings are a high-performance product, capable of achieving up to 99% vibration reduction. Enclosed Spring Mounts consist of steel coil springs mounted within a steel cup. The steel cup controls the lateral movement of the mounted equipment and also contains snubbing rubber to control start-up and shut-down movements. Ideal for industrial machinery. The mountings are supplied with a top fixing bolt to allow for leveling after installation and can be supplied with an oil-resistant anti-slip pad under the base.
Applications Include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

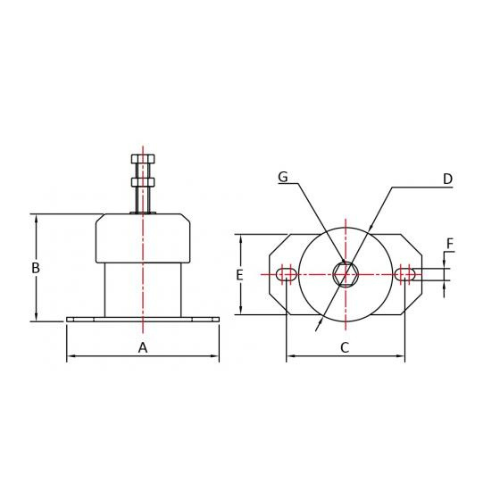

| Base Width (A) | 76mm |
|---|---|
| Overall Height (B) | 63mm |
| Rubber Body Dimension (C) | 54-60mm |
| Center Hole Dimension (D) | 48mm |
| Hole Center Distance (E) | 38mm |
| Mounting Plate Thickness (F) | 6.5mm |
| Thread Size (G) | M8 |
|
Maximum Load(kg): 40mmDeflection(mm): 25
|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | ESL | ESL-HD | ESL25/100 | ESL25/1000 | ESL25/1200 |
| Type | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount |
| Size | 230mm | 230mm | 180mm | 180mm | 180mm |
| Deflection | 25 | 25 | 25 | ||
| Size Range | Over 200mm | Over 200mm | 101-200mm | 101-200mm | 101-200mm |
| Thread | M12 | M12 | M16 | M16 | M16 |
A. The ESS20/40 enclosed spring mount has a maximum load rating of 40 kg and a maximum deflection of 20 mm, placing it at the lighter end of the enclosed spring mounting range.
A. The ESS20/40 has the following dimensions: A 76 mm, B 63 mm, C 54–60 mm, D 48 mm, E 38 mm, F 6.5 mm, with an M8 fixing thread.
A. The ESS20/40 uses rubber-to-metal bonded construction with an enclosed design that protects the internal spring element from contamination and mechanical damage.
A. The ESS20/40 may be loaded in shear, compression, or a combination of both, providing flexibility in installation orientation to suit different mounting configurations.
A. The ESS20/40 is suited to low-frequency isolation in marine, power generation, agricultural, construction and off-highway, railway and mass transit, automotive, and military and defence applications, particularly where loads are light and sensitivity to vibration transmission is a priority.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, along with additional and custom sizes.
A. Yes. Related variants include the ESL, ESL-HD, ESM, ESS, ESL25/100, ESL25/1000, ESL25/1200, and ESL25/1400, covering a range of load capacities and deflection values for different installation requirements.
