Product Number: ESM25/250
Rated to a maximum load of 250 kg with 25 mm deflection, the ESM25/250 is a 110 mm enclosed spring mounting designed for mainstream general-machinery applications where reliable low-frequency vibration isolation is required under moderate to substantial loads. The M10 threaded connection and a compact body profile make it straightforward to integrate into existing machine bases and fabricated frames across a broad range of industrial environments. Constructed using rubber-to-metal bonded technology, the mount can accept loading in compression, shear, or a combination of both, giving installation engineers genuine flexibility in how the unit is oriented and secured. The enclosed spring design keeps the working spring element protected from contaminants present in workshop and plant environments, contributing to consistent long-term performance. Custom variants with stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request for duty cycles that exceed standard working conditions. With key dimensions of A: 110 mm, B: 89 mm, C: 85–90 mm, D: 78 mm, E: 70 mm, and F: 9 mm, the ESM25/250 sits in the upper portion of the enclosed spring range, balancing load capacity with controlled deflection to protect surrounding structures and improve operator comfort. Typical application sectors include power generation, agriculture, marine installations, construction and off-highway equipment, railway and mass transit, automotive, and military and defence. The enclosed spring mounting family covers a wide span of load and deflection requirements.
Enclosed Spring Mountings are a high-performance product, capable of achieving up to 99% vibration reduction. Enclosed Spring Mounts consist of steel coil springs mounted within a steel cup. The steel cup controls the lateral movement of the mounted equipment and also contains snubbing rubber to control start-up and shut-down movements. Ideal for industrial machinery. The mountings are supplied with a top fixing bolt to allow for leveling after installation and can be supplied with an oil-resistant anti-slip pad under the base.
Applications Include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

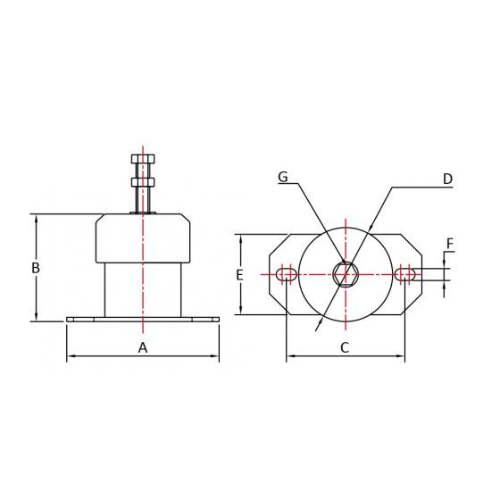

| Base Width (A) | 110mm |
|---|---|
| Overall Height (B) | 89mm |
| Rubber Body Dimension (C) | 85-90mm |
| Center Hole Dimension (D) | 78mm |
| Hole Center Distance (E) | 70mm |
| Mounting Plate Thickness (F) | 9mm |
| Thread Size (G) | M10 |
|
Maximum Load(kg): 250mmDeflection(mm): 25
|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

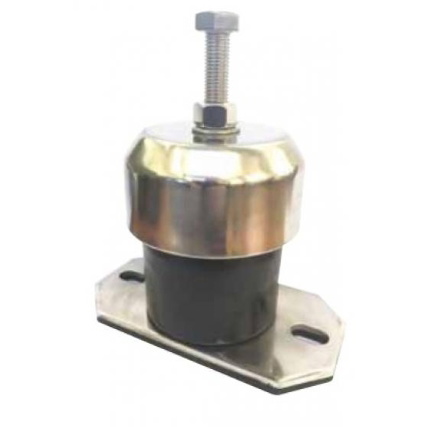

| PRODUCT NUMBER | ESL | ESL-HD | ESL25/100 | ESL25/1000 | ESL25/1200 |
| Type | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount |
| Size | 230mm | 230mm | 180mm | 180mm | 180mm |
| Deflection | 25 | 25 | 25 | ||
| Size Range | Over 200mm | Over 200mm | 101-200mm | 101-200mm | 101-200mm |
| Thread | M12 | M12 | M16 | M16 | M16 |
A. The ESM25/250 is rated to a maximum load of 250 kg and delivers 25 mm of deflection under that load.
A. The principal dimensions are: A: 110 mm, B: 89 mm, C: 85–90 mm, D: 78 mm, E: 70 mm, F: 9 mm, with an M10 threaded connection (G: M10).
A. The mount may be loaded in compression, shear, or a combination of the two, providing flexibility in installation orientation.
A. The mount is suitable for use in power generation, agriculture, marine, construction and off-highway, railway and mass transit, automotive, and military and defence applications.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, as are additional and custom sizes.
A. Related variants include ESL, ESL-HD, ESM, ESS, ESL25/100, ESL25/1000, ESL25/1200, and ESL25/1400, covering a wide range of load and deflection requirements.
