Product Number: ESM25/160

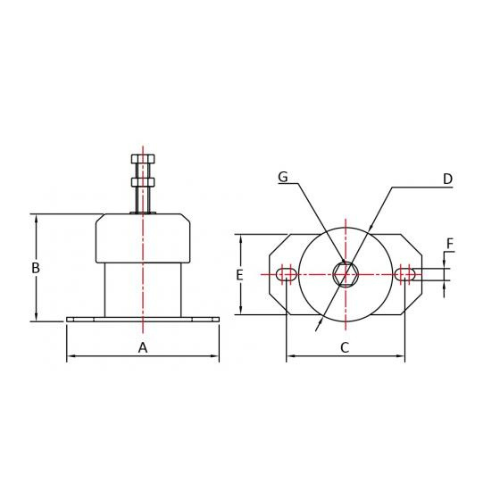

Rated to a maximum load of 160 kg with 25 mm deflection, the ESM25/160 is an enclosed spring mounting designed for mainstream general-machinery applications where moderate loads and reliable low-frequency vibration isolation are required. With a 110 mm body diameter and M10 thread, it occupies the mid-range of the enclosed spring mounting family, balancing load capacity and isolation performance for typical industrial installations. The mount features rubber-to-metal bonded construction throughout, combining the elastic recovery of the rubber element with the structural integrity of the metal enclosure. It may be loaded in shear, compression, or a combination of both, giving installation engineers flexibility in mounting orientation. By absorbing and attenuating low-frequency vibration, the ESM25/160 helps improve machinery lifespan, protects surrounding structures from transmitted vibration energy, and contributes to improved operator comfort in proximity to running plant. Key dimensions are: A 110 mm, B 89 mm, C 85–90 mm, D 78 mm, E 70 mm, F 9 mm, thread G M10. The mount is rated for normal working conditions loaded to a maximum deflection of approximately 20 mm. Typical industry applications include construction and off-highway equipment, agricultural machinery, power generation plant, marine installations, railway and mass transit, and automotive and defence platforms. The enclosed spring mounting range also includes the ESL, ESL-HD, ESM, ESS, ESL25/100, ESL25/1000, ESL25/1200, and ESL25/1400 variants, covering a broad spectrum of load ratings and deflection characteristics to suit light through to heavy-duty isolation requirements.
Enclosed Spring Mountings are a high-performance product, capable of achieving up to 99% vibration reduction. Enclosed Spring Mounts consist of steel coil springs mounted within a steel cup. The steel cup controls the lateral movement of the mounted equipment and also contains snubbing rubber to control start-up and shut-down movements. Ideal for industrial machinery. The mountings are supplied with a top fixing bolt to allow for leveling after installation and can be supplied with an oil-resistant anti-slip pad under the base.
Applications Include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Base Width (A) | 110mm |
|---|---|
| Overall Height (B) | 89mm |
| Rubber Body Dimension (C) | 85-90mm |
| Center Hole Dimension (D) | 78mm |
| Hole Center Distance (E) | 70mm |
| Mounting Plate Thickness (F) | 9mm |
| Thread Size (G) | M10 |
|
Maximum Load(kg): 160mmDeflection(mm): 25
|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | ESL | ESL-HD | ESL25/100 | ESL25/1000 | ESL25/1200 |
| Type | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount |
| Size | 230mm | 230mm | 180mm | 180mm | 180mm |
| Deflection | 25 | 25 | 25 | ||
| Size Range | Over 200mm | Over 200mm | 101-200mm | 101-200mm | 101-200mm |
| Thread | M12 | M12 | M16 | M16 | M16 |
A. The ESM25/160 is rated to a maximum load of 160 kg with a deflection of 25 mm, suitable for normal working conditions where deflections up to approximately 20 mm are expected in service.
A. Dimensions are: A 110 mm, B 89 mm, C 85–90 mm, D 78 mm, E 70 mm, F 9 mm, with an M10 thread (G). These are the fully specified dimensions as supplied.
A. The mount may be loaded in shear, compression, or a combination of both, providing installation flexibility across a range of machinery mounting configurations.
A. The ESM25/160 is used across construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications where low-frequency isolation at moderate loads is required.
A. The rubber-to-metal bonded construction integrates the elastic rubber element with the metal enclosure to deliver consistent vibration attenuation, helping to improve machinery lifespan, protect surrounding structures, and improve operator comfort.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. Yes — the range includes the ESL, ESL-HD, ESM, ESS, ESL25/100, ESL25/1000, ESL25/1200, and ESL25/1400 variants, spanning a wide range of load capacities and deflection characteristics.
