Product Number: ESM25/100
Variations
Mainstream general-machinery work calls for a mount that balances load capacity with genuine low-frequency isolation, and the ESM25/100 enclosed spring mounting delivers precisely that. Rated to a maximum load of 100 kg with a 25 mm deflection figure, this 110 mm diameter unit is built for normal working conditions where high deflection and a low natural frequency are required across a broad range of industrial settings. Rubber-to-metal bonded construction gives the ESM25/100 its structural integrity, allowing it to be loaded in compression, shear, or a combination of both. The enclosed design protects the spring element during service, while the M10 thread (dimension G) ensures compatibility with standard fastening arrangements. Overall dimensions are: A 110 mm, B 89 mm, C 85–90 mm, D 78 mm, E 70 mm, F 9 mm. By absorbing and dissipating vibration energy, the mount improves machinery lifespan, reduces transmission of vibration to surrounding structures, and contributes to improved operator comfort. It is suited to applications in construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence environments. Maximum working deflection under normal conditions is approximately 20 mm. Custom variants in stainless steel metals and oil-resistant or high-temperature rubbers, as well as additional sizes, are available on request. This product belongs to a wider range of enclosed and open spring mountings.
Enclosed Spring Mountings are a high-performance product, capable of achieving up to 99% vibration reduction. Enclosed Spring Mounts consist of steel coil springs mounted within a steel cup. The steel cup controls the lateral movement of the mounted equipment and also contains snubbing rubber to control start-up and shut-down movements. Ideal for industrial machinery. The mountings are supplied with a top fixing bolt to allow for leveling after installation and can be supplied with an oil-resistant anti-slip pad under the base.
Applications Include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

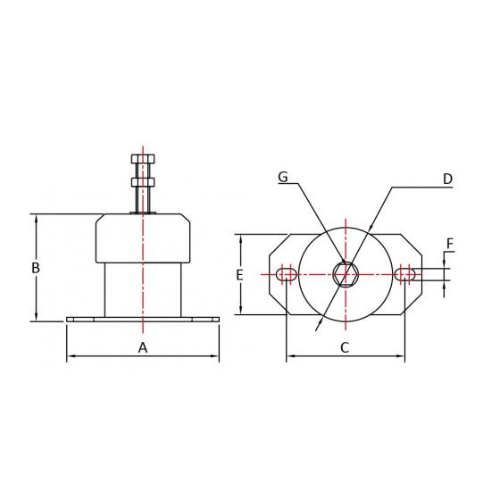

| Base Width (A) | 110mm |
|---|---|
| Overall Height (B) | 89mm |
| Rubber Body Dimension (C) | 85-90mm |
| Center Hole Dimension (D) | 78mm |
| Hole Center Distance (E) | 70mm |
| Mounting Plate Thickness (F) | 9mm |
| Thread Size (G) | M10 |
|
Maximum Load(kg): 100mmDeflection(mm): 25
|
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | ESL | ESL-HD | ESL25/100 | ESL25/1000 | ESL25/1200 |
| Type | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount |
| Size | 230mm | 230mm | 180mm | 180mm | 180mm |
| Deflection | 25 | 25 | 25 | ||
| Size Range | Over 200mm | Over 200mm | 101-200mm | 101-200mm | 101-200mm |
| Thread | M12 | M12 | M16 | M16 | M16 |
A. The ESM25/100 is rated to a maximum load of 100 kg and provides a deflection of 25 mm. Under normal working conditions the mount is loaded to a maximum of approximately 20 mm deflection.
A. The principal dimensions are: A = 110 mm, B = 89 mm, C = 85–90 mm, D = 78 mm, E = 70 mm, F = 9 mm, with an M10 thread (G).
A. The ESM25/100 may be loaded in shear, compression, or a combination of both, making it adaptable to varied mounting orientations in service.
A. It is suited to construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications where low-frequency isolation under moderate loads is required.
A. Enclosed spring mountings improve machinery lifespan, protect surrounding structures from transmitted vibration, and improve operator comfort by isolating low-frequency vibration at the source.
A. Yes — stainless steel metal components and oil-resistant or high-temperature rubber compounds, along with additional and custom sizes, are available on request.
A. Related variants include the ESL25/100, ESL25/1000, ESL25/1200, ESL25/1400, the heavy-duty ESL-HD, and the ESS and ESL family configurations, covering a range of load and deflection ratings.
