Product Number: ESS20/10
Variations

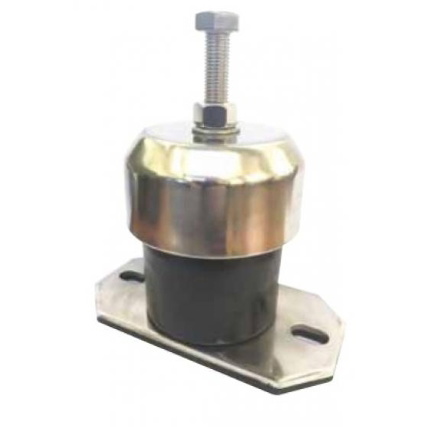

Compact and precision-engineered for lighter-duty installations, the ESS20/10 is a 76 mm enclosed spring mounting built to give low-frequency vibration isolation where space is limited and loads are modest. With a maximum load rating of 10 kg and up to 20 mm of deflection, it is well suited to sensitive or lightly loaded plant and equipment requiring a low natural frequency without the bulk of heavier-duty variants. Constructed with rubber-to-metal bonded technology, the ESS20/10 can accept loading in shear, compression, or a combination of both, giving installation engineers flexibility in how the mount is oriented within a given application. The enclosed spring design delivers consistent performance across normal working conditions, and the compact footprint makes it particularly appropriate where mounting centres are tight or equipment is delicate. The ESS20/10 carries an M8 threaded stud (dimension G) and presents overall dimensions of 76 mm outer diameter (A), 63 mm (B), a height range of 54–60 mm (C), 48 mm (D), and 38 mm (E), with a 6.5 mm aperture (F). These proportions position it as the lightest and most compact enclosed spring mount in the range, suited to applications across marine, power generation, agricultural machinery, automotive, railway and mass transit, construction and off-highway, and military and defence environments where vibration control is required at lower load levels. By reducing transmitted vibration, the mount contributes to improved machinery service life, protection of adjacent structures, and enhanced operator comfort. This mount belongs to a broader family of enclosed and open spring mountings.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Overall length / diameter A (mm) | 76 |
|---|---|
| Width / dimension B (mm) | 63 |
| Height / dimension C (mm) | 54-60 |
| Outer diameter D (mm) | 48 |
| Dimension E (mm) | 38 |
| Fixing hole / dimension F (mm) | 6.5 |
| Fixing hole spacing G (mm) | M8 |
| Max load (kg) | 10 |
| Deflection (mm) | 20 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||||||
| Technical Specification | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

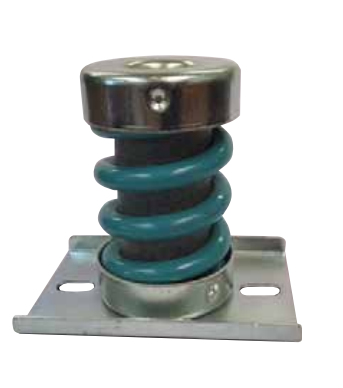

| PRODUCT NUMBER | OSM75-B | OSM75-A | OSM50-B | OSM50-A | OSM5-B | OSM5-A | ESS | OSMHD100-B | OSMHD100-C | OSMHD125-B | OSMHD125-C |
| Type | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount | Spring Mount |
| Size | 51mm | 51mm | 51mm | 51mm | 51mm | 51mm | 75mm | 69mm | 69mm | 69mm | 69mm |
| Deflection | 23 | 23 | 23 | 23 | 23 | 23 | 25 | 25 | 25 | 25 | |
| Size Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
| Thread | M8 | M8 | M8 | M8 | M8 | M8 | M8 | M12 | M12 | ||
A. The ESS20/10 is rated to a maximum load of 10 kg with a deflection of up to 20 mm, making it suitable for lightly loaded applications requiring high deflection and a low natural frequency.
A. The ESS20/10 has an outer diameter (A) of 76 mm, dimension B of 63 mm, a height range (C) of 54–60 mm, dimension D of 48 mm, dimension E of 38 mm, aperture (F) of 6.5 mm, and an M8 thread (G).
A. The mount may be loaded in shear, compression, or a combination of both, providing flexibility in installation orientation.
A. It is designed for use across marine, power generation, agriculture, automotive, railway and mass transit, construction and off-highway, and military and defence applications where vibration isolation is required under lighter load conditions.
A. By isolating low-frequency vibration, the ESS20/10 helps to extend machinery service life, protect surrounding structures from vibration transmission, and improve operator comfort.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes. Please contact us for details.
A. The ESS20/10 is the lighter-load variant, rated to 10 kg, and is intended for sensitive or lightly loaded installations. The ESS20/15 (ESS20/15) carries a higher load rating and is suited to heavier-duty requirements within the same compact enclosed spring format.
