Product Number: ECC1165-60-60
Variations

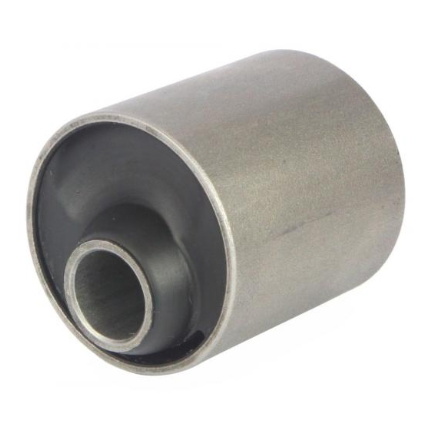

Striking a balance between load support and vibration isolation, the ECC1165-60-60 is a 25.4 mm bore eccentric bush rated to a maximum load of 350 kg with a primary stiffness of 475 N/mm and an F2 stiffness of 640 N/mm, making it well suited to the broad middle ground of general-machinery mounting where neither extreme softness nor maximum rigidity is appropriate. Maximum deflection in the F1 axis is 3.8 mm, giving controlled movement without excessive compliance under dynamic operating conditions. Constructed with rubber bonded between inner and outer metal sleeves, this eccentric bush delivers high durability under dynamic loads and a prolonged service life. The rubber-to-metal bonded construction requires no lubrication and is entirely maintenance free, reducing downtime in demanding service environments. The 60 Shore A medium hardness grade is chosen where the application demands a reliable combination of vibration attenuation and structural support across fluctuating load cycles. The ECC1165-60-60 is suited to mainstream general-machinery mounting at moderate loads, with applications spanning mechanical linkages, cab mounts, pivot bearings, and power generation equipment. It is also appropriate for use in construction and off-highway plant, agricultural machinery, marine installations, and railway and mass transit systems where consistent mid-range performance is required. Mounts may be loaded in shear, compression, or a combination of both, improving machinery lifespan, protecting surrounding structures, and enhancing operator comfort. This bush is one size within a wider eccentric bush range.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | ECC1165-45 | ECC1165-60 | SB1316 | SB2166 | IOS0877 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 25.4mm | 25.4mm | 25.4mm | 25.4mm | 25.4mm |
| Size Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm |
A. The ECC1165-60-60 has a maximum load rating of 350 kg, a primary (F1) stiffness of 475 N/mm, and an F2 stiffness of 640 N/mm. Maximum deflection in the F1 axis is 3.8 mm.
A. Dimension A (bore) is 25.4 mm, B is 88.9 mm, C is 66.7 mm, D is 79.4 mm, and E is 14.3 mm.
A. The 60 Shore A medium grade balances vibration isolation with load-bearing support, making it appropriate for general-machinery mounting at moderate loads where neither maximum deflection nor maximum rigidity is required. Softer 45 Shore A grades give greater deflection and better isolation at lower loads; firmer 75 Shore A grades carry higher loads with less movement.
A. This eccentric bush is suited to mechanical linkages, cab mounts, pivot bearings, and power generation equipment, as well as construction and off-highway plant, agricultural machinery, marine installations, and railway and mass transit systems operating at moderate loads.
A. No. The rubber-to-metal bonded construction is maintenance free and requires no lubrication throughout its service life.
A. Yes. The ECC1165-60-60 may be loaded in shear, compression, or a combination of both, depending on the application.
A. Yes. Stainless steel metal components and oil-resistant or high-temperature rubbers are available on request, as are additional and custom sizes.
A. Related variants include ECC1165-45 (same bore, 45 Shore A), ECC1270-45, ECC1270-60, ECC1270-75, ECC1355-45, ECC1355-60, ECC2174-45, and ECC2174-60. Each size and grade is listed separately on the platform.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
