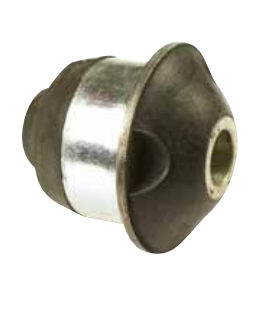

Product Number: FB70s-60
Measuring 165 mm across its flange (dimension A), the FB70s-60 is the largest bush in the FB70s flanged series and is rated to a maximum load of 800 kg, making it the appropriate choice where substantial static and dynamic forces must be managed without sacrificing the balanced compliance that a 60 Shore A medium-hardness rubber delivers. At this grade, the rubber bonding offers a practical equilibrium between load-carrying capacity and deflection, absorbing shock and vibration across the broad mid-range of industrial and vehicle mounting duty. The bush is constructed with rubber bonded between inner and outer metal sleeves, a technique that yields high durability under dynamic loads and delivers a prolonged service life. No lubrication is required and the assembly is fully maintenance free. The rubber-to-metal bonded build allows the mount to accept loading in shear, compression, or a combination of both, adapting to the complex force vectors encountered in heavy plant and transit applications. Custom variants with stainless steel metalwork or oil-resistant and high-temperature rubbers are available on request. Dimension B (outer sleeve) is 98 mm, inner bore C is 36 mm, flange diameter D is 46 mm, overall length E is 60.2 mm, flange-to-flange pitch F is 119 mm, and inner sleeve bore G is 22 mm.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | FB70-45 | FB70-75 | FB70s-45 | FB70s-75 | FB40-45 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 165mm | 165mm | 165mm | 165mm | 100mm |
| Size Range | 101-200mm | 101-200mm | 101-200mm | 101-200mm | 51-100mm |
A. The FB70s-60 is rated to a maximum load of 800 kg.
A. The principal dimensions are: A (flange OD) 165 mm, B (outer sleeve OD) 98 mm, C (inner sleeve bore) 36 mm, D (flange diameter) 46 mm, E (overall length) 60.2 mm, F (pitch) 119 mm, and G (inner bore) 22 mm.
A. At 60 Shore A, the rubber sits at a medium hardness that balances load-carrying capacity against deflection. It is suited to the broad middle ground of mounting duty, offering a working compromise between the greater isolation of softer grades and the higher load resistance of firmer grades.
A. The rubber-to-metal bonded construction allows this bush to accept loading in shear, compression, or a combination of both, accommodating the complex force vectors common in heavy plant and vehicle mounting.
A. The bush is suited to cab mounts, engine mounts, pivot bearings, and mechanical linkages on construction and off-highway machinery, agricultural equipment, railway and mass transit vehicles, marine installations, and military and defence platforms.
A. No. The rubber-to-metal bonded construction requires no lubrication and is fully maintenance free.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubbers, as well as additional and custom sizes, are available on request.
A. The FB70s series is also available in 45 Shore A (FB70s-45) and 75 Shore A (FB70s-75). Related flanged bush families include FB00, FB02, FB10, FB20, FB21, and FB40.
