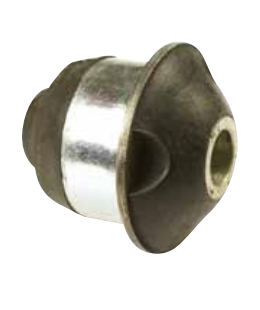

With a rated maximum load of 1,000 kg, the FB70s-75 is the highest-capacity member of the flanged bush range, a 75 Shore A firm-grade rubber-to-metal bonded bush engineered for heavy-duty applications where load must be carried with minimal deflection and the mounted component held firmly in place. At 165 mm overall diameter (dimension A) with a 98 mm bore (B), 36 mm inner length (C), 46 mm outer length (D), 60.2 mm inner diameter (E), 119 mm flange diameter (F) and a 22 mm flange thickness (G), this is the largest bush in the FB70s family and is sized for the most demanding installations in the range. The firm 75 Shore A rubber compound is bonded between inner and outer metal sleeves, delivering the characteristic stiffness needed to resist shock loading and impact events without transmitting harmful impulses to surrounding structures or frames. Rubber-to-metal bonded construction eliminates any requirement for lubrication and renders the bush entirely maintenance-free over its service life, contributing directly to reduced downtime and extended machinery lifespan. The flanged geometry provides positive axial location, resisting pull-out under combined shear and compression loading, critical in pivot bearings, mechanical linkages and cab mount positions subject to sustained dynamic forces.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | FB70-45 | FB70-60 | FB70s-45 | FB70s-60 | FB40-45 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 165mm | 165mm | 165mm | 165mm | 100mm |
| Size Range | 101-200mm | 101-200mm | 101-200mm | 101-200mm | 51-100mm |
A. The FB70s-75 has a maximum load rating of 1,000 kg, making it the highest-capacity bush in the FB70s flanged range.
A. The FB70s-75 measures 165 mm overall diameter (A), 98 mm bore (B), 36 mm inner length (C), 46 mm outer length (D), 60.2 mm inner diameter (E), 119 mm flange diameter (F) and 22 mm flange thickness (G), as specified in the technical datasheet.
A. A 75 Shore A firm grade carries higher loads with less movement than softer grades. Where the application demands structural restraint, shock resistance, or minimal deflection under sustained dynamic forces — such as heavy cab mounts, pivot bearings on construction plant, or military vehicle linkages — the firm grade is the appropriate choice. Softer grades (45 or 60 Shore A) give greater deflection and better isolation at lower loads.
A. No. The rubber-to-metal bonded construction of the FB70s-75 requires no lubrication and is entirely maintenance-free throughout its service life.
A. The FB70s-75 is used in construction and off-highway, agriculture, military and defence, railway and mass transit, marine, automotive and power generation applications — typically in pivot bearings, mechanical linkages, cab mounts and engine mounts where high load capacity and firm restraint under shock or impact are required.
A. Yes. The bush may be loaded in shear, compression, or a combination of both, as is typical of rubber-to-metal bonded inner-outer-sleeve designs.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, along with additional and custom sizes.
A. The FB70s flanged bush is also available in 45 Shore A (FB70s-45) and 60 Shore A (FB70s-60). Related products in the wider anti-vibration bush programme include the FB00, FB02, FB10, FB20, FB21 and FB40. The same 75 Shore A firm grade is available in alternative geometries as the FB41-75 and FB70-75.
