Product Number: FB70-75
Rated to a maximum load of 1,100 kg, the FB70-75 is the highest-capacity unit in the flanged bush range, engineered for applications where heavy imposed loads, shock forces, or impact duty demand firm rubber-to-metal restraint with minimal deflection. At 75 Shore A, the rubber compound delivers the stiffest response in the FB70 series, prioritising positional control over compliance, which makes this bush the correct selection wherever a component must be held firmly against dynamic or sustained loading rather than isolated from it. The Fig. 2 flanged bush construction bonds rubber between machined inner and outer metal sleeves, producing a joint that accepts loading in shear, compression, or a combination of both. This rubber-to-metal bonded assembly requires no lubrication and is entirely maintenance free, reducing whole-life service costs and supporting prolonged service in environments where access for periodic maintenance is limited or impractical. The flanged outer sleeve provides positive axial location and simplifies installation in housings where a shoulder register is required. With an overall length of 165 mm, a flange diameter of 140 mm, a bore diameter of 46 mm, and an effective rubber length of 60.2 mm, the FB70-75 is dimensioned for heavy-duty pivot bearings, cab mounts, engine mounts, and mechanical linkages subjected to elevated forces. It is proven across demanding sectors including construction and off-highway plant, military and defence, off-road vehicles, agriculture, railway and mass transit, and power generation.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

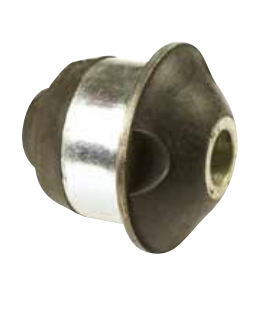

| PRODUCT NUMBER | FB70-45 | FB70-60 | FB70s-45 | FB70s-60 | FB40-45 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 165mm | 165mm | 165mm | 165mm | 100mm |
| Size Range | 101-200mm | 101-200mm | 101-200mm | 101-200mm | 51-100mm |
A. The FB70-75 flanged bush has a maximum load rating of 1,100 kg, making it the highest-capacity variant in the FB70 flanged bush range.
A. The FB70-75 has an overall length (A) of 165 mm, a flange diameter (B) of 140 mm, a bore diameter (D) of 46 mm, an effective rubber length (E) of 60.2 mm, a dimension C of 66 mm, F of 119 mm, and G of 22 mm, to Fig. 2 specification.
A. A 75 Shore A rubber grade carries higher loads with less movement than softer grades. It is the correct choice where a component must be held firmly under heavy, shock, or impact loading rather than isolated from low-level vibration. Softer grades (45 Shore A or 60 Shore A) give greater deflection and better isolation at lower loads.
A. The FB70-75 is suited to heavy-duty pivot bearings, cab mounts, engine mounts, and mechanical linkages across construction and off-highway plant, military and defence, off-road vehicles, agriculture, railway and mass transit, and power generation — particularly where shock loading or sustained high forces are present.
A. No. The rubber-to-metal bonded construction requires no lubrication and is entirely maintenance free, supporting prolonged service life in applications where access for routine maintenance may be restricted.
A. Yes. The same 165 mm flanged bush geometry is available in 45 Shore A (FB70-45) and 60 Shore A (FB70-60). Bespoke options including stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request.
A. Related products include the shorter flanged bush at the same hardness (FB70s-75) and the standard anti-vibration bobbin mount range available in multiple sizes (FB00, FB02, FB10, FB20, FB21, FB40). See the linked variants on the product page.
