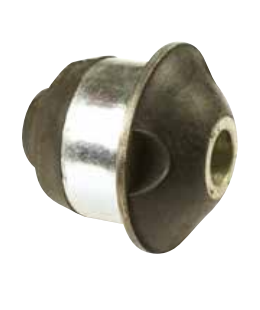

Product Number: FB70-45
At the softer end of the flanged bush range, the FB70-45 is a 165 mm rubber-to-metal bonded bush engineered to deliver maximum vibration isolation and generous deflection where load restraint is secondary to ride quality and noise attenuation. With a maximum load rating of 450 kg and a 45 Shore A rubber compound, this bush is the grade of choice when sensitive equipment, lower-frequency vibration sources, or lighter-duty structures demand the greatest possible isolation performance from a single mounting component. Constructed with rubber bonded between inner and outer metal sleeves, the FB70-45 requires no lubrication and is maintenance free, contributing directly to extended service life under dynamic loading. The soft 45 Shore A compound maximises deflection under load, absorbing vibration energy at lower frequencies where harder grades would transmit rather than attenuate. The flanged design provides a secure, positive location in the bore, and the rubber-to-metal bond delivers high durability across repeated loading cycles. Because softer grades give greater deflection and better isolation at lower load, the FB70-45 suits applications where protecting surrounding structures and improving operator comfort take priority. With key dimensions of 165 mm outer diameter (A), 140 mm flange diameter (B), 66 mm length (C), 46 mm inner diameter (D), 60.2 mm (E), 119 mm (F), and 22 mm (G), the FB70-45 is the largest bush in the FB70 Shore range.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | FB70-60 | FB70-75 | FB70s-60 | FB70s-75 | FB40-45 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 165mm | 165mm | 165mm | 165mm | 100mm |
| Size Range | 101-200mm | 101-200mm | 101-200mm | 101-200mm | 51-100mm |
A. The FB70-45 has a maximum load rating of 450 kg.
A. The FB70-45 has an outer diameter (A) of 165 mm, flange diameter (B) of 140 mm, length (C) of 66 mm, inner diameter (D) of 46 mm, dimension E of 60.2 mm, dimension F of 119 mm, and dimension G of 22 mm.
A. Softer grades such as 45 Shore A give greater deflection under load and provide better vibration isolation, particularly at lower frequencies. They are the appropriate choice when isolation performance and protection of sensitive equipment or surrounding structures take priority over maximum load restraint.
A. The FB70-45 is suited to cab mounts, pivot bearings, and mechanical linkages, as well as vibration isolation duties in construction and off-highway machinery, agricultural equipment, marine installations, power generation plant, and railway and mass transit systems. It may be loaded in shear, compression, or a combination of both.
A. No. The rubber-to-metal bonded construction of the FB70-45 requires no lubrication and is maintenance free throughout its service life.
A. Yes. The FB70 geometry is also available in 60 Shore A (FB70-60) and 75 Shore A (FB70-75). Harder grades carry higher loads with less movement; the 45 Shore A grade provides the greatest deflection and isolation within the series.
A. Yes. The flanged bush family includes the FB00, FB02, FB10, FB20, FB21, and FB40 series. Custom sizes, stainless steel metalwork, and oil-resistant or high-temperature rubber compounds are also available on request.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN).
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
