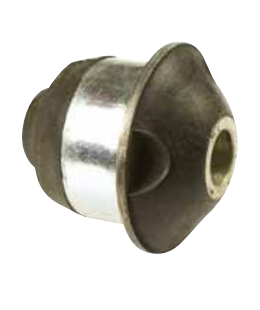

Rated to a maximum load of 400 kg, the FB40-75 is a 100 mm flanged rubber-to-metal bonded bush in 75 Shore A rubber, the firmest grade in the FB40 family and the right choice where high loads, shock inputs, and positional restraint demand minimal deflection. The flanged profile (Fig. 2) presents dimensions of A: 100 mm, B: 90 mm, C: 42 mm, D: 28 mm, E: 22.5 mm, F: 74 mm and G: 19 mm, giving engineers a precise, drop-in envelope for structural mounting positions across heavy-duty equipment. The rubber is bonded directly to the inner and outer metal sleeves, producing a bush that is completely maintenance free and requires no lubrication throughout its service life. This bonded construction absorbs dynamic loads in shear, compression, or a combination of both, protecting surrounding structures from impact energy while extending machinery lifespan. At 75 Shore A, the harder compound carries the highest load within the range with the least movement, making it suited to applications where positional control and shock resistance take priority over isolation compliance. Typical fitment areas include cab mounts on construction and off-highway machines, engine mounts in agricultural and power-generation plant, mechanical linkages subject to heavy cyclic shock, and demanding environments such as railway and mass transit, marine, military and defence, and automotive driveline structures. The same bush geometry is also produced in softer grades for applications where greater deflection or vibration isolation is the primary need.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.49
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | TB60 | TB65 | TBCBA28 | TBCBA33 | TB75 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 63mm | 63mm | 71.1mm | 83.8mm | 50.8mm |
| Deflection | 2 | 2 | 2.5 | 3 | 2.16 |
| Overall Height | 50.8mm | ||||
| Size Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
A. The FB40-75 is rated to a maximum load of 400 kg.
A. The FB40-75 (Fig. 2) has the following dimensions: A: 100 mm, B: 90 mm, C: 42 mm, D: 28 mm, E: 22.5 mm, F: 74 mm, G: 19 mm.
A. At 75 Shore A, this is the firmest grade in the FB40 range. Harder rubber carries higher loads with less deflection, making it suitable for applications requiring positional restraint, shock resistance, and structural control rather than maximum vibration isolation.
A. The FB40-75 is suited to cab mounts on construction and off-highway vehicles, engine mounts in agricultural and power-generation equipment, mechanical linkages under heavy cyclic shock, and demanding sectors including railway and mass transit, marine, military and defence, and automotive driveline.
A. No. The rubber-to-metal bonded construction means the FB40-75 is completely maintenance free and requires no lubrication throughout its service life.
A. Yes. The FB40 profile is also available in 45 Shore A (FB40-45) and 60 Shore A (FB40-60). Related flanged bush profiles include FB00, FB02, FB10, FB20, FB21, and FB41. Larger flanged bushes at 75 Shore A are available as FB66-75 and FB41-75.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional custom sizes, are available on request.
