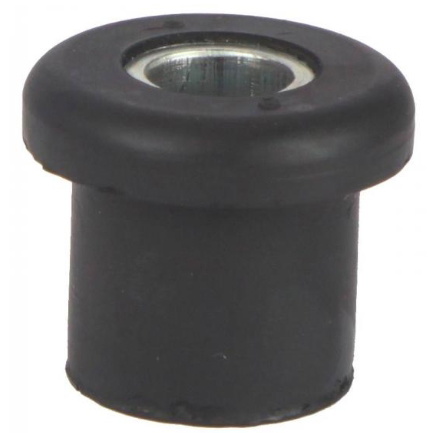

The TB60 is a 63 mm outer diameter T-Bush rated to carry 250 kg with a deflection rate of 2 kg/mm, positioning it squarely in the mid-range of this rubber-bonded anti-vibration bush series. Designed to absorb and isolate dynamic loads across pivot bearings, mechanical linkages and cab mounts, it suits applications where a balance of load capacity and controlled movement is essential. Constructed with rubber bonded between inner and outer metal sleeves, the TB60 delivers high durability under sustained dynamic loading without any requirement for lubrication or scheduled maintenance. The rubber-to-metal bonded construction ensures consistent performance throughout the service life of the installation, protecting surrounding structures from transmitted vibration and improving operator comfort in vehicle and equipment cabins. Key dimensions are: outer diameter A 63 mm, length B 30 mm, inner bore C 16 mm, flange diameter D 41 mm, and flange thickness F 15 mm. The bush may be loaded in shear, compression, or a combination of both, making it adaptable to the varying force directions encountered in construction and off-highway machinery, agricultural equipment, power generation plant, marine installations, and railway and mass transit applications. Custom configurations, including stainless steel metalwork and oil-resistant or high-temperature rubbers, are available on request. This bush is part of a broader range of rubber-bonded IOS and T-Bush sizes. Smaller-capacity variants include TB12, TB25, TB45 and TB50; higher-capacity options are TB65 and TB75. Compact cylindrical bobbin-type alternatives are also available as TBCBA20 and TBCBA24. Supplied as a single bush unit.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Overall length / diameter A (mm) | 63 |
|---|---|
| Width / dimension B (mm) | 30 |
| Height / dimension C (mm) | 16 |
| Outer diameter D (mm) | 41 |
| Fixing hole / dimension F (mm) | 15 |
| Max load (kg) | 250 |
| Deflection (mm) | 2 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | FB10-45 | FB10-60 | FB10-75 | FB20-45 | FB20-60 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 57mm | 57mm | 57mm | 70mm | 70mm |
| Size Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
A. The TB60 has an outer diameter (A) of 63 mm, length (B) of 30 mm, inner bore (C) of 16 mm, flange diameter (D) of 41 mm, and flange thickness (F) of 15 mm.
A. The TB60 is rated to 250 kg with a deflection rate of 2 kg/mm, positioning it as a mid-range bush suited to applications requiring a controlled balance of load-bearing capacity and movement.
A. The TB60 is suited to pivot bearings, mechanical linkages, cab mounts, and engine mounts. It serves industries including construction and off-highway, agriculture, power generation, marine, railway and mass transit, and automotive sectors.
A. No. The rubber-to-metal bonded construction is maintenance free and requires no lubrication throughout its service life.
A. The TB60 may be loaded in shear, compression, or a combination of both, providing flexibility for installations where force direction varies during operation.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubbers, as well as additional and custom sizes, are available on request.
A. Related sizes include TB12, TB25, TB45, TB50, TB65 and TB75. Compact cylindrical bobbin-type alternatives are available as TBCBA20 and TBCBA24.
