Rated to carry loads up to 725 kg, the TBCBA33 is the largest in the T-Bush range and is engineered for the most demanding high-load dynamic applications where structural integrity and sustained vibration control are equally critical. Its rubber-to-metal bonded construction, with rubber vulcanised between a rigid inner sleeve and a matching outer sleeve. Delivers the high deflection stiffness required when operating under heavy compressive and shear loadings characteristic of large plant, heavy vehicle assemblies and industrial machinery. The bush requires no lubrication and is entirely maintenance-free, making it well suited to installations where access for ongoing servicing is restricted or impractical. The rubber-to-metal bond improves machinery lifespan, protects surrounding structures from transmitted shock, and contributes to improved operator comfort in cab or platform environments. Stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request for corrosive or thermally demanding installations. With a 83.8 mm outer diameter (dimension A), 49.3 mm outer sleeve length (B), 20 mm bore (C), 41.1 mm inner sleeve length (D) and 22.4 mm flange (F), the TBCBA33 suits pivot bearings, mechanical linkages, cab mounts, engine mounts, and off-road vehicle subframes. Its deflection rate of 3 kg/mm enables calibrated compliance in applications where controlled movement under load is as important as load-bearing capacity itself. Industries served include construction and off-highway, agriculture, marine, railway and mass transit, military and defence, automotive, and power generation. The T-Bush range extends across a broad spectrum of bore and load capacities.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Overall length / diameter A (mm) | 83.8 |
|---|---|
| Width / dimension B (mm) | 49.3 |
| Height / dimension C (mm) | 20 |
| Outer diameter D (mm) | 41.1 |
| Fixing hole / dimension F (mm) | 22.4 |
| Max load (kg) | 725 |
| Deflection (mm) | 3 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

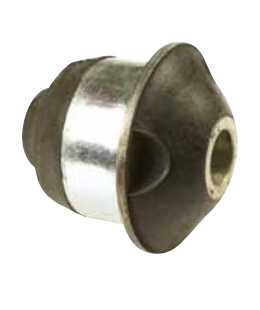

| PRODUCT NUMBER | TBCBA28 | FB66-45 | FB66-60 | FB66-75 | FB20-45 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 71.1mm | 90mm | 90mm | 90mm | 70mm |
| Deflection | 2.5 | ||||
| Size Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
A. The TBCBA33 is rated to a load of 725 kg, making it the highest-load member of the T-Bush range. Its deflection rate is 3 kg/mm.
A. Dimension A (outer diameter) is 83.8 mm, B (outer sleeve length) is 49.3 mm, C (bore) is 20 mm, D (inner sleeve length) is 41.1 mm, and F (flange) is 22.4 mm.
A. The TBCBA33 is suited to pivot bearings, mechanical linkages, cab mounts, engine mounts, and off-road vehicle subframes. It serves industries including construction and off-highway, agriculture, marine, railway and mass transit, military and defence, automotive, and power generation.
A. No. The rubber-to-metal bonded construction is entirely maintenance-free and requires no lubrication throughout its service life.
A. Yes. T-Bushes in this family may be loaded in shear, compression, or a combination of both, depending on the installation geometry.
A. Yes. Stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. The range includes TB12, TB25, TB45, TB50, TB60, TB65, TB75, and TBCBA20, covering a broad spectrum of bore sizes and load capacities below the TBCBA33.
