Carrying a rated load of 250 kg with a deflection rate of 2 kg/mm, the TB65 is the upper-range T-Bush in this family, engineered for applications where elevated dynamic loads demand a robust rubber-to-metal bonded solution. With an outer diameter (A) of 63 mm, inner sleeve diameter (C) of 16 mm, overall length (B) of 44 mm, inner sleeve length (D) of 41 mm, and a flange dimension (F) of 15 mm, this bush delivers the load-bearing capacity and structural rigidity required in demanding service environments. Inner-outer-sleeve construction bonds rubber directly between precision metal sleeves, producing a unit that absorbs shock and attenuates vibration under dynamic loading without any requirement for lubrication. The rubber-to-metal bond ensures high durability over prolonged service life and protects surrounding structures from transmitted forces. The design accommodates loading in shear, compression, or a combination of both, making it suitable across many mounting configurations. At this upper end of the T-Bush load range, the TB65 is particularly suited to cab mounts and engine mounts in off-road vehicles, construction machinery, agricultural equipment, and military and defence platforms where high continuous load and shock resistance are primary requirements. It also finds application in railway and mass transit pivot bearings and mechanical linkages where structural integrity under sustained load is essential. Industries served include marine, power generation, and automotive sectors. The bush is maintenance-free throughout its service life.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Overall length / diameter A (mm) | 63 |
|---|---|
| Width / dimension B (mm) | 44 |
| Height / dimension C (mm) | 16 |
| Outer diameter D (mm) | 41 |
| Fixing hole / dimension F (mm) | 15 |
| Max load (kg) | 250 |
| Deflection (mm) | 2 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|

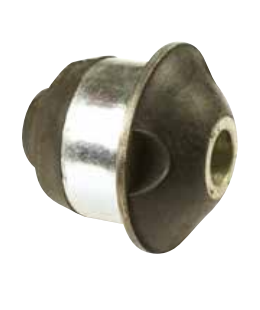

| PRODUCT NUMBER | FB10-45 | FB10-60 | FB10-75 | FB20-45 | FB20-60 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 57mm | 57mm | 57mm | 70mm | 70mm |
| Size Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
A. The TB65 has an outer diameter (A) of 63 mm, overall length (B) of 44 mm, inner sleeve diameter (C) of 16 mm, inner sleeve length (D) of 41 mm, and a flange dimension (F) of 15 mm.
A. The TB65 is rated to 250 kg with a deflection rate of 2 kg/mm.
A. The TB65 is suited to cab mounts, engine mounts, pivot bearings, and mechanical linkages in off-road vehicles, construction machinery, agricultural equipment, railway and mass transit, marine, military and defence, and power generation applications.
A. No. The rubber-to-metal bonded construction is maintenance-free and requires no lubrication throughout its service life.
A. Yes. The bush is designed to accommodate loading in shear, compression, or a combination of both.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. The range includes TB12, TB25, TB45, TB50, TB60, TB75, TBCBA20, and TBCBA24, covering a variety of dimensional and load requirements.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
