Product Number: FB40-60

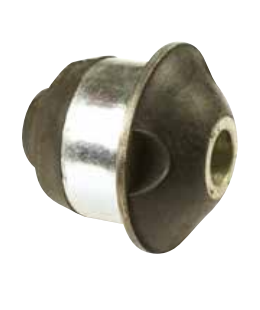

Carrying a maximum load of 350 kg, the FB40-60 is a 100 mm flanged bush moulded to 60 Shore A, the medium hardness grade that balances vibration isolation against structural support for mainstream general-machinery mounting at moderate loads. Where softer grades prioritise deflection and harder grades restrict movement, the 60 Shore A compound sits at the working centre of the range, making it the practical choice when neither extreme isolation nor maximum stiffness is the primary requirement. Rubber-to-metal bonded construction bonds the elastomer between inner and outer metal sleeves, delivering high durability under dynamic loads and a prolonged service lifespan. Because the rubber is fully bonded rather than mechanically retained, the assembly requires no lubrication and is entirely maintenance free. The bush can be loaded in shear, compression, or a combination of both, giving engineers flexibility in mounting orientation without penalty to performance or fatigue life. Figure 2 geometry gives the FB40-60 key dimensions of A 100 mm, B 90 mm, C 42 mm, D 28 mm, E 22.5 mm, F 74 mm, and G 19 mm. These proportions suit applications such as pivot bearings and mechanical linkages across construction and off-highway plant, power generation equipment, marine installations, and agricultural machinery where moderate dynamic loads and general-purpose vibration control are the governing design criteria. The 60 Shore A grade also improves operator comfort and protects surrounding structures by absorbing shock loads before they propagate through the chassis or frame.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | TB60 | TB65 | TBCBA28 | TBCBA33 | TB75 |
| Type | Bush | Bush | Bush | Bush | Bush |
| Size | 63mm | 63mm | 71.1mm | 83.8mm | 50.8mm |
| Deflection | 2 | 2 | 2.5 | 3 | 2.16 |
| Overall Height | 50.8mm | ||||
| Size Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
A. The FB40-60 is rated to a maximum load of 350 kg.
A. The FB40-60 is a Figure 2 bush with the following dimensions: A 100 mm, B 90 mm, C 42 mm, D 28 mm, E 22.5 mm, F 74 mm, and G 19 mm.
A. The 60 Shore A medium grade balances vibration isolation against load-bearing support. Softer grades provide greater deflection and better isolation at lower loads, while harder grades carry higher loads with less movement. The 60 Shore A sits at the centre of this range, making it well suited to general-machinery mounting where moderate dynamic loads and a balance of flexibility and support are required.
A. The rubber-to-metal bonded construction allows the FB40-60 to be loaded in shear, compression, or a combination of both, giving flexibility in mounting orientation.
A. No. The bonded rubber construction requires no lubrication and is entirely maintenance free.
A. The FB40-60 is suited to pivot bearings, mechanical linkages, and vibration control mounts across construction and off-highway plant, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications.
A. Yes. A 45 Shore A softer grade is available as the FB40-45 and a 75 Shore A firmer grade as the FB40-75. Further flanged bush geometries include FB00, FB02, FB10, FB20, FB21, and FB41. Stainless steel metalwork, oil-resistant or high-temperature rubber compounds, and custom sizes are also available on request.
