Product Number: 30/24/25WMM20-55
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

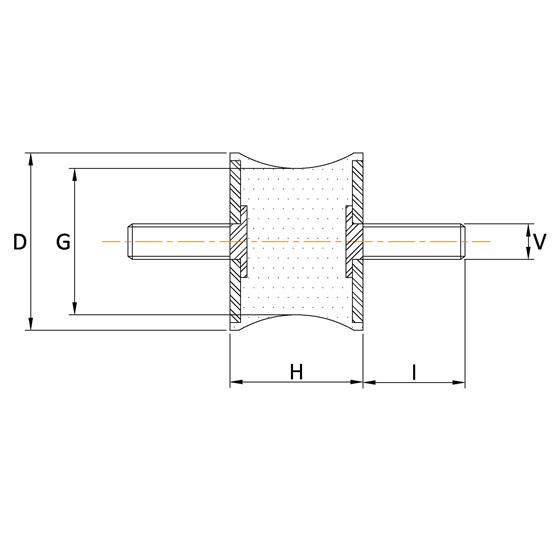

| Outer Dimension (D) | 30mm |
|---|---|
| Inner Dimension (G) | 24mm |
| Height (H) | 25mm |
| Bolt Width (I) | 20mm |
| Thread Size (V) | M8 |
| Max Load (Kg) | - |
| Deflection (mm) | - |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1008WMM06-60 | 1214WMM10-60 | 15/8.5/15WMM10-N60 | 2019WMM18-45 | 2019WMM18-60 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Height | 8mm | 14mm | 15mm | 19mm | 19mm |
| Deflection | - | - | 2.1 | 2.5 | 2.5 |
| Thread | M3 | M4 | M4 | M6 | M6 |

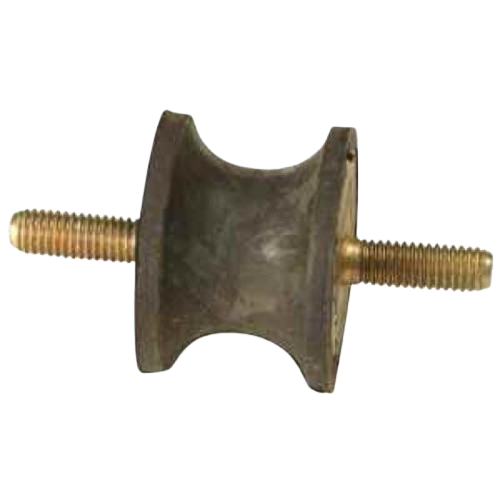

A. This mount has an outer diameter (D1) of 30mm, a waist diameter (D2) of 24mm, a height (H) of 25mm, an M8 thread (d), and a stud length (L) of 20mm.
A. The mount may be loaded in shear, compression, or a combination of both, making it adaptable to a variety of installation configurations.
A. It is suitable for industrial machinery and equipment, generator sets, diesel engines, air-conditioning units, exhaust mountings, and instrument mountings, among other general-machinery applications.
A. Industries served include power generation, construction and off-highway, agriculture, marine, railway and mass transit, automotive, and military and defence.
A. The mount uses rubber-to-metal bonded construction, in which the rubber element is vulcanised directly to the metal threaded studs for a secure, durable assembly.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes.
