Product Number: 2520WMM18-45

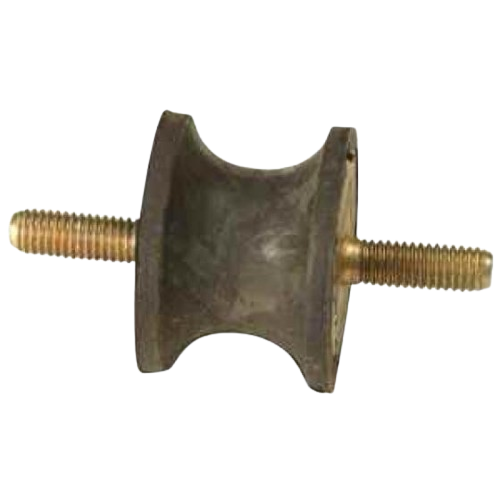

The 2520WMM18-45 is a D1 25 / D2 17 / H 20 mm x 20 mm waisted bobbin mount in 45 Shore rubber, rated to 14.5 kg. It is a low-cost route to cutting vibration and shock on general-purpose industrial equipment.
Loading can be in compression, in shear, or a combination of both, and different thread variations are produced across the range. This size carries a waisted rubber profile between the end fixings: M6 thread, on a D1 25 / D2 17 / H 20 mm mm diameter body 20 mm high. Maximum load is 14.5 kg at 3 mm deflection. Stainless steel metals and oil-resistant or high-temperature rubber compounds are available on request.
The waisted profile distinguishes this family from the parallel-sided cylindrical bobbins.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

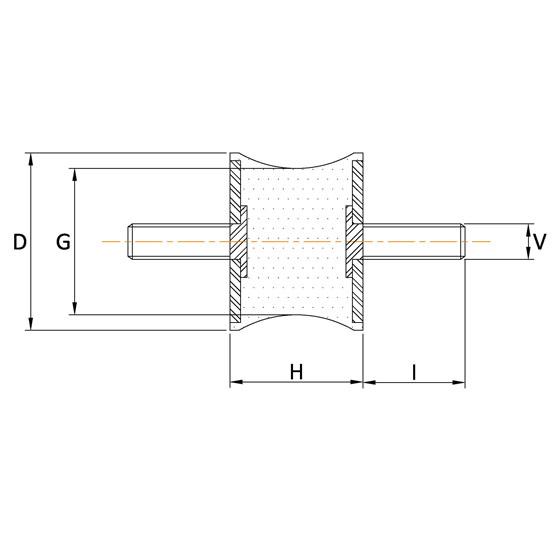

| Outer Dimension (D) | 25mm |
|---|---|
| Inner Dimension (G) | 18mm |
| Height (H) | 20mm |
| Bolt Width (I) | 18mm |
| Thread Size (V) | M6 |
| Max Load (Kg) | 14.5 |
| Deflection (mm) | 3 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2019WMM18-60 | 15/8.5/15WMM10-N60 | HEX1383-60 | HEX1384-45 | 2019WMM18-45 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Height | 19mm | 15mm | 19mm | 26mm | 19mm |
| Deflection | 2.5 | 2.1 | 1.2 | 2 | 2.5 |
| Thread | M6 | M4 | M8 | M8 | M6 |
A. Fit is dimensional rather than machine-specific - match a D1 25 / D2 17 / H 20 mm mm diameter body, 20 mm height and M6 thread against your equipment. Search PartsForMachines by the AV part number or these dimensions, or WhatsApp our team to confirm suitability.
A. 14.5 kg maximum at 3 mm deflection.
A. Yes - bobbin mounts can be used in shear or compression or a combination of both; they should not be put into tension.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. WhatsApp us on 07754 288583 with photos of the item and packaging.
