Product Number: UU1482-40
Engineered for lighter and sensitive installations where maximum vibration isolation takes priority over load restraint, the UU Shear Mount 40 Shore A (UU1482-40-40) delivers a rated maximum load of 43 kg with an 8.0 mm deflection at 40 Shore A hardness, figures that reflect the pronounced movement and superior low-frequency isolation characteristic of this soft grade. Dimensioned at 60 mm (A) × 50 mm (B) × 43 mm (C) with a 19 mm bore (D), 30 mm (E), 17 mm (F), and 10 mm G & H, this compact mount is well suited to instruments, electronics, and light equipment where protecting sensitive components from vibration is the primary concern. Rubber-to-metal bonded construction gives the mount its structural integrity while the 40 Shore A rubber element provides the compliance needed to absorb lower-frequency excitations effectively. At this soft grade, deflection is greater and isolation efficiency is higher than firmer grades carry, a deliberate characteristic that benefits lightweight assemblies subject to low-amplitude vibration inputs. Custom configurations in stainless steel metals and oil-resistant or high-temperature rubbers, as well as additional sizes, are available on request. Applications span a broad range of industry sectors, including construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence. The mount may be loaded in shear, compression, or a combination, and its use improves machinery lifespan, protects surrounding structures, and improves operator comfort, particularly relevant where sensitive instruments or electronics are mounted in vibration-prone environments.
UU Shear Mounts are designed to load the rubber in shear, thereby providing a soft vertical spring rate. This allows for an excellent level of isolation. These anti-vibration mounts are generally produced in natural rubber to ensure optimum performance.
Applications include low-speed machines, fans, and small generators. They are equally suitable for the protection of instruments and apparatus from surrounding shock and vibration.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

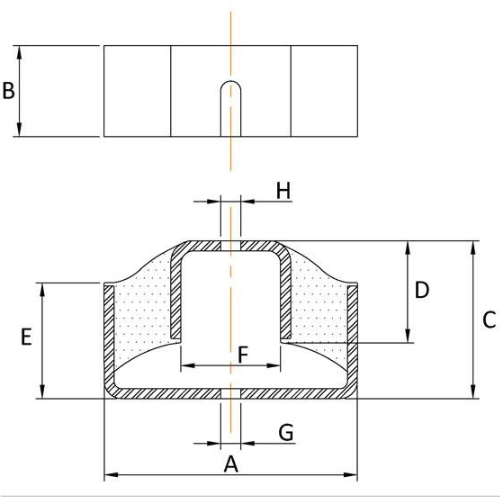

| Base Dimension (A) | 60mm |
|---|---|
| Outer Groove Width (B) | 50mm |
| Overall Heigth (C) | 43mm |
| Rubber Section Height (D) | 19mm |
| Flange Thickness (E) | 30mm |
| Rubber Section Inner Dimension (F) | 17mm |
| Bolt Hole Dimension (G/H) | 10mm |
| Max Load (kg) | 43 |
| Deflection (mm) | 8 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AM47-45 | AM47-60 | AM54-60 | GM09 | GM12 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 47mm | 47mm | 54mm | 7.2mm | 9.3mm |
| Deflection | 5 | 9 | |||
| Size Range | 26-50mm | ||||
| Thread | M8 | M8 | M8 | M3 | M4 |
A. The mount measures 60 mm (A) × 50 mm (B) × 43 mm (C), with a 19 mm bore (D), 30 mm (E), 17 mm (F), and 10 mm G & H. The maximum load rating is 43 kg, with a deflection of 8.0 mm.
A. At 40 Shore A, the rubber element is softer, providing greater deflection (8.0 mm rated) and more effective isolation at lower frequencies and lighter loads. This grade prioritises isolation efficiency over load restraint, making it well suited to instruments, electronics, and other sensitive or lightweight equipment.
A. The mount may be loaded in shear, compression, or a combination of both, offering flexibility in installation orientation depending on the application.
A. The mount is suited to a wide range of industries including construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. Yes. Stainless steel metal components and oil-resistant or high-temperature rubbers, as well as additional and custom sizes, are available on request.
A. Yes. Related variants include the UU100-series (UU100-40, UU100-60, UU100-70) and the UU1479 and UU1480 series (UU1479-40, UU1479-50, UU1479-60, UU1480-40, UU1480-50), covering different geometries and hardness grades to suit varied load and isolation requirements.
