Product Number: GM12
Variations

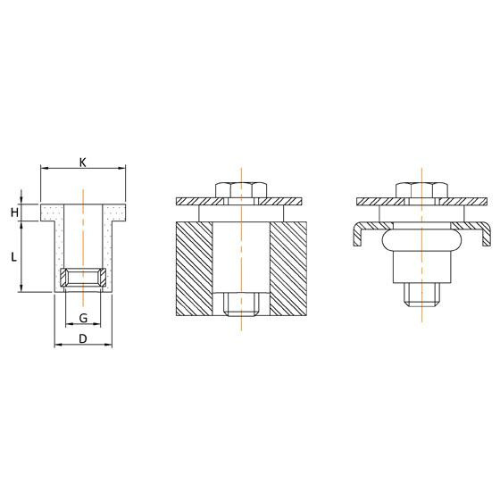

The GM12 is a compact rubber-to-metal bonded instrument mount dimensioned at 9.3 mm diameter with an M4 thread, designed to provide vibration isolation for sensitive instruments, electronics and light equipment operating within its lower load range. At 9.3 mm across (D) with a body length of 11.5 mm (L), a flange diameter of 12 mm (K), a height of 3 mm (H) and an M4 fixing thread (G), this mount suits confined mounting envelopes where space and weight are primary constraints. The rubber-to-metal bonded construction is central to this mount's performance, allowing it to absorb vibration energy in shear, compression or a combination of both load directions without mechanical fasteners between the rubber and metal elements. For sensitive items where excessive movement must be avoided, this bonded arrangement ensures controlled deflection and consistent isolation across the service life of the fitting. Applications span a broad range of industries where lightweight, low-load vibration control is required: construction and off-highway equipment, agricultural machinery, power generation plant, marine installations, railway and mass transit vehicles, automotive assemblies, and military and defence platforms. The mount is particularly well suited to protecting instruments and electronic components mounted in environments subject to continuous background vibration. The GM12 sits at the lower end of the instrument and general mounting range. Companion variants covering alternative dimensional and load envelopes are available as GM09, GM15, GM18 and GM24, refer to those listings to match the appropriate size and thread to your application requirements.
The Grommet mountings are a low-cost anti-vibration fastening method, suitable for use in all types of applications. Simple to install and effective at isolating high-frequency vibration, Grommet mountings are an ideal solution.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Base Dimension (D) | 9.3mm |
|---|---|
| Flange Dimension (K) | 12mm |
| Total Height (L) | 11.5mm |
| Flange Thickness (H) | 3mm |
| Thread Size (G) | M4 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AM47-45 | AM47-60 | AM54-60 | HNG-lower | HNG-upper |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 47mm | 47mm | 54mm | 96mm | 96mm |
| Deflection | 5 | 9 | |||
| Size Range | 26-50mm | 51-100mm | 51-100mm | ||
| Thread | M8 | M8 | M8 | M8 | M8 |
A. The GM12 has an outer diameter (D) of 9.3 mm, a flange diameter (K) of 12 mm, a body length (L) of 11.5 mm, a height (H) of 3 mm, and an M4 fixing thread (G).
A. The GM12 is designed for instruments, electronics and light equipment where vibration isolation of sensitive items is required, operating within a lower load range.
A. The GM12 may be loaded in shear, compression, or a combination of both, giving flexibility in how it is oriented within an assembly.
A. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications.
A. Yes — the GM12 uses rubber-to-metal bonded construction, which provides a secure and consistent connection between the rubber and metal elements without additional mechanical fasteners between them.
A. Yes — companion variants are available as GM09, GM15, GM18 and GM24, covering alternative dimensional and load envelopes to suit different mounting requirements.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
