Product Number: GM09
Variations
At 7.2 mm diameter, GM09 is the smallest mount in the instrument and general mounting range, purpose-built for vibration isolation of lightweight instruments, electronics and light equipment operating at the lower end of the load spectrum. Its compact form factor makes it the natural choice where space is at a premium and the priority is protecting sensitive items from vibration rather than carrying substantial structural loads. Constructed with a rubber-to-metal bonded design, GM09 offers dependable isolation performance in a geometry suited to shear, compression or combined loading. The softer rubber grade characteristic of this size band delivers greater deflection under load, translating to more effective isolation at low force levels, a direct benefit for delicate electronics and precision instrumentation that cannot tolerate transmitted vibration. With dimensions D 7.2 mm, K 9 mm, L 9 mm and H 2.5 mm, and an M3 thread (G), the mount integrates cleanly into instrument panels, control enclosures and light-duty assemblies across a wide spread of industries including construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications. Beyond isolation, the rubber-to-metal bond contributes to improved machinery lifespan and protection of surrounding structures. Custom configurations including stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request. Additional sizes in the instrument and general mounting range are available: GM12, GM15, GM18 and GM24. GM09 is supplied as a single mount. No warranty information is stated for this product. Manufactured in the UK.
The Grommet mountings are a low-cost anti-vibration fastening method, suitable for use in all types of applications. Simple to install and effective at isolating high-frequency vibration, Grommet mountings are an ideal solution.
Typical applications include:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

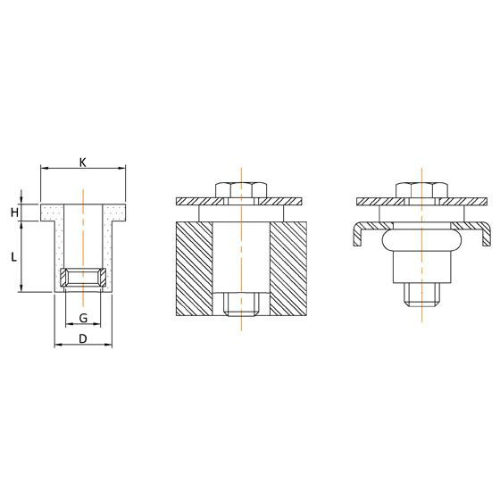

| Base Dimension (D) | 7.2mm |
|---|---|
| Flange Dimension (K) | 9mm |
| Total Height (L) | 9mm |
| Flange Thickness (H) | 2.5mm |
| Thread Size (G) | M3 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AM47-45 | AM47-60 | AM54-60 | HNG-lower | HNG-upper |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 47mm | 47mm | 54mm | 96mm | 96mm |
| Deflection | 5 | 9 | |||
| Size Range | 26-50mm | 51-100mm | 51-100mm | ||
| Thread | M8 | M8 | M8 | M8 | M8 |
A. The GM09 has a diameter (D) of 7.2 mm, K dimension of 9 mm, L dimension of 9 mm, height (H) of 2.5 mm, and an M3 thread (G).
A. The GM09 is designed for vibration isolation of instruments, electronics and light equipment — applications where protecting sensitive items from transmitted vibration is the primary requirement.
A. The mount may be loaded in shear, compression or a combination of both, providing flexibility in how it is integrated into an assembly.
A. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubbers, as well as additional and custom sizes, are available on request.
A. Additional sizes include GM12, GM15, GM18 and GM24, covering a broader range of load and dimensional requirements.
