Product Number: AM47-60

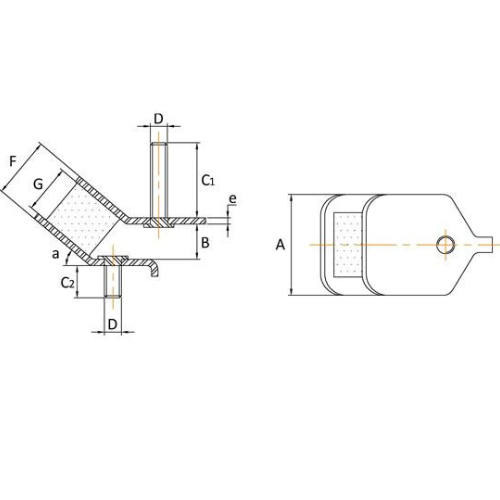

With a rated maximum load of 15 kg, the AM47-60 is a 47 mm angle mounting with M8 thread and 60 Shore A rubber hardness, the mid-range hardness grade in this geometry, engineered to balance vibration isolation against structural support across a broad spread of general-machinery applications. Where lighter-duty grades prioritise deflection for sensitive equipment and firmer grades are chosen primarily for high-load restraint, this 60 Shore A specification sits at the practical centre point: it carries moderate loads without excessive movement while still delivering meaningful isolation for the equipment it supports. Constructed with rubber-to-metal bonded technology, the AM47-60 combines durability with consistent performance in shear, compression, or combined loading configurations. Key dimensions are: overall width (A) 47 mm, height (B) 17 mm, thread (D) M8, face dimensions C1 35 mm and C2 15 mm, wall thickness (e) 3 mm, and mounting angle (a) 40°. Spring dimensions F 29 mm and G 23.0 mm complete the dimensional profile. The medium hardness grade is particularly well suited to applications where machinery generates moderate vibration loads and some movement compliance is desirable, without the high deflection of a softer mount. This angle mounting is drawn from a family designed to serve industries including construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence. The rubber-to-metal bonded build contributes to extended machinery lifespan, protection of surrounding structures, and improved operator comfort.
Utilizing the rubber in shear-compression, the most efficient and effective way to use rubber, the Angle Mountings, when installed diametrically opposed, provide high levels of vibration isolation whilst controlling the roll frequency of the machine.
Ideal for applications such as:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Overall Length (A) | 47mm |
|---|---|
| Top Flange Thickness (B) | 17mm |
| Thread Size (D) | M8 |
| Upper Tube Section Height (C1) | 35mm |
| Lower Tube Section Height (C2) | 15mm |
| Tube Wall Thickness (e) | 3mm |
| Reinforced Section Width (a) | 40?mm |
| Inclincation Angle (F) | 29mm |
| Flange Base Width (G) | 23mm |
| Maximum Load (kg) | 15 |
| Deflection (mm) | 5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AM47-45 | GM09 | GM12 | GM15 | GM18 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 47mm | 7.2mm | 9.3mm | 10.2mm | 12.7mm |
| Size Range | 26-50mm | ||||
| Thread | M8 | M3 | M4 | M5 | M6 |
A. The AM47-60 is rated to a maximum load of 15 kg. This figure applies to the 60 Shore A medium-hardness grade at 47 mm overall width with M8 thread.
A. The AM47-60 has an overall width (A) of 47 mm, height (B) of 17 mm, thread (D) M8, face dimensions C1 35 mm and C2 15 mm, wall thickness (e) 3 mm, mounting angle (a) 40°, and spring dimensions F 29 mm and G 23.0 mm.
A. At 60 Shore A, this mount sits in the medium hardness band. Softer grades give greater deflection and better isolation at lower loads; harder grades carry higher loads with less movement. The 60 Shore A grade provides a practical balance — carrying moderate loads while retaining useful isolation compliance — making it appropriate for a broad range of general-machinery mounting tasks.
A. This angle mounting may be loaded in shear, compression, or a combination of both, as confirmed by the product family specification.
A. The AM47-60 is designed to serve construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications. It is intended for machinery and equipment generating moderate vibration loads where a balance of support and isolation compliance is required.
A. Yes. Stainless steel metalwork, oil-resistant rubbers, and high-temperature rubbers are available on request, as are additional and custom sizes beyond the standard range.

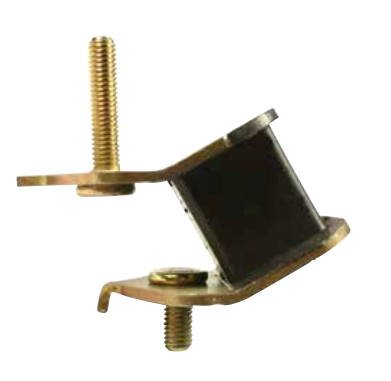

A. The AM47-60 is the smallest in the angle mount range at 47 mm. It is available in a softer 45 Shore A grade (AM47-45) for lighter isolation duty, and a larger 54 mm angle mount (AM54) is available for applications requiring greater load capacity. The L20-2 family offers a bobbin mount geometry as an alternative configuration.
