Product Number: AM54-60

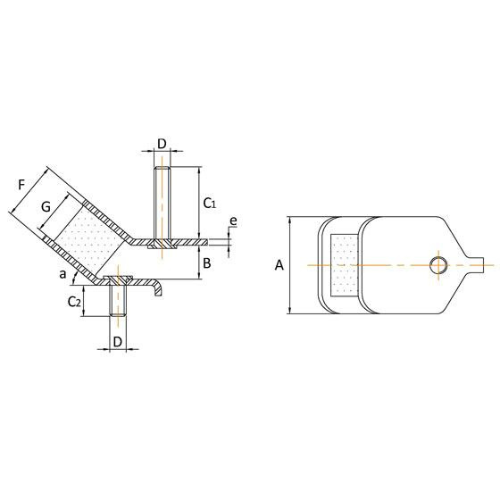

Carrying a maximum load of 90 kg, the AM54-60 is the largest mount in the angle mounting range and is engineered to handle the heavier demands of high-load and shock-duty applications where a balanced response between deflection and structural support is essential. At 60 Shore A, this medium-grade rubber delivers the broad middle ground of the AM54 geometry: enough compliance to attenuate vibration effectively, yet sufficient stiffness to restrain equipment under sustained or intermittent shock loading without excessive movement. Rubber-to-metal bonded construction ensures that the elastomeric element and steel hardware act as a unified assembly, resisting the delamination and creep that can compromise isolation performance over time. The mount may be loaded in shear, compression, or a combination of both, giving engineers the flexibility to orient the unit to suit the dominant vibration axis of the application. Key dimensions are: A 54 mm, B 19 mm, thread D M8, C1 35 mm, C2 15 mm, flange thickness e 3 mm, angle a 40°, F 37 mm, and G 31.0 mm. At this load capacity and hardness grade, the AM54-60 is well suited to plant, machinery and mobile equipment operating in demanding environments. Industries served by this mounting family include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence. By absorbing transmitted vibration, the mount improves machinery lifespan, protects surrounding structures, and contributes to operator comfort.
Utilizing the rubber in shear-compression, the most efficient and effective way to use rubber, the Angle Mountings, when installed diametrically opposed, provide high levels of vibration isolation whilst controlling the roll frequency of the machine.
Ideal for applications such as:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Overall Length (A) | 54mm |
|---|---|
| Top Flange Thickness (B) | 19mm |
| Thread Size (D) | M8 |
| Upper Tube Section Height (C1) | 35mm |
| Lower Tube Section Height (C2) | 15mm |
| Tube Wall Thickness (e) | 3mm |
| Reinforced Section Width (a) | 40?mm |
| Inclincation Angle (F) | 37mm |
| Flange Base Width (G) | 31mm |
| Maximum Load (kg) | 90 |
| Deflection (mm) | 9 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AM47-45 | GM09 | GM12 | GM15 | GM18 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 47mm | 7.2mm | 9.3mm | 10.2mm | 12.7mm |
| Size Range | 26-50mm | ||||
| Thread | M8 | M3 | M4 | M5 | M6 |
A. The AM54-60 has a maximum load rating of 90 kg, making it the highest-load option in the AM54 angle mounting family.
A. The principal dimensions are: A 54 mm, B 19 mm, thread D M8, C1 35 mm, C2 15 mm, flange thickness e 3 mm, angle a 40°, F 37 mm, and G 31.0 mm.
A. A 60 Shore A rating is a medium hardness grade. It provides a balance between vibration attenuation and load-carrying stiffness, making it appropriate for the broad middle ground of machinery mounting — including high-load plant and mobile equipment subject to sustained or shock loading.
A. The AM54-60 may be loaded in shear, compression, or a combination of both, allowing the orientation to be matched to the dominant vibration axis of the application.
A. The angle mounting family serves construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications. The mounts improve machinery lifespan, protect surrounding structures, and improve operator comfort.
A. Yes — stainless steel hardware and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
A. The AM54-60 is the largest mount in the range. The AM54-45 (SKU: AM54-45) offers the same 54 mm body in a softer 45 Shore A grade for greater deflection at lower loads. The AM47 (SKU: AM47) provides a smaller 47 mm body geometry, and the L20-2 (SKU: L20-2) is a related low-profile mounting design.
A. The AM54-60 uses rubber-to-metal bonded construction, in which the elastomeric element is chemically bonded to the steel hardware to form a single unified assembly, resisting delamination and creep in service.
