Product Number: UU1481-60
Balancing vibration isolation with structural support, the UU1481-60-60 is a 60 Shore A UU shear mounting designed for the broad middle ground of machinery and equipment installation. With a 70 mm A dimension, 25 mm B, and a maximum load rating of 28 kg with 4.5 mm deflection, this mount suits applications where neither maximum compliance nor maximum stiffness is required, delivering dependable, balanced performance across many mounting conditions. Constructed with rubber-to-metal bonded technology, the mount may be loaded in shear, compression, or a combination of both, offering installation flexibility across varied equipment orientations. The medium 60 Shore A rubber grade strikes a considered balance: softer than firm-grade variants for improved isolation of low-to-moderate vibration, yet with sufficient load capacity to provide steady support where light structural restraint is also needed. This makes it well suited to instruments, electronics, and light equipment installations requiring a measured compromise between movement damping and positional control. The UU shear mounting geometry serves industries including construction and off-highway, power generation, marine, railway and mass transit, agriculture, and automotive applications. By absorbing and controlling vibration at the mount point, it contributes to improved machinery lifespan, protects surrounding structures, and enhances operator comfort. Custom options including stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, as are additional sizes beyond the standard range. This 60 Shore A variant sits alongside alternative hardness grades within the UU shear mounting family.
UU Shear Mounts are designed to load the rubber in shear, thereby providing a soft vertical spring rate. This allows for an excellent level of isolation. These anti-vibration mounts are generally produced in natural rubber to ensure optimum performance.
Applications include low-speed machines, fans, and small generators. They are equally suitable for the protection of instruments and apparatus from surrounding shock and vibration.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

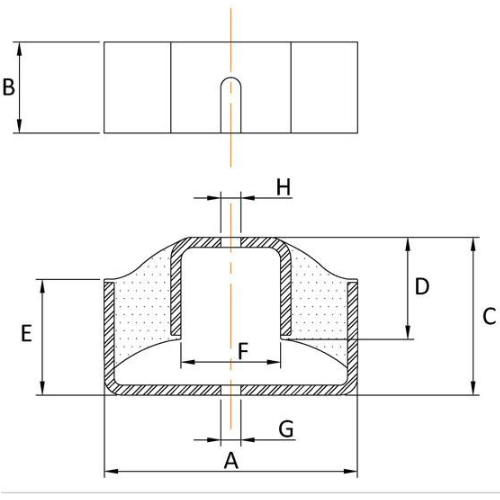

| Base Dimension (A) | 70mm |
|---|---|
| Outer Groove Width (B) | 25mm |
| Overall Heigth (C) | 62mm |
| Rubber Section Height (D) | 37mm |
| Flange Thickness (E) | 43mm |
| Rubber Section Inner Dimension (F) | 25mm |
| Bolt Hole Dimension (G/H) | 10mm |
| Max Load (kg) | 28 |
| Deflection (mm) | 4.5 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AM47-45 | AM47-60 | AM54-60 | GM09 | GM12 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 47mm | 47mm | 54mm | 7.2mm | 9.3mm |
| Deflection | 5 | 9 | |||
| Size Range | 26-50mm | ||||
| Thread | M8 | M8 | M8 | M3 | M4 |
A. The UU1481-60-60 has an A dimension of 70 mm, B of 25 mm, C of 62 mm, D of 37 mm, E of 43 mm, F of 25 mm, and G & H of 10 mm. Its maximum load rating is 28 kg with a deflection of 4.5 mm.
A. The 60 Shore A grade places this mount in the medium range — softer grades offer greater deflection and better isolation at lower loads, while harder grades carry higher loads with less movement. At 60 Shore A, the UU1481-60-60 balances isolation capability with load support, making it suitable for the broad middle ground of machinery and instrument mounting.
A. This mount may be loaded in shear, compression, or a combination of both, providing flexibility across different equipment orientations and installation configurations.
A. The UU1481-60-60 is designed for instruments, electronics, and light equipment requiring vibration isolation. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, as are additional and custom sizes beyond the standard range.
A. The range includes the UU100-40, UU100-60, and UU100-70, as well as the UU1479-40, UU1479-50, UU1479-60, UU1480-40, and UU1480-50, offering a selection of hardness grades and geometries to match different load and isolation requirements.
