Product Number: UU1481-50
Balancing isolation performance with structural support, the UU1481-50-50 is a 50 Shore A medium-grade UU shear mounting designed for the broad middle ground of machinery mounting, where neither excessive movement nor rigid restraint is appropriate. With a maximum load rating of 25 kg and a deflection of 7.0 mm, this grade occupies the measured centre of the range, making it well suited to instruments, electronics and light equipment that require dependable vibration isolation without the greater compliance of a softer mount. Constructed with rubber-to-metal bonded technology, the mount may be loaded in shear, compression or a combination of both, offering installation flexibility across a variety of orientations. The medium 50 Shore A hardness delivers a calibrated balance: sufficient load capacity for general-purpose light equipment, while retaining enough compliance to attenuate vibration and protect sensitive components. Key dimensions are 70 mm (A), 25 mm (B), 62 mm (C), 37 mm (D), 43 mm (E), 25 mm (F), and 10 mm for both G and H. This mount serves industries including construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence. It improves machinery lifespan, protects surrounding structures and improves operator comfort, particularly where vibration management across many operating conditions is required.
UU Shear Mounts are designed to load the rubber in shear, thereby providing a soft vertical spring rate. This allows for an excellent level of isolation. These anti-vibration mounts are generally produced in natural rubber to ensure optimum performance.
Applications include low-speed machines, fans, and small generators. They are equally suitable for the protection of instruments and apparatus from surrounding shock and vibration.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

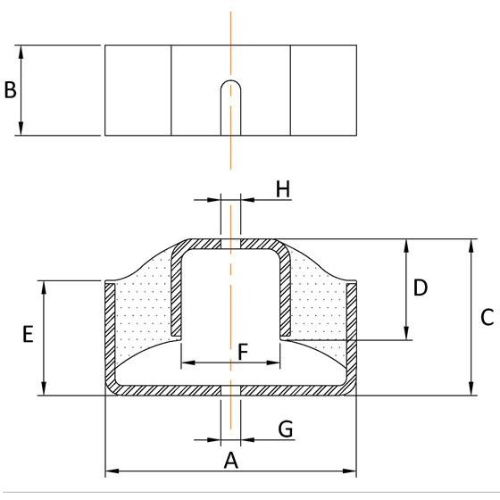

| Base Dimension (A) | 70mm |
|---|---|
| Outer Groove Width (B) | 25mm |
| Overall Heigth (C) | 62mm |
| Rubber Section Height (D) | 37mm |
| Flange Thickness (E) | 43mm |
| Rubber Section Inner Dimension (F) | 25mm |
| Bolt Hole Dimension (G/H) | 10mm |
| Max Load (kg) | 25 |
| Deflection (mm) | 7 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AM47-45 | AM47-60 | AM54-60 | GM09 | GM12 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 47mm | 47mm | 54mm | 7.2mm | 9.3mm |
| Deflection | 5 | 9 | |||
| Size Range | 26-50mm | ||||
| Thread | M8 | M8 | M8 | M3 | M4 |
A. The UU1481-50-50 is rated to a maximum load of 25 kg with a deflection of 7.0 mm at that load.
A. The mount measures 70 mm (A), 25 mm (B), 62 mm (C), 37 mm (D), 43 mm (E), 25 mm (F), and 10 mm for both G and H dimensions.
A. A 50 Shore A rating places this mount in the medium range — it provides a balance of load support and vibration isolation, making it suitable for general-purpose light equipment where neither maximum compliance nor maximum rigidity is required. Softer grades offer greater deflection at lower loads; harder grades carry higher loads with less movement.
A. The UU1481-50-50 may be loaded in shear, compression, or a combination of both, giving flexibility in installation orientation.
A. This mount is designed for instruments, electronics and light equipment requiring vibration isolation. Industries served include construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence.
A. Yes — the range is available in additional hardness grades (see sibling SKUs including UU100-40, UU100-60, UU100-70, UU1479-40, UU1479-50, UU1479-60, UU1480-40 and UU1480-50). Stainless steel metalwork, oil-resistant rubbers, high-temperature rubbers, and additional or custom sizes are also available on request.
