Product Number: UU20-40

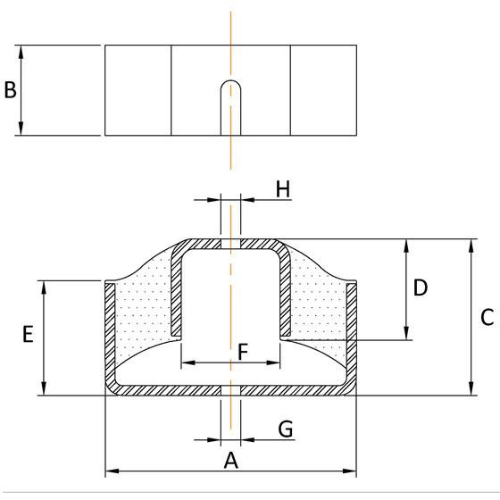

Where low-frequency vibration isolation takes priority over restraint, the UU20-40*-40 UU Shear Mounting delivers maximum compliance in a compact rubber-to-metal bonded form factor. Rated to a maximum load of 20 kg with a deflection of 6.0 mm, this 40 Shore A soft-grade unit is purpose-built for lightweight instruments, sensitive electronics, and light equipment where the mount must move freely under load to absorb vibration rather than transmit it. The high deflection-to-load ratio is the defining characteristic of this grade: softer rubber yields greater movement, and greater movement means better isolation at the lower excitation frequencies typical of delicate installations. The rubber-to-metal bonded construction allows the mount to accept loading in shear, compression, or a combination of both, providing flexibility in how it is integrated into a design. Key dimensions are: A 90 mm, B 20 mm, C 50 mm, D 34 mm, E 34 mm, F 39 mm, and G & H 10 mm. Custom variants in stainless steel metals and oil-resistant or high-temperature rubbers, as well as additional sizes, are available on request. This mount belongs to the instrument and general mountings family, a range of lightweight, low-load anti-vibration solutions serving industries including construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence. The soft 40 Shore A grade is the right choice wherever protecting surrounding structures, extending machinery lifespan, and improving operator comfort depend on maximising isolation rather than stiffness.
UU Shear Mounts are designed to load the rubber in shear, thereby providing a soft vertical spring rate. This allows for an excellent level of isolation. These anti-vibration mounts are generally produced in natural rubber to ensure optimum performance.
Applications include low-speed machines, fans, and small generators. They are equally suitable for the protection of instruments and apparatus from surrounding shock and vibration.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Base Dimension (A) | 90mm |
|---|---|
| Outer Groove Width (B) | 20mm |
| Overall Heigth (C) | 50mm |
| Rubber Section Height (D) | 34mm |
| Flange Thickness (E) | 34mm |
| Rubber Section Inner Dimension (F) | 39mm |
| Bolt Hole Dimension (G/H) | 10mm |
| Max Load (kg) | 20 |
| Deflection (mm) | 6 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AM47-45 | AM47-60 | AM54-60 | GM09 | GM12 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 47mm | 47mm | 54mm | 7.2mm | 9.3mm |
| Deflection | 5 | 9 | |||
| Size Range | 26-50mm | ||||
| Thread | M8 | M8 | M8 | M3 | M4 |
A. This mount has a maximum load rating of 20 kg and a deflection of 6.0 mm. The high deflection relative to load is characteristic of the soft 40 Shore A grade, which prioritises vibration isolation over stiffness.
A. The principal dimensions are: A 90 mm, B 20 mm, C 50 mm, D 34 mm, E 34 mm, F 39 mm, and G & H 10 mm.
A. Softer rubber grades give greater deflection under load and deliver better vibration isolation, particularly at lower frequencies. The 40 Shore A grade is the most compliant in the range and is best suited to lightweight instruments, sensitive electronics, and light equipment where isolation performance matters more than load restraint.
A. The rubber-to-metal bonded construction allows loading in shear, compression, or a combination of both, giving flexibility in mounting orientation and integration.
A. This mount is part of the instrument and general mountings family, serving construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications. It is particularly suited to protecting sensitive instruments and light equipment from vibration.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubbers are available on request, as are additional and custom sizes.
A. Yes — related mounts include UU100-40*, UU100-60*, UU100-70*, UU1479-40, UU1479-50, UU1479-60, UU1480-40, and UU1480-50, covering a wider range of load capacities and stiffness grades.
