Product Number: UU1481-40
Where low-frequency vibration isolation matters more than restraint, the UU Shear Mount UU1481-40-40 delivers the compliance that lighter, sensitive installations demand. Rated to a maximum load of 17 kg with a deflection of 8.0 mm, this 40 Shore A soft-grade mount is purpose-built to absorb vibration at lower load thresholds, making it the right choice where movement under load is a benefit rather than a concern. Constructed with rubber-to-metal bonding, this shear mount can be loaded in shear, compression, or a combination of both. The soft 40 Shore A rubber compound maximises deflection under operational loads, delivering superior vibration isolation for instruments, electronics, and light equipment where the surrounding structures or operator comfort would otherwise suffer. Rubber-to-metal bonded construction helps extend machinery lifespan by decoupling the vibration path between connected components. With an A dimension of 70 mm, B of 25 mm, C of 62 mm, D of 37 mm, E of 43 mm, F of 25 mm, and G & H of 10 mm, this mount suits compact, lightweight installations across many sectors including agriculture, power generation, marine, automotive, construction and off-highway, railway and mass transit, and military and defence applications. Its soft-grade compliance makes it particularly well suited to sensitive instruments and electronics operating in environments where low-frequency vibration isolation is the primary requirement.
UU Shear Mounts are designed to load the rubber in shear, thereby providing a soft vertical spring rate. This allows for an excellent level of isolation. These anti-vibration mounts are generally produced in natural rubber to ensure optimum performance.
Applications include low-speed machines, fans, and small generators. They are equally suitable for the protection of instruments and apparatus from surrounding shock and vibration.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

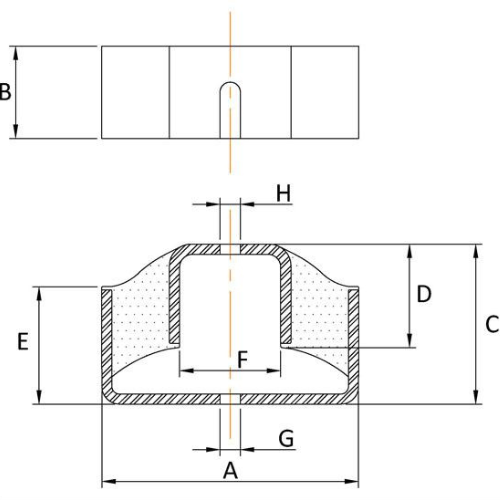

| Base Dimension (A) | 70mm |
|---|---|
| Outer Groove Width (B) | 25mm |
| Overall Heigth (C) | 62mm |
| Rubber Section Height (D) | 37mm |
| Flange Thickness (E) | 43mm |
| Rubber Section Inner Dimension (F) | 25mm |
| Bolt Hole Dimension (G/H) | 10mm |
| Max Load (kg) | 17 |
| Deflection (mm) | 8 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AM47-45 | AM47-60 | AM54-60 | GM09 | GM12 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 47mm | 47mm | 54mm | 7.2mm | 9.3mm |
| Deflection | 5 | 9 | |||
| Size Range | 26-50mm | ||||
| Thread | M8 | M8 | M8 | M3 | M4 |
A. This mount has a maximum load rating of 17 kg and a deflection of 8.0 mm, reflecting the high compliance of its 40 Shore A soft rubber compound.
A. The mount measures: A 70 mm, B 25 mm, C 62 mm, D 37 mm, E 43 mm, F 25 mm, G & H 10 mm.
A. Softer grades give greater deflection under load and better vibration isolation, particularly at lower loads and lower frequencies. They are best suited to instruments, electronics, and light equipment where isolation performance is the priority over load restraint.
A. The mount may be loaded in shear, compression, or a combination of both.
A. The UU1481-40-40 is suitable for use in construction and off-highway, agriculture, power generation, marine, railway and mass transit, automotive, and military and defence applications, particularly where lightweight or sensitive equipment requires vibration isolation.
A. Yes — stainless steel metalwork and oil-resistant or high-temperature rubbers, along with additional and custom sizes, are available on request.
A. Yes — alternative configurations include UU100-40, UU100-60, UU100-70, UU1479-40, UU1479-50, UU1479-60, UU1480-40, and UU1480-50, covering different sizes and Shore hardness grades.
