Product Number: UU1479-50

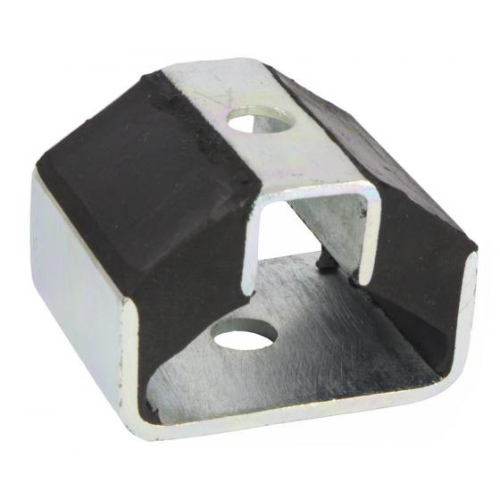

With a rated maximum load of 170 kg with a controlled deflection of 6.0 mm, the UU Shear Mount UU1479-50-50 occupies the broad middle ground of the UU1479 range, delivering the balanced combination of vibration isolation and structural support that 50 Shore A hardness is purpose-built to provide. Where softer grades prioritise isolation at lighter loads and firmer grades are chosen for shock restraint under heavy stress, this medium-grade mount serves the widest spread of general-purpose machinery mounting requirements across demanding operational environments. Constructed with rubber-to-metal bonding, the mount is designed to be loaded in shear, compression, or a combination of both. This versatility suits the broad application set this grade addresses: power generation plant, agricultural machinery, marine installations, and automotive equipment where everyday running loads fall within the 170 kg maximum. The rubber-to-metal bond preserves alignment integrity under sustained service while the 50 Shore A compound flexes sufficiently to attenuate transmitted vibration, reducing stress on surrounding structures and improving operator comfort over extended working periods. Key dimensions are A 86 mm, B 64 mm, C 108 mm, D 76 mm, E 82 mm, F 38 mm, and G & H 16 mm, providing the geometric reference needed to confirm fitment against your existing mounting arrangement. The mount contributes directly to improved machinery lifespan by absorbing cyclical vibration energy before it propagates through the host structure. Stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request for specialist environments.
UU Shear Mounts are designed to load the rubber in shear, thereby providing a soft vertical spring rate. This allows for an excellent level of isolation. These anti-vibration mounts are generally produced in natural rubber to ensure optimum performance.
Applications include low-speed machines, fans, and small generators. They are equally suitable for the protection of instruments and apparatus from surrounding shock and vibration.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

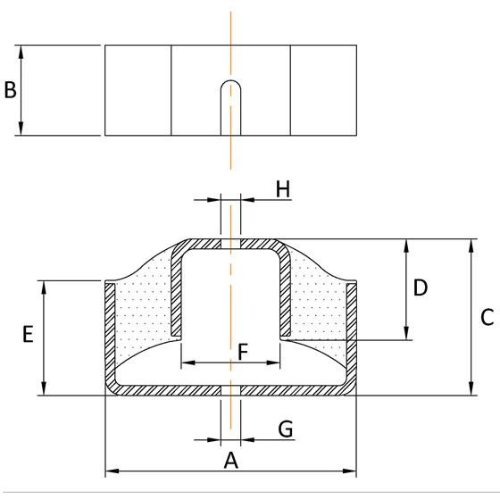

| Base Dimension (A) | 86mm |
|---|---|
| Outer Groove Width (B) | 64mm |
| Overall Heigth (C) | 108mm |
| Rubber Section Height (D) | 76mm |
| Flange Thickness (E) | 82mm |
| Rubber Section Inner Dimension (F) | 38mm |
| Bolt Hole Dimension (G/H) | 16mm |
| Max Load (kg) | 170 |
| Deflection (mm) | 6 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AM47-60 | AM54-60 | GM12 | GM09 | AM47-45 |
| Type | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 47mm | 54mm | 9.3mm | 7.2mm | 47mm |
| Deflection | 5 | 9 | |||
| Size Range | 26-50mm | ||||
| Thread | M8 | M8 | M4 | M3 | M8 |
A. The UU1479-50-50 is rated to a maximum load of 170 kg with a deflection of 6.0 mm, making it suited to general-purpose machinery mounting applications where a balance of support and isolation is required.
A. The key dimensions are: A 86 mm, B 64 mm, C 108 mm, D 76 mm, E 82 mm, F 38 mm, and G & H 16 mm. Always verify these against your existing mounting arrangement before ordering.
A. This mount is designed to be loaded in shear, compression, or a combination of both, providing flexibility across a wide range of mounting configurations.
A. The UU1479-50-50 is appropriate for power generation, agricultural machinery, marine installations, automotive equipment, construction and off-highway plant, railway and mass transit, and military and defence applications where loads fall within the 170 kg rated maximum.
A. At 50 Shore A, this mount sits in the middle of the range. The 40 Shore A grade (UU1479-40) provides greater deflection and better isolation at lower loads; the 60 Shore A grade (UU1479-60) carries higher loads with less movement. The 50 Shore A grade is the general-purpose choice where both isolation and support are required in equal measure.
A. Yes — stainless steel metal components and oil-resistant or high-temperature rubber compounds are available on request, as are additional and custom sizes. Contact us to discuss your specific requirements.
A. Related mounts include UU1479-40 and UU1479-60 in the same geometry, UU1480-40, UU1480-50, and UU1480-60 in a different profile, and smaller UU100-series mounts in 40, 60, and 70 Shore A. See the linked variants on the product page for full details.
