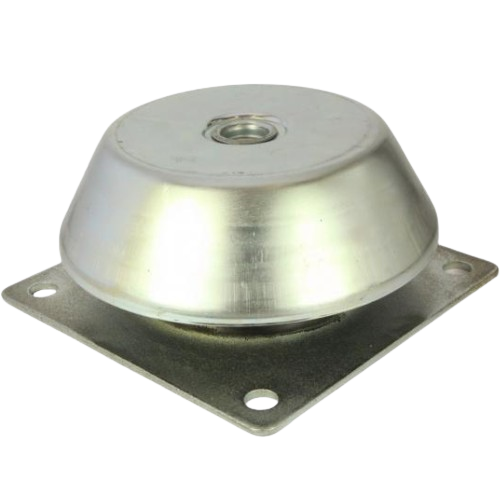

Product Number: SFCM220-45
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Top Outer Dimension (A) | 220mm |
|---|---|
| Overall Height (B) | 105mm |
| Thread Size (P) | M24 |
| Fixing Hole Dimension (F) | 17.5mm |
| Center Distance (CF) | 180mm |
| Base Width (L) | 220mm |
| Base Plate Thickness (S) | 6mm |
| Max Load (kg) | 2500 |
| Deflection (mm) | 10 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Square Flanged Captive Mount - Anti-Vibration, Thread Size M20, Max Load 2000Kg - SFCM180-60
£296.58
£290.76
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | SFCM180-60 | SFCM220HD-60 | SFCM180HD-60 | CTM1445316-9 | CTM1085016-70 |
| Type | Captive Mount | Captive Mount | Captive Mount | Captive Mount | Captive Mount |
| Deflection | 7 | 18 | 14 | 10mm | 3mm |
| Overall Height | 66mm | 105mm | 86mm | ||
| Thread | M20 | M24 | M20 | M16 | M16 |
A. The SFCM220 has an A dimension of 220 mm, a boss dimension (B) of 105 mm, an M24 thread (P), a foot dimension (F) of 17.5 mm, a flange centre dimension (CF) of 180 mm, a body length (L) of 220 mm, and six mounting holes (S).
A. The captive design incorporates an integral overload stop that controls the movement of mounted equipment during transit, together with a failsafe arrangement that governs shock loads and prevents catastrophic failure.
A. The rubber is deployed in shear-compression for optimum performance, providing vibration reduction of up to 95% across all axes.
A. This mount is suited to generating sets, diesel engines, marine engines, construction and plant equipment, pumps and compressors, and industrial and commercial vehicles — in both mobile and static installations.
A. Yes. A metal top cap protects the rubber element against oil, fuel, and contamination, and protective plating is applied to the metalwork to resist corrosion.
A. Yes. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds, as well as additional and custom sizes, are available on request.
A. The range includes SFCM150, SFCM150HD, SFCM160, SFCM180, SFCM180HD, and SFCM220HD, covering a variety of footprint sizes and load characteristics. HD variants are suited to applications requiring better damping of out-of-balance forces.
